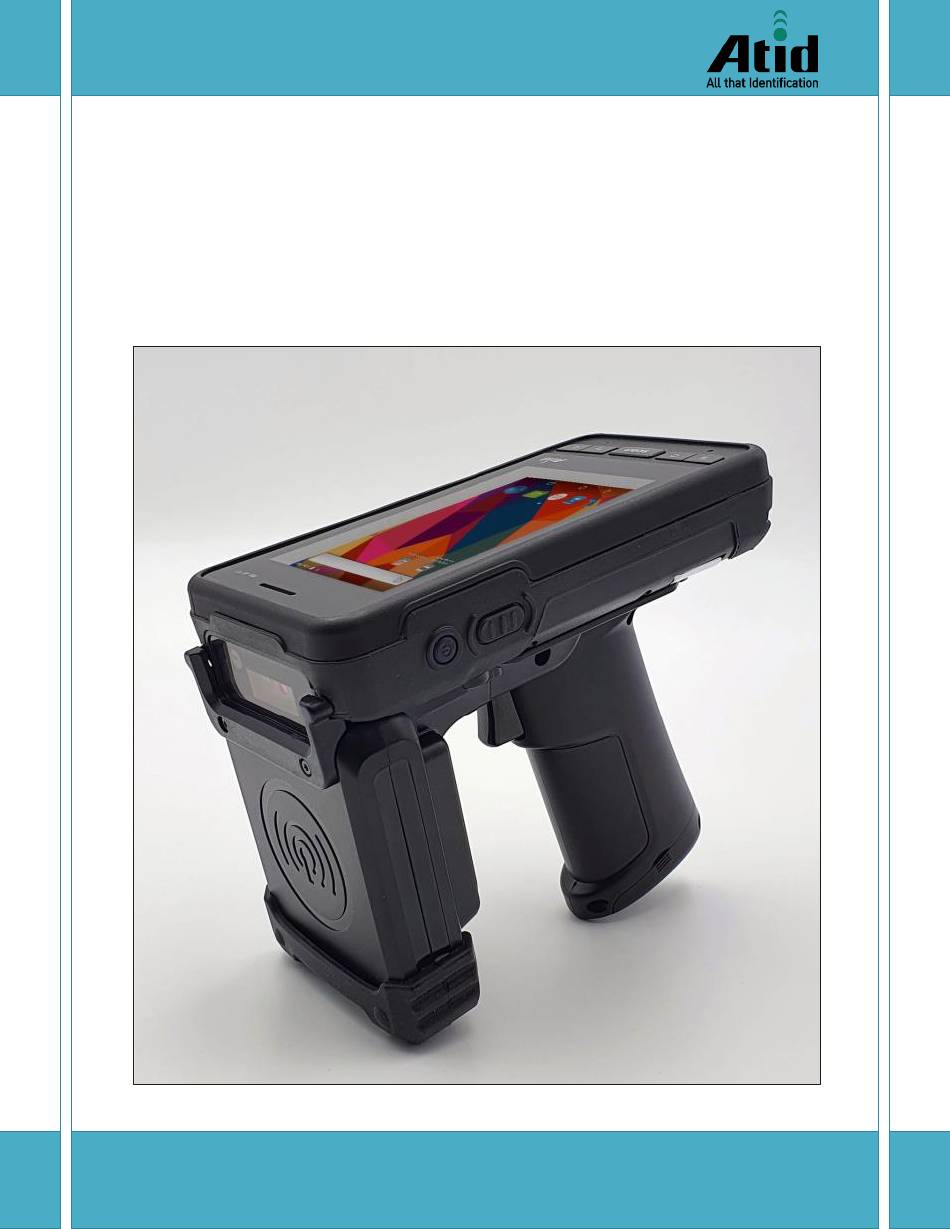

- Page 1 AT911 PLUS USER GUIDE...
-
Page 2: Table Of Contents
3.1 Turn on/off Bluetooth ....................17 4. Use Camera ..........................18 4.1 Use Camera ........................18 5. Use UHF ..........................19 5.1 UHF RFID Program ......................19 Chapter 5. Appendix ........................20 Product Specifications ....................... 20 AT911 PLUS User Guide... -
Page 3: Before You Begin
Before You Begin This user manual is protected by copyright. This manual is published by ATID Co., Ltd. and can only be copied, edited or distributed by ATID. Some contents in the manual may be slightly different from the actual device. -
Page 4: Chapter1. Caution When Using
If smell odors, occurs smoke or noise during use product, immediately disconnect the charger and off the power, then Please contact with customer service center ⚫ If you have any other questions during use, please contact the customer service center AT911 PLUS User Guide... -
Page 5: Chapter 2. Products Compositions

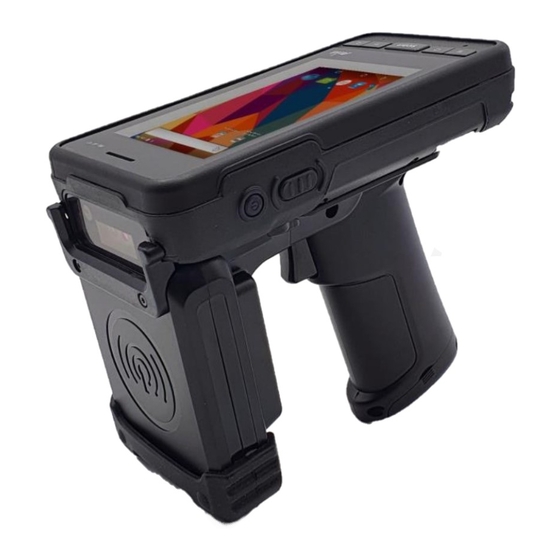

Chapter 2. Products compositions AT911 PLUS, Android OS based device, can support barcode scanner, RFID tag reader, wireless communication modem, camera etc. and can be widely used in a variety of work environments. 1. Package components After opening the product packaging box, check the... -
Page 6: Name Of Each Part
2. Name of each part <Top Side View> Receiver Charge, Wireless Statues LED LCD Touch Screen KEY PAD (Menu, Home, Scan, Back, Search) KEY PAD <Left, Right Side View> Ear Phone Jack Power Key Side Key AT911 PLUS User Guide... - Page 7 <Front View> Camera Barcode Scanner UHF RFID Antenna <Back Side View> USB Synchronization / DC Power Port AT911 PLUS User Guide...
-
Page 8: Chapter3. Basic Functions
These images as below, shows the back bottom of the PDA. Slide the battery latch to the right (UNLOCK side), and then lift the main battery out of the compartment along both sides of groove. Battery Locking Lever AT911 PLUS User Guide... -
Page 9: Charging
(sleep mode). Cancel low power mode (sleep mode) If the power button is pressed when the device is off, the screen will be turned on and the device will be turned on. AT911 PLUS User Guide... -
Page 10: Batter Replacement
[Cold Reset Steps] Push power button until system is reboot. [Result] ⚫ The system will restart. ⚫ The operating system will be loaded again when restarting. AT911 PLUS User Guide... -
Page 11: Use Micro Sd, Sim, Sam Card
Slide the cover of Micro SD card slot to the right to release the lock. Step 4) Step 3) Slide the cover to the left to lock the slot. Place the SD memory card into the slot and close the cover. AT911 PLUS User Guide... -
Page 12: Sim Card Installation
When the SD memory is selected from the File Manager after installing Micro SD memory card, it is shown as below. 3.2 SIM Card Installation Below picture is the screenshot after installing the SIM card. Place and insert the SIM card so that it fits the slot shape. AT911 PLUS User Guide... -
Page 13: System Settings
The volume is set to 80% when it is dispatched. The user can set the different features of sound settings from [Menu] [Settings] [Sound & notification]. -> -> Volumes and sound setting [Menu] -> [Settings] -> [Sound & notification] -> [Multimedia volume] AT911 PLUS User Guide... -
Page 14: Use Keypad
Keypad Function description < > Menu key Home button. < > < > Contains keyEvent values of KEYCODE_SOFT_RIGHT. < > It is used to move back to previous state. < > It is used for searching AT911 PLUS User Guide... -
Page 15: Chapter 4. Use Peripheral Device
Chapter 4. Use Peripheral Device This chapter describes various option modules for use with AT911 PLUS. Please refer to description of necessary option modules and use them. Barcode scanner The barcode scanner of AT911 PLUS can recognize 1D, 2D barcode. -
Page 16: Wlan Connection
AT 911 PLUS device supports TCP/IP network protocol and directly use host computer and TCP/IP in TCP/IP network. When shipping goods, wireless LAN is always set to off Turn Wi-Fi on / Turn Wi-Fi off [Menu] -> [Settings] -> [Wi-Fi] AT911 PLUS User Guide... -
Page 17: Bluetooth
3. Bluetooth The below contents are related to Bluetooth function of AT911 PLUS. AT911 PLUS supports Bluetooth Classic and BLE 4.0 both of them. Turn on/off Bluetooth [Menu] -> [Settings] -> [Bluetooth] AT911 PLUS is visible to nearby Bluetooth devices while Bluetooth setting is open. -
Page 18: Use Camera
4. Use Camera The products are installed with 5.0 mega pixel cameras and have the functions of screen brightness, resolution adjustment and screen captures 4.1 Use Camera [Menu] -> [Camera] Start Camera Application Camera screen AT911 PLUS User Guide... -
Page 19: Use Uhf
5. Use UHF UHF RFID Program [Menu] -> [ATUHF Demo] Start ATID RFID Demo ATID RFID Demo screen program AT911 PLUS User Guide... -
Page 20: Chapter 5. Appendix
CMOS 13M Pixel Auto Focus with Flash UHF 900MHz tag reader 902MHz - 928MHz Frequency 0m ~ 6m(According to Tag & Environment) 0m ~ Reading range 3m(According to Tag & Environment) Writing range Antenna Gain 4 dbi AT911 PLUS User Guide... - Page 21 0mm separation distance between the user's body and the back of the phone. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. AT911 PLUS User Guide...
