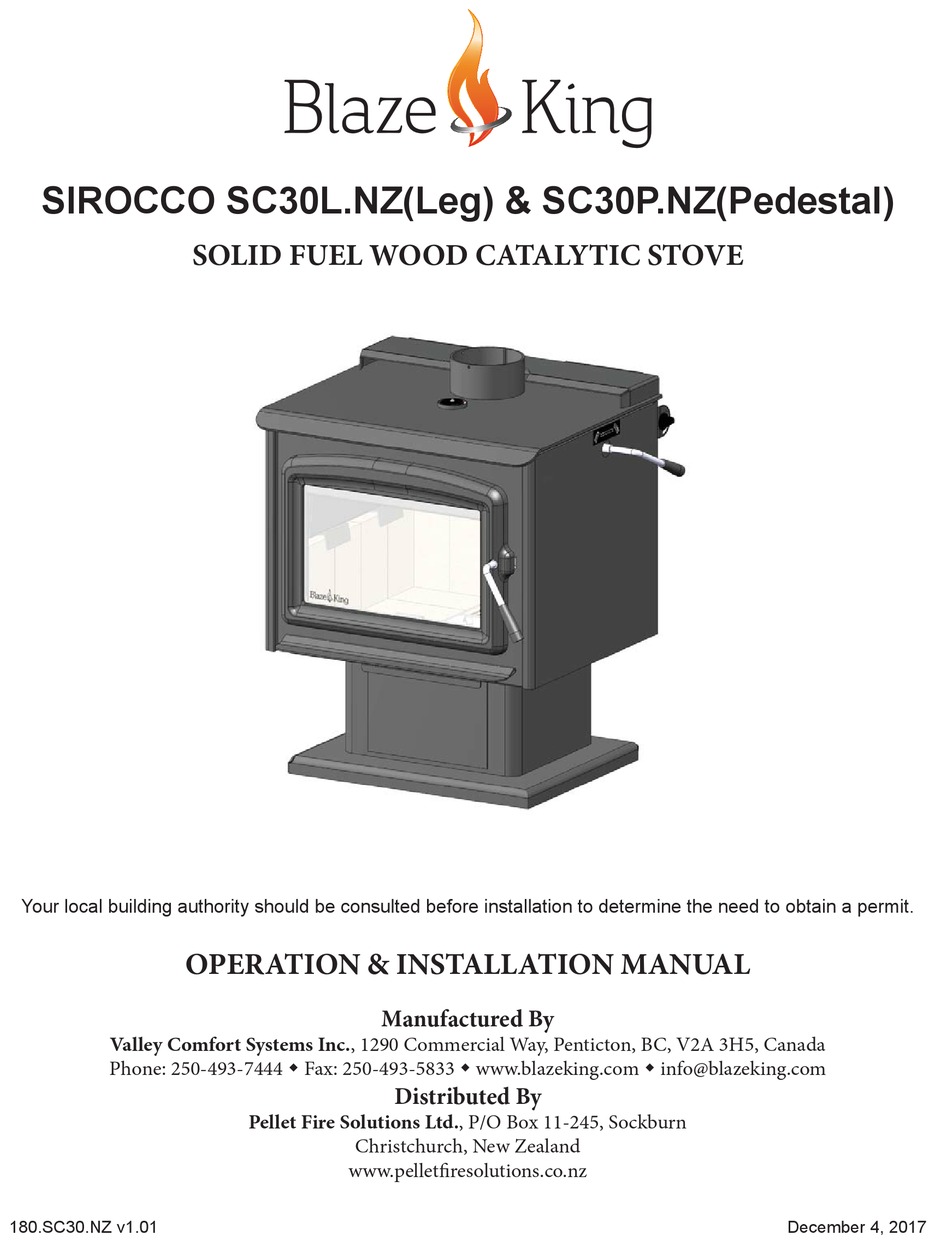

SIROCCO SC30L.NZ(Leg) & SC30P.NZ(Pedestal)
SOLID FUEL WOOD CATALYTIC STOVE
Your local building authority should be consulted before installation to determine the need to obtain a permit.
OPERATION & INSTALLATION MANUAL
Manufactured By
Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada
Phone: 250-493-7444 Fax: 250-493-5833 www.blazeking.com info@blazeking.com
Distributed By
Pellet Fire Solutions Ltd., P/O Box 11-245, Sockburn
Christchurch, New Zealand
www.pelletfi resolutions.co.nz
180.SC30.NZ v1.01
December 4, 2017
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Blaze King SIROCCO SC30L.NZ
Summary of Contents for Blaze King SIROCCO SC30L.NZ
- Page 1 SIROCCO SC30L.NZ(Leg) & SC30P.NZ(Pedestal) SOLID FUEL WOOD CATALYTIC STOVE Your local building authority should be consulted before installation to determine the need to obtain a permit. OPERATION & INSTALLATION MANUAL Manufactured By Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada Phone: 250-493-7444 ...
-
Page 2: Table Of Contents
_____________________________________________________________ 4 INTRODUCTION _____________________________________________________________ 5 SPECIFICATIONS ______________________________________________________ 6 APPLIANCE DIMENSIONS ............6 APPLIANCE DIMENSIONS—Sirocco SC30P.NZ (Pedestal) ..............7 APPLIANCE DIMENSIONS—Sirocco SC30L.NZ (Leg) ________________________________________________________ 8 CERTIFICATION LABEL ________________________________________________________ 9 SAFETY PRECAUTIONS _________________________________________________ 12 INSTALLATION INSTRUCTIONS ..................12 PARTS INCLUDED WITH THE SIROCCO ....................... - Page 3 SC30L.NZ & SC30P.NZ Page 3 TABLE OF CONTENTS ______________________________________________________________ 32 MAINTENANCE ....................32 RUN-AWAY OR CHIMNEY FIRE .................. 32 CREOSOTE FORMATION AND REMOVAL ......................33 CHIMNEY MAINTENANCE ..............33 FIRE EXTINGUISHERS AND SMOKE DETECTORS ..........................33 ASH REMOVAL ..................34 LOADING DOOR GASKET INSPECTION .................
-
Page 4: Introduction
Page 4 SC30L.NZ & SC30P.NZ INTRODUCTION THIS APPLIANCE IS HOT WHEN OPERATED AND CAN CAUSE SEVERE BURNS IF CONTACTED. • ANY CHANGES OR ALTERATIONS TO THIS APPLIANCE OR ITS CONTROLS CAN BE DANGEROUS AND IS • PROHIBITED. Do not operate appliance before reading and understanding operating instructions. Failure to operate appliance according to •... -
Page 5: Specifications
4.6 m from stove top to chimney cap: Insulated liner recommended in Canada in USA Blaze King Industries / Valley Comfort Systems Blaze King Industries Warranty Department, 1290 Commercial Way Warranty Department, 146A Street Penticton, BC Canada V2A 3H5, Ph: 250-493-7444... -
Page 6: Appliance Dimensions
Page 6 SC30L.NZ & SC30P.NZ APPLIANCE DIMENSIONS APPLIANCE DIMENSIONS—Sirocco SC30P.NZ (Pedestal) 180.SC30.NZ v1.01 December 4, 2017... -
Page 7: Appliance Dimensions-Sirocco Sc30L.nz (Leg)
SC30L.NZ & SC30P.NZ Page 7 APPLIANCE DIMENSIONS APPLIANCE DIMENSIONS—Sirocco SC30L.NZ (Leg) 180.SC30.NZ v1.01 December 4, 2017... -
Page 8: Certification Label
Page 8 SC30L.NZ & SC30P.NZ CERTIFICATION LABEL BLAZE KING SIROCCO 30 CATALYST STOVE SN - NZ01. MODEL #: SC30P.NZ SC30L.NZ Tested and certifi ed to CM1.6, AS/NZS 4012:2014+A1 & 4013:2014. NEW ZEALAND AUTHORIZATION #'S SC30P.NZ 181244 (NES) SC30L.NZ 181246 (NES) 181242 (CM1.6) -
Page 9: Safety Precautions
Page 9 SAFETY PRECAUTIONS IF THIS BLAZE KING APPLIANCE IS NOT PROPERLY INSTALLED OR OPERATED, A HOUSE FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA. - Page 10 Page 10 SC30L.NZ & SC30P.NZ SAFETY PRECAUTIONS Ashes should be placed in a steel container with a tightly fi tting lid and moved outdoors Do not throw this manual immediately. If the ashes are away. This manual has disposed of by burial in soil or important operating and otherwise locally dispersed, maintenance instructions that...
- Page 11 SC30L.NZ & SC30P.NZ Page 11 SAFETY PRECAUTIONS HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE Keep furniture, curtains, AWAY. wood, paper and other CONTACT MAY CAUSE SKIN combustibles a minimum of BURNS. 48in (1219mm) away from Do not touch the appliance the front of the appliance.
-
Page 12: Installation Instructions
CAN CATCH FIRE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48”(1219 MM) FROM THE FRONT OF THE APPLIANCE. Blaze King grants no warranty, implied or stated, for the installation or maintenance of the appliance and assumes no responsibility of any consequential damage(s). -
Page 13: Minimum Clearances
SC30L.NZ & SC30P.NZ Page 13 INSTALLATION INSTRUCTIONS MINIMUM CLEARANCES Parallel Position Clearance Distance Position Clearance (mm) (A) Rear (B) Side 859mm (C) Floor protector (front) 76mm (D) Floor protector 76mm (side) 882mm (E) Flue (rear) Corner Position Clearance Distance Position Clearance (mm) (F) Side 1309mm... -
Page 14: Initial Installation
INITIAL INSTALLATION The Blaze King Sirocco was tested to AS/NZS 2918:2001 Appendix B, using a Davins Flue Kit (Kit Code 2074) under Safe Clearance Test Report SL0478 by Spectrum Laboratories. The Davins Flue Kit 2074 was tested to AS/NZS 2918:2001 Appendix F by Applied Research under Test Report ARS 04/969R1. -
Page 15: Seismic Restraint
SC30L.NZ & SC30P.NZ Page 15 INSTALLATION INSTRUCTIONS Continue then to install the 200 mm inner casing. With the use of the combination liner system, the brackets on the 200 mm inner liner should position this liner correctly. Ensure that the 200 mm inner liner protrudes 200 mm above the roof line. -
Page 16: Standard Flue Installation
Page 16 SC30L.NZ & SC30P.NZ INSTALLATION INSTRUCTIONS STANDARD FLUE INSTALLATION 502 - Stainless 402 - Stainless Steel Steel Fixed Cowl Revolving Cowl 150mm (Optional) 150mm (Optional) ITEM PART NUMBER DESCRIPTION QTY. Fire Place Stand-alone Fire Place 150mm x 1200mm Satin Black 202SB Flue Mounting Rail (950mm) -
Page 17: Combustion Air
Blaze King therefore recommends vertical installations with a minimum length of 4.6 m from stove top to chimney cap. In all freestanding stove installations, use double wall stove pipe from the stove top to the ceiling support box. -
Page 18: Door Change-Out
Page 18 SC30L.NZ & SC30P.NZ INSTALLATION INSTRUCTIONS DOOR CHANGE-OUT To change out the door, follow these steps: WARNING: DOOR IS HEAVY, PLEASE HOLD FIRMLY. INSTALLATION 1. Align bottom door hinge hole with bottom fi rebox hinge pin 2. Lower door onto bottom hinge pin, then align top door hinge hole with top fi rebox hinge 3. -
Page 19: Introduction
fi re situation. Consequential damage from this type of operation will deem the warranty null and void. All Blaze King wood appliances are designed to burn cord wood only. Dimensional timber off cuts, very low moisture content small diameter wood and pressed wood logs, when used in excess, may result in excessive internal fi... -
Page 20: Operating Instructions
Page 20 SC30L.NZ & SC30P.NZ OPERATING INSTRUCTIONS BYPASS Your catalytic wood burning appliance has a bypass device to allow the smoke from the fi re to temporarily bypass, or go around, the catalytic combustor. The bypass door is located inside the fi rebox at the top of the stove. The bypass is a steel plate door, hinged inside the stove, and is controlled by the bypass handle on the right side of the stove. -
Page 21: Selecting Wood
SC30L.NZ & SC30P.NZ Page 21 OPERATING INSTRUCTIONS SELECTING WOOD THIS APPLIANCE IS DESIGNED TO BURN NATURAL WOOD ONLY. DO NOT BURN TREATED • WOOD, COAL, CHARCOAL, COLORED PAPER, CARDBOARD, SOLVENTS OR GARBAGE. HIGHER EFFICIENCIES AND LOWER EMISSIONS WILL GENERALLY RESULT WHEN BURNING •... -
Page 22: How To Use Moisture Meters
Page 22 SC30L.NZ & SC30P.NZ OPERATING INSTRUCTIONS HOW TO USE MOISTURE METERS 1. Take a random selection of around 3-4 logs per cubic yard or cubic meter. 2. Split each log down the middle. 3. In the center of log push pins of meter along grain - three measurements are taken on the freshly split surface: 2”... -
Page 23: Lighting The Fire
fi re going until the next reloading time. Don’t be afraid to fi ll it completely, if necessary. With the Blaze King automatic thermostat, the wood will only burn at the rate set on the thermostat. -
Page 24: Reloading Procedure (With The Catalyst Temperature In The Active Zone)
Page 24 SC30L.NZ & SC30P.NZ OPERATING INSTRUCTIONS DO NOT USE THE APPLIANCE WITHOUT A COMBUSTOR RELOADING PROCEDURE (with the catalyst temperature in the ACTIVE ZONE) 1. Have your next load of wood ready before beginning. Turn the thermostat to HIGH. Wait 2 minutes for the air fl... -
Page 25: Ice - Formation And Prevention
SC30L.NZ & SC30P.NZ Page 25 OPERATING INSTRUCTIONS ICE - FORMATION AND PREVENTION Most of what you see coming from the chimney of a properly operating catalytic appliance is water vapor. In extremely cold weather - and with some exterior chimneys - this vapor may freeze in the chimney to the point of actually blocking the chimney and extinguishing the fi... -
Page 26: Catalyst Monitoring
It is also possible that the thermometer, itself, may not be reading accurately. Before condemning the combustor, read “THERMOMETER”. If, after cleaning has been performed, your combustor is still not working you can Contact Blaze King for a replacement combustor. Please read “REPLACEMENT PARTS” section in this owners’ manual. -
Page 27: Catalytic Combustor, Troubleshooting
Solution: Burn quality woods available in your area. If you decide the catalyst has been deactivated, replace combustor with a genuine Blaze King combustor (failure to do so will void your warranty). Severe Peeling 180.SC30.NZ v1.01... - Page 28 Page 28 SC30L.NZ & SC30P.NZ CATALYST MONITORING PROBLEM - CATALYST MASKING (The catalyst is coated with a layer of fl y-ash or soot which prevents catalytic activity) Possible Cause: Accumulation of fl y-ash Solution: Brush cooled combustor with a soft-bristled brush or vacuum lightly at least once per burning season.
-
Page 29: Catalytic Combustor, Replacement
“CATALYST MONITORING”. If the combustor needs replacing then discontinue use of the appliance until the combustor is replaced. If the combustor must be examined or replaced contact your Blaze King dealer. 1. The removal of a Blaze King Catalytic combustor requires a small fl... - Page 30 Page 30 SC30L.NZ & SC30P.NZ CATALYST MONITORING 4. Now that the combustor has been removed you’ll be able to see one stainless bypass retainer on each side. These can remain in place and do not need to be removed. These clips are not fi xed in position and can fall into the fi...
- Page 31 The combustor supplied with this heater is a Z0336A-M metal combustor. Consult the catalytic combustor warranty also supplied with this wood heater. Warranty claims should be addressed to: in Canada in USA Blaze King Industries / Valley Comfort Systems Blaze King Industries Warranty Department, 1290 Commercial Way Warranty Department, 146A Street...
-
Page 32: Maintenance
Page 32 SC30L.NZ & SC30P.NZ MAINTENANCE RUN-AWAY OR CHIMNEY FIRE A CHIMNEY FIRE CAN PERMANENTLY DAMAGE YOUR CHIMNEY SYSTEM. THIS DAMAGE CAN ONLY BE REPAIRED BY REPLACING THE DAMAGED COMPONENT PARTS. CHIMNEY FIRE DAMAGE IS NOT COVERED BY THE LIMITED WARRANTY. CAUSES: 1. -
Page 33: Chimney Maintenance
SC30L.NZ & SC30P.NZ Page 33 MAINTENANCE CHIMNEY MAINTENANCE The most effi cient method to sweep the chimney is using a hard brush. Brush downwards so soot and creosote residues will come off the inner surface and fall to the bottom of the chimney where they can be removed easily. -
Page 34: Loading Door Gasket Inspection
BLAZE KING RECOMMENDS YOUR DEALER PERFORM THIS TASK 1. If the door gasket is to be replaced, be sure you have Blaze King 7/8” fi ber glass gasket ready to re- install, as well as high temperature adhesive. See your Blaze King dealer. -
Page 35: Bypass Door Gasket Replacement
BLAZE KING RECOMMENDS YOUR DEALER PERFORM THIS TASK 1. Will require THERMOSEAL® 1000SF high-temperature resistant cement and Blaze King 5/8” dense fi ber glass gasket. See your Blaze King dealer. You will also require masking tape and combustor gasket as disassembly of the combustor will result in a damaged combustor gasket. -
Page 36: Door Glass Gasket Inspection
DOOR GLASS GASKET REPLACEMENT BLAZE KING RECOMMENDS YOUR DEALER PERFORM THIS TASK 1. You will require Blaze King glass gasket and Blaze King door gasket. Please see your Blaze King dealer. 2. Remove the old glass gasket. 3. Starting at the corner opposite of the “Blaze King”... -
Page 37: Loading Door Tension Adjustment
SC30L.NZ & SC30P.NZ Page 37 MAINTENANCE LOADING DOOR TENSION ADJUSTMENT To tighten the seal, use a 9/16” wrench to loosen retainer nut on the outside and tighten nut on inside fi rebox to move latch catch in (see fi gure beside). Secure retainer nut and (repeat) paper test (see “LOADING DOOR GASKET INSPECTION”). -
Page 38: Troubleshooting
TROUBLESHOOTING Your Blaze King is designed to allow a wide selection of heat output levels. If you begin to lose control of the amount of heat the stove is emitting, determine the cause early so that major problems may be avoided. - Page 39 fi rebox. INSPECTION” Excessive draft in the chimney. Measure draft with a Manometer. See “DRAFTS”. Consult your Blaze King dealer or a chimney sweep. Install a cap. Thermostat not operating properly. Consult your Blaze King dealer. Wood is too small.
- Page 40 fi re is well established after each reloading. Poor draft caused by an oversize or short fl ue, etc. Measure draft with Manometer. See “DRAFTS”. Consult your Blaze King dealer or a chimney sweep. Obstruction in chimney or cap screen. Remove obstruction. Clean chimney and/or cap screen.
- Page 41 SC30L.NZ & SC30P.NZ Page 41 REPLACEMENT PARTS 180.SC30.NZ v1.01 December 4, 2017...
- Page 42 Page 42 SC30L.NZ & SC30P.NZ REPLACEMENT PARTS exploded Part # Description view 120.0342.E CAT THERMOMETER W/PAN 4" PROBE 155.0341.C GASKET COMB SLIT TO 2"X50' RLS Z4498 BYPASS RETAINER KIT COMPLETE Z0336.A.M COMBUSTOR ASB METAL AF/CK/SC 3822 SMOKE BAFFLE 155.0255.B GASKET 5/8 DENSE RND / 1 m 2430.1 FLAME SHIELD WING 20/30 Z4551...
-
Page 43: Replacement Parts
SC30L.NZ & SC30P.NZ Page 43 REPLACEMENT PARTS Brick Layout 180.SC30.NZ v1.01 December 4, 2017... -
Page 44: Warranty
Blaze King and Valley Comfort’s respective brands extend the following warranty for wood fi red appliances purchased from an authorized Blaze King dealer. Warranty starts with date of purchase by the original owner (End User) except as noted for replacement parts. - Page 45 If you are not satisfi ed with the service provided by the Blaze King dealer, write to Blaze King at the address listed on the last page of the Owner’s Manual. Include a copy of the original purchase invoice and a description of the problem.
- Page 46 Blaze King The use of such products may nullify the Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Blaze King dealer before installation.
- Page 47 For parts of the Blaze King woodstove or fi replace insert warranted beyond the fi rst year, the fi ve year limited warranty will have the same obligations as described in this document, provided, however that the purchaser shall pay the following percentage of the then current retail cost of the repair or the replacement, according to the year after purchase in the which the defect is brought to the attention of Blaze King.*** During the 2nd year----purchaser pays...
-
Page 48: Notes
Page 48 SC30L.NZ & SC30P.NZ NOTES Installer: Please complete the following information Dealer Name & Address:_______________________________________________________________________ ____________________________________________________________________________________________ Installer (print): ______________________________________________________________________________ Installer (sign): ______________________________________________________________________________ Phone #: ___________________________________________________________________________________ Date Installed:________________________________________________________________________________ Serial No.: __________________________________________________________________________________ 180.SC30.NZ v1.01 December 4, 2017...
