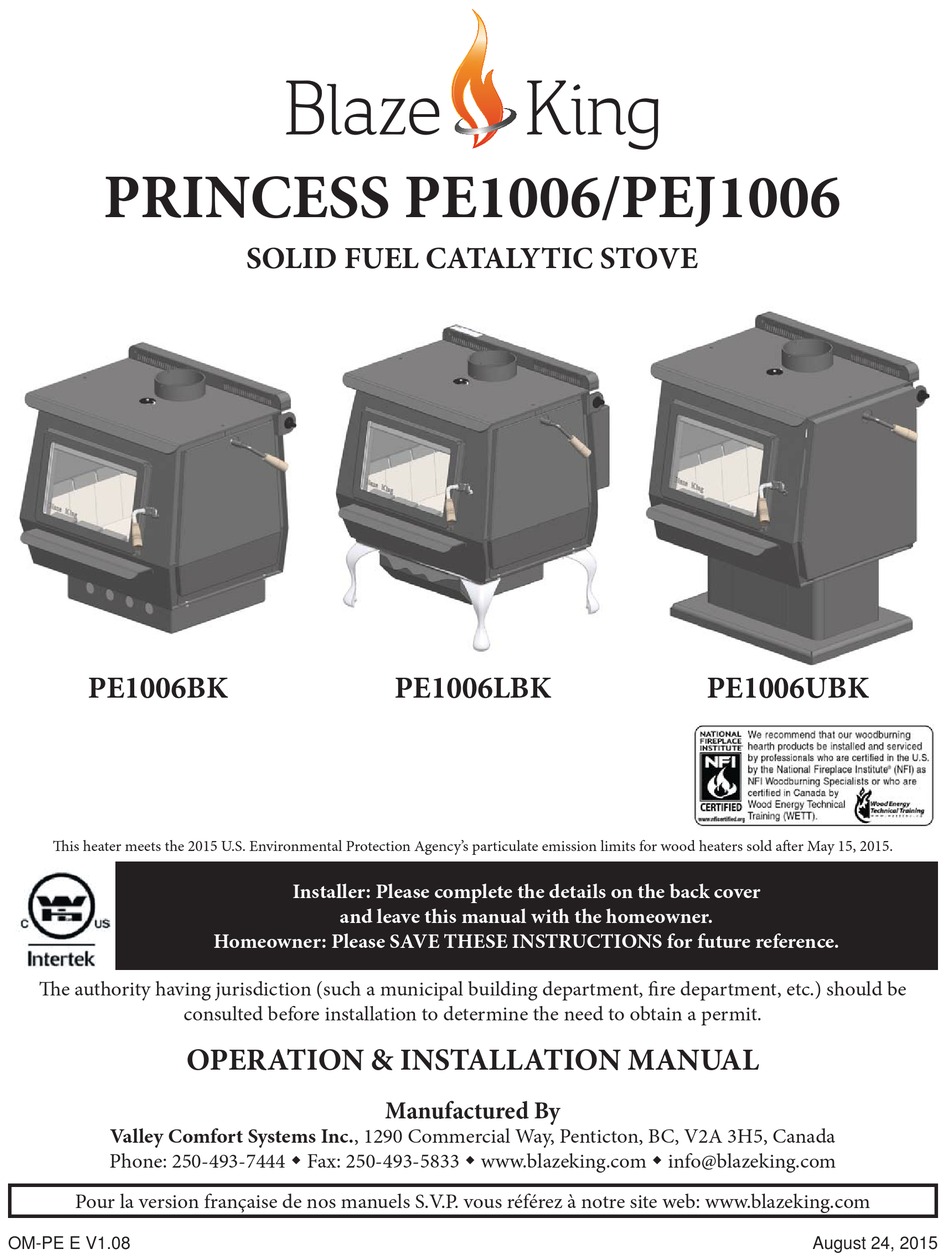

PRINCESS PE1006/PEJ1006
SOLID FUEL CATALYTIC STOVE
PE1006BK
PE1006LBK
PE1006UBK
Th is heater meets the 2015 U.S. Environmental Protection Agency's particulate emission limits for wood heaters sold aft er May 15, 2015.
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please SAVE THESE INSTRUCTIONS for future reference.
Th e authority having jurisdiction (such a municipal building department, fi re department, etc.) should be
consulted before installation to determine the need to obtain a permit.
OPERATION & INSTALLATION MANUAL
Manufactured By
Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada
Phone: 250-493-7444  Fax: 250-493-5833  www.blazeking.com  info@blazeking.com
Pour la version française de nos manuels S.V.P. vous référez à notre site web: www.blazeking.com
OM-PE E V1.08
August 24, 2015
