PRINCESS PE 1006

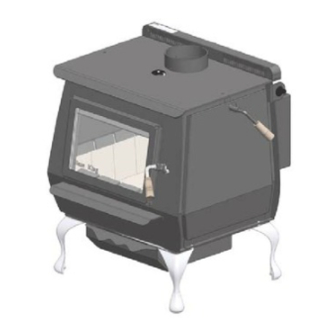

SOLID FUEL CATALYTIC STOVE: PE1006, PEJ1006
OPERATION & INSTALLATION MANUAL
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
The authority having jurisdiction (such a municipal building department, fire department, etc.) should be
consulted before installation to determine the need to obtain a permit.
Manufactured By
Valley Comfort Systems Inc.
Blaze King Industries
1290 Commercial Way
146 A Street
Penticton, BC V2A 3H5
Walla Walla, WA 99362
CANADA
U.S.A.
Phone: 250-493-7444
Phone: (509) 522-2730
Fax: 250-493-5833
Fax: (509) 522-9803
Pour la version française de nos manuels S.V.P. vous référez à notre site web:
www.blazeking.com
G:\InDATA\manuals\OM-PE E V1.02
July 19, 2012
