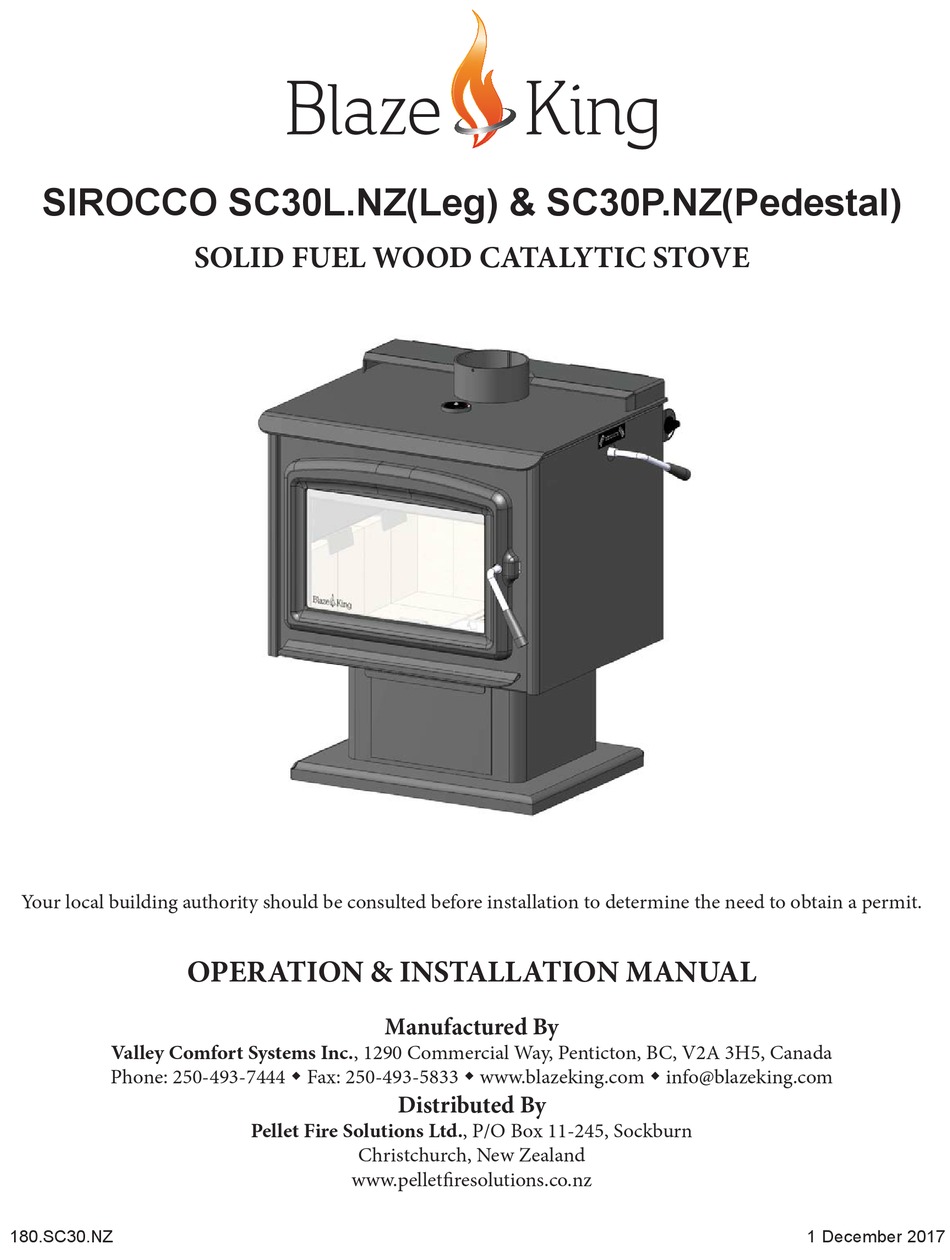

SIROCCO SC30L.NZ(Leg) & SC30P.NZ(Pedestal)
SOLID FUEL WOOD CATALYTIC STOVE
Your local building authority should be consulted before installation to determine the need to obtain a permit.
OPERATION & INSTALLATION MANUAL
Manufactured By
Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada
Phone: 250-493-7444 Fax: 250-493-5833 www.blazeking.com info@blazeking.com
Distributed By
Pellet Fire Solutions Ltd., P/O Box 11-245, Sockburn
Christchurch, New Zealand
www.pelletfi resolutions.co.nz
180.SC30.NZ
1
December
2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blaze King SC30L.NZ
Summary of Contents for Blaze King SC30L.NZ
- Page 1 SIROCCO SC30L.NZ(Leg) & SC30P.NZ(Pedestal) SOLID FUEL WOOD CATALYTIC STOVE Your local building authority should be consulted before installation to determine the need to obtain a permit. OPERATION & INSTALLATION MANUAL Manufactured By Valley Comfort Systems Inc., 1290 Commercial Way, Penticton, BC, V2A 3H5, Canada Phone: 250-493-7444 ...
-
Page 2: Parts Included With The Sirocco
CAN CATCH FIRE. OBJECTS PLACED IN FRONT OF THE APPLIANCE MUST BE KEPT A MINIMUM OF 48”(1219 MM) FROM THE FRONT OF THE APPLIANCE. Blaze King grants no warranty, implied or stated, for the installation or maintenance of the appliance and assumes no responsibility of any consequential damage(s). -
Page 3: Initial Installation
INITIAL INSTALLATION The Blaze King Sirocco was tested to AS/NZS 2918:2001 Appendix B, using a Davins Flue Kit (Kit Code 2074) under Safe Clearance Test Report SL0478 by Spectrum Laboratories. The Davins Flue Kit 2074 was tested to AS/NZS 2918:2001 Appendix F by Applied Research under Test Report ARS 04/969R1. -
Page 4: Seismic Restraint
SEISMIC RESTRAINT. For the pedestal model SC30P.NZ, remove the ash drawer to access the screw down holes (see cut away image below). For the leg model SC30L.NZ, use the LEG ANCHOR KIT #S.ZR8039 to secure fi re to the fl oor. 180.SC30.NZ v1.01... -
Page 5: Minimum Clearances
SC30L.NZ & SC30P.NZ Page 5 INSTALLATION INSTRUCTIONS MINIMUM CLEARANCES Parallel Position Clearance Distance Position Clearance (mm) (A) Rear (B) Side 859mm (C) Floor protector (front) 76mm (D) Floor protector 76mm (side) 882mm (E) Flue (rear) Corner Position Clearance Distance Position... -
Page 6: Standard Flue Installation
Page 6 SC30L.NZ & SC30P.NZ INSTALLATION INSTRUCTIONS STANDARD FLUE INSTALLATION 502 - Stainless 402 - Stainless Steel Steel Fixed Cowl Revolving Cowl 150mm (Optional) 150mm (Optional) ITEM PART NUMBER DESCRIPTION QTY. Fire Place Stand-alone Fire Place 150mm x 1200mm Satin Black... -
Page 7: Combustion Air
Blaze King therefore recommends vertical installations with a minimum length of 4.6 m from stove top to chimney cap. In all freestanding stove installations, use double wall stove pipe from the stove top to the ceiling support box.
