User Guide
â
Vaisala HUMICAP
Humidity and
Temperature Probes
HMP4, HMP5, HMP7, HMP8, TMP1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMP4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vaisala HMP4

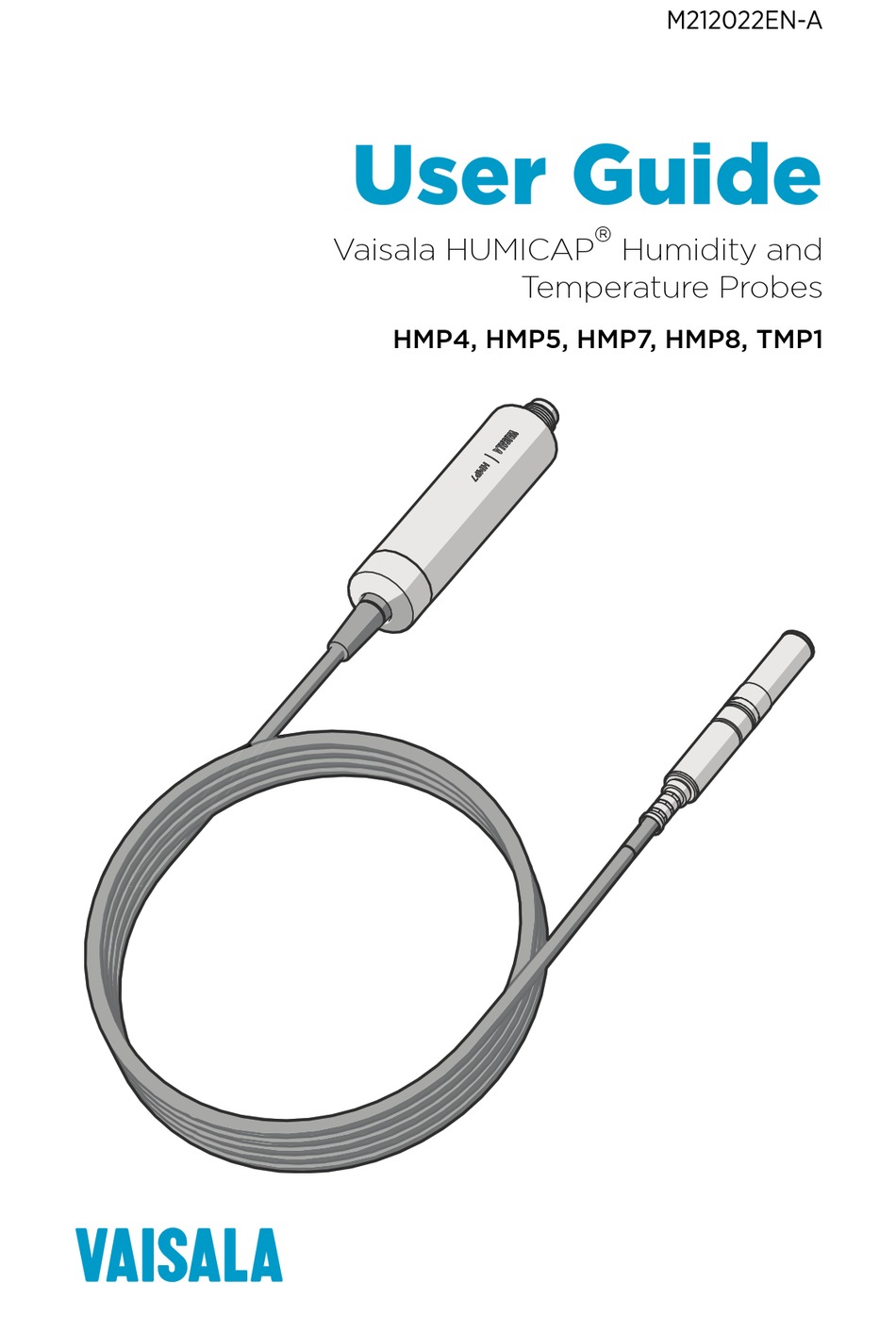

  • Page 1 M212022EN-A User Guide â Vaisala HUMICAP Humidity and Temperature Probes HMP4, HMP5, HMP7, HMP8, TMP1...
  • Page 2 Street address: Vanha Nurmijärventie 21, FI-01670 Vantaa, Finland Mailing address: P.O. Box 26, FI-00421 Helsinki, Finland Phone: +358 9 8949 1 Visit our Internet pages at www.vaisala.com. © Vaisala Oyj 2017 local rules and regulations No part of this manual may be...
  • Page 3: Table Of Contents

    2.10 TMP1 Probe....................... 12 Installation......................13 Probe Body Dimensions and Pinout............. 14 Configuration with Insight Software............. 15 Vaisala Insight Software................. 15 Connecting to Insight Software..............15 Configuration Options..................16 Using Probe with Indigo Transmitters...........17 Indigo Overview....................17 Attaching Probes to Indigo Transmitters............. 19 Wireless Configuration Interface Overview..........
  • Page 4 HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Technical Data....................26 HMP4 Specifications..................26 HMP5 Specifications..................28 HMP7 Specifications..................31 HMP8 Specifications..................34 TMP1 Specifications..................37 Dimensions......................39 Spare Parts and Accessories................41 Appendix A: Modbus Reference................46 Default Communication Settings..............46 Function Codes....................46 Data Encoding....................46 A.3.1...
  • Page 5 Enabling and Accessing Indigo's Wireless Configuration Interface......................20 Figure 17 Indigo Login View...................20 Figure 18 HMP4 Humidity Measurement Accuracy as a Function of Temperature (Including Non-Linearity and Repeatability)....26 Figure 19 HMP4 Temperature Measurement Accuracy over Full Range (Including Non-Linearity and Repeatability)......27...
  • Page 6 HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A List of Tables Table Document Versions.....................5 Table 2 Related Manuals....................5 Table 3 Suitability of Cleaning Agents...............22 Table 4 Measurement Performance................26 Table 5 SI Traceable Calibration...................27 Table 6 Operating Environment...................27 Table 7 Inputs and Outputs...................28 Table 8 Mechanical Specifications................
  • Page 7: About This Document

    Chapter 1 – About This Document 1. About This Document 1.1 Version Information This document provides instructions for installing, using, and maintaining Vaisala HUMICAPâ Humidity and Temperature Probes HMP4, HMP5, HMP7, HMP8, and Temperature Probe TMP1. Table 1 Document Versions Document Code Date...
  • Page 8: Trademarks

    Indicates that you need to take some notes during the task. 1.4 Trademarks Vaisalaâ and HUMICAPâ are registered trademarks of Vaisala Oyj. All other product or company names that may be mentioned in this publication are trade names, trademarks, or registered trademarks of their respective owners.
  • Page 9: Product Overview

    2 m (6.5 ft) cable between the probe body and the probe head. The probes are compatible with Vaisala Indigo ™ transmitters. They can also be connected to Vaisala Insight software for configuration, diagnostics, and temporary online monitoring.
  • Page 10: Additional Features With Indigo Transmitters

    • TMP1: 2 points for temperature • Standalone Modbus RTU over RS-485 • Plug & play compatible with Indigo ™ series of transmitters • Can be connected to Vaisala Insight software for configuration, diagnostics, and temporary online monitoring 2.3 Additional Features with Indigo Transmitters The probes are compatible with Vaisala Indigo 200 transmitters starting from Indigo transmitter serial number N4650357 (Indigo 200 transmitter software version 1.3.2 or higher).
  • Page 11: Esd Protection

    2.5 ESD Protection Electrostatic Discharge (ESD) can cause immediate or latent damage to electronic circuits. Vaisala products are adequately protected against ESD for their intended use. However, it is possible to damage the product by delivering an electrostatic discharge when touching, removing or inserting any objects inside the equipment housing.
  • Page 12: Hmp7 Probe

    [in] Figure 5 HMP7 Probe Head Dimensions Vaisala HUMICAPâ Humidity and Temperature Probe HMP7 is designed for applications that involve constant high humidity or rapid changes in humidity such as drying and test chambers, combustion air and other humidifiers and meteorological measurements where measurement performance and chemical tolerance are essential.
  • Page 13: Hmp8 Probe

    Chapter 2 – Product Overview • Stainless steel mesh filter standard in delivery Probe Heating HMP7 supports probe heating. Probe heating heats up not only the sensor, but the entire probe head. When probe temperature is heated above dew point temperature, condensation on the probe can be avoided while measuring the dew point temperature of the process.
  • Page 14: Tmp1 Probe

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Vaisala HUMICAPâ Humidity and Temperature Probe HMP8 is designed for pressurized applications in compressed air systems, refrigerant dryers, and other pressurized industrial applications where easy insertion and removal of the probe and adjustable installation depth into the pipeline are needed.
  • Page 15: Installation

    Let the cable hang loosely to prevent condensed water from running along the cable to the probe head. Attach the probe body to a wall or other surface using the two mounting clips (Vaisala item 243257SP) supplied with the probe. Each clip attaches to the installation surface with one screw (screw hole Ø...
  • Page 16: Probe Body Dimensions And Pinout

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A 3.1 Probe Body Dimensions and Pinout 136 [5.35] [in] Probe cable 2000 [78.74] M12/5 M12/5 Male Connector Figure 10 Probe Body Pin # Function Notes Wire Colors in Vaisala Cables Power supply Supply voltage: Brown •...
  • Page 17: Configuration With Insight Software

    • Configure probe features such as measurement filtering, chemical purge, heating, and serial communication Download Vaisala Insight software at www.vaisala.com/insight. The probe can be connected to Vaisala Insight software using a Vaisala USB cable (no. 242659). 4.2 Connecting to Insight Software •...
  • Page 18: Configuration Options

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A 4.3 Configuration Options Select > Configure Device to access configuration options in Insight software. The available configuration options in correspond to the Modbus configuration registers; see A.4.2 Configuration Registers (page 50). Insight software is the recommended way to change the probe configuration.
  • Page 19: Using Probe With Indigo Transmitters

    Chapter 5 – Using Probe with Indigo Transmitters 5. Using Probe with Indigo Transmitters 5.1 Indigo Overview Figure 13 HMP7 Attached to Indigo 200 Transmitter 3.5” TFT LCD color display: non-display option with LED available for certain models Locking wheel: insert probe, hold in place, and turn the wheel counterclockwise Cable to probe head Wireless configuration interface (WLAN) activation button Rubber lead-through with strain relief.
  • Page 20: Figure 14 Hmp7 Attached To Indigo 200 Transmitter With A Cable

    Locking wheel: insert cable, hold in place, and turn the wheel counterclockwise Connection cable The probe can be connected to Vaisala Indigo transmitters, either directly on the transmitter from the probe's connector, or by using a cable between Indigo and the probe.
  • Page 21: Attaching Probes To Indigo Transmitters

    Chapter 5 – Using Probe with Indigo Transmitters 5.2 Attaching Probes to Indigo Transmitters Figure 15 Attaching the Probe to Indigo 200 Series 1. Insert the probe or the connection cable into the transmitter's connector. Use of connection cable is recommended for strain relief. 2.
  • Page 22: Wireless Configuration Interface Overview

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A 5.3 Wireless Configuration Interface Overview The wireless configuration interface has two user levels. All users have view-only access (no configuration rights, not password protected), and personnel that carry out configuration tasks can log in with an administrative password that allows changing the transmitter and probe settings.
  • Page 23 Chapter 5 – Using Probe with Indigo Transmitters • User: view-only access available for all users. Does not require a password. • Admin: password-protected access. To change settings, you must log in as admin. To log in: 1. Enter the user name and password: a.
  • Page 24: Maintenance

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A 6. Maintenance 6.1 Cleaning the Probe CAUTION! Do not attempt to clean the sensors under the filter in any way. Do not spray anything directly on the probe head, since that may deposit impurities on the sensors.
  • Page 25: Changing The Probe Filter

    When adjustment is necessary, you can have Vaisala calibrate and adjust the probe. To order calibration services from Vaisala, visit store.vaisala.com. You can also do the adjustment yourself using the Insight software.
  • Page 26: Adjustment Points And Requirements

    Insight software and repeat the adjustment procedure. Make sure the measurement has stabilized and the reference environment is reliable. If the required adjustment is still too large, the probe needs to be serviced by Vaisala. When adjustment of humidity measurement is necessary, Vaisala recommends adjusting in two points, 11 %RH and 75 %RH.
  • Page 27 Chapter 6 – Maintenance 4. Select the type of adjustment to perform: RH adjustment or T adjustment. 5. Define the needed adjustment for the first measurement point: a. Insert the probe head in the reference environment for the first calibration point. b.
  • Page 28: Technical Data

    Exposing temperature sensor to temperatures outside -20 ... +150 °C (-4 ... +302 °F) may cause permanent additional deviation of ±0.1 °C (0.18 °F) Temperature [ ° Figure 18 HMP4 Humidity Measurement Accuracy as a Function of Temperature (Including Non- Linearity and Repeatability)
  • Page 29: Figure 19 Hmp4 Temperature Measurement Accuracy Over Full Range (Including Non-Linearity And Repeatability)

    Chapter 7 – Technical Data Temperature [ ° Figure 19 HMP4 Temperature Measurement Accuracy over Full Range (Including Non-Linearity and Repeatability) Table 5 SI Traceable Calibration Property Description/Value Uncertainty of relative humidity calibration (k = ±0.5 %RH (0 ... 40 %RH) ±0.8 %RH (40 ... 95 %RH) Uncertainty of temperature calibration (k = 2) ±0.1 °C (±0.18 °F) at +23 °C (+73.4 °F)
  • Page 30: Hmp5 Specifications

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Table 7 Inputs and Outputs Property Description/Value Operating voltage 15 ... 30 VDC Current consumption 10 mA typical 500 mA max. Digital output RS-485, non-isolated Default serial settings 19200 bps N 8 2...
  • Page 31: Figure 20 Hmp5 Humidity Measurement Accuracy As A Function Of Temperature (Including Non-Linearity And Repeatability)

    Chapter 7 – Technical Data Property Description/Value Temperature Sensor Pt100 RTD Class F0.1 IEC 60751 Measurement range -70 ... +180 °C (-94 ... +356 °F) ±0.1 °C (±0.18 °F) 1) 2) Accuracy at +23 °C (+73.4 °F) Defined against calibration reference Exposing temperature sensor to temperatures outside -20 ...
  • Page 32: Figure 21 Hmp5 Temperature Measurement Accuracy Over Full Range (Including Non-Linearity And Repeatability)

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Temperature [ ° Figure 21 HMP5 Temperature Measurement Accuracy over Full Range (Including Non-Linearity and Repeatability) Table 10 SI Traceable Calibration Property Description/Value Uncertainty of relative humidity calibration (k = ±0.5 %RH (0 ... 40 %RH) ±0.8 %RH (40 ...
  • Page 33: Hmp7 Specifications

    Chapter 7 – Technical Data Property Description/Value Current consumption 10 mA typical 500 mA max. Digital output RS-485, non-isolated Default serial settings 19200 bps N 8 2 Protocols Modbus RTU Output Parameters Relative humidity, temperature, dew point temperature, wet-bulb temperature, absolute humidity, mixing ratio, water concentration, water mass fraction, water vapor pressure, enthalpy Table 13 Mechanical Specifications Property...
  • Page 34: Figure 22 Hmp7 Humidity Measurement Accuracy As Function Of Temperature (Including Non-Linearity And Repeatability)

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Property Description/Value ±0.1 °C (±0.18 °F) 1) 2) Accuracy at +23 °C (+73.4 °F) Defined against calibration reference Exposing temperature sensor to temperatures outside -20 ... +150 °C (-4 ... +302 °F) may cause permanent additional deviation of ±0.1 °C (0.18 °F)
  • Page 35: Table 15 Si Traceable Calibration

    Chapter 7 – Technical Data Table 15 SI Traceable Calibration Property Description/Value Uncertainty of relative humidity calibration (k = ±0.5 %RH (0 ... 40 %RH) ±0.8 %RH (40 ... 95 %RH) Uncertainty of temperature calibration (k = 2) ±0.1 °C (±0.18 °F) at +23 °C (+73.4 °F) Table 16 Operating Environment Property Description/Value...
  • Page 36: Hmp8 Specifications

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Property Description/Value Materials Probe AISI316L Probe body AISI316L Cable jacket 7.4 HMP8 Specifications Table 19 Measurement Performance Property Description/Value Relative Humidity Sensor HUMICAP R2 Composite Measurement range 0 ... 100 %RH ±0.8 %RH (0 ... 90 %RH) Accuracy at +23 °C (+73.4 °F)
  • Page 37: Figure 24 Hmp8 Humidity Measurement Accuracy As A Function Of Temperature (Including Non-Linearity And Repeatability)

    Chapter 7 – Technical Data Temperature [ ° Figure 24 HMP8 Humidity Measurement Accuracy as a Function of Temperature (Including Non- Linearity and Repeatability) Temperature [ ° Figure 25 HMP8 Temperature Measurement Accuracy over Full Range (Including Non-Linearity and Repeatability) Table 20 SI Traceable Calibration Property Description/Value Uncertainty of relative humidity calibration (k =...
  • Page 38: Table 21 Operating Environment

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Table 21 Operating Environment Property Description/Value Operating temperature range for probe body -40 ... +80 °C (-40 ... +176 °F) Operating temperature range for probe head -70 ... +180 °C (-94 ... +356 °F)
  • Page 39: Tmp1 Specifications

    Chapter 7 – Technical Data 7.5 TMP1 Specifications Table 24 Measurement Performance Property Description/Value Sensor Pt100 RTD Class F0.1 IEC 60751 Measurement range -70 ... +180 °C (-94 ... +356 °F) 1) 2) ±0.1 °C (±0.18 °F) Accuracy at +23 °C (+73.4 °F) Defined against calibration reference Exposing temperature sensor to temperatures outside -20 ...
  • Page 40: Table 27 Inputs And Outputs

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Property Description/Value Operating environment Suitable for outdoor use IP rating IP66 Electromagnetic compatibility Complies with EMC standard EN61326-1, Industrial Environment Table 27 Inputs and Outputs Property Description/Value Operating voltage 15 ... 30 VDC...
  • Page 41: Dimensions

    Figure 27 Probe Body Dimensions 183 [7.20] 120 [4.72] 41 [1.61] Fitting body M22x1.5 or NPT1/2” 32 mm 27 mm [in] Figure 28 HMP4 Probe Head Dimensions 253 [9.96] 243 [9.57] 41 [1.61] [in] Figure 29 HMP5 Probe Head Dimensions 99.5 [3.92] 79.5 [3.13] 37.5 [1.48]...
  • Page 42: Figure 31 Hmp8 Probe Head Dimensions

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A 232 [9.13] 194 [7.64] 41 ... 149 [1.16 ... 5.87] 41 [1.61] Fitting body ISO1/2” or NPT1/2” [in] Figure 31 HMP8 Probe Head Dimensions 130 [5.12] [in] Figure 32 TMP1 Probe Head Dimensions 135 ... 370 [5.31 ... 14.56] [in] Figure 33 Optional Duct Kit 215003 Dimensions...
  • Page 43: Spare Parts And Accessories

    Chapter 7 – Technical Data ISO1/2” fitting body supplied with HMP8 195 [7.67] [in] Figure 34 Optional Ball Valve Installation Kit Dimensions 7.7 Spare Parts and Accessories HMP4 Table 29 Accessories Description Item Code Transmitters Indigo 200 Series See order form Connection Cables...
  • Page 44: Table 30 Accessories

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Description Item Code Stainless steel grid HM47453SP Metallized PPS plastic grid with stainless steel DRW010281SP mesh filter Metallized PPS plastic grid filter DRW010276SP Vaisala Insight software for Windows available at www.vaisala.com/insight Standard in delivery HMP5 Table 30 Accessories...
  • Page 45: Table 31 Accessories

    Chapter 7 – Technical Data Description Item Code Mounting flange 210696 Vaisala Insight software for Windows available at www.vaisala.com/insight Standard in delivery HMP7 Table 31 Accessories Description Item Code Transmitters Indigo 200 See order form Connection Cables Connection cable to Indigo (1 m)
  • Page 46: Table 32 Accessories

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Description Item Code Swagelok for 12 mm probe, 3/8" ISO thread SWG12ISO38 Swagelok for 12 mm probe, 1/2" NPT thread SWG12NPT12 Vaisala Insight software for Windows available at www.vaisala.com/insight Standard in delivery HMP8 Table 32 Accessories...
  • Page 47: Table 33 Accessories

    CBL210493SP 242659 USB PC connection cable Accessories Duct installation kit for T probe 215003 Swagelok for 6 mm probe 1/8" ISO thread SWG6ISO18 Swagelok for 6 mm probe 1/8" NPT thread SWG6NPT18 Vaisala Insight software for Windows available at www.vaisala.com/insight...
  • Page 48: Appendix A: Modbus Reference

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Appendix A. Modbus Reference A.1 Default Communication Settings Table 34 Default Modbus Serial Communication Settings Property Description/Value Serial bit rate 19200 Parity None Number of data bits Number of stop bits Flow control None Modbus device address You can use up to ten probes on the same RS-485 line.
  • Page 49: 32-Bit Floating Point Or Integer Format

    Appendix A – Modbus Reference A.3.1 32-Bit Floating Point or Integer Format Least-significant 16 bits of floating point or integer numbers are placed at the smaller Modbus address as specified in Open Modbus TCP Specification, Release 1.0. This is also known as "little-endian"...
  • Page 50: Modbus Registers

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A A.4 Modbus Registers CAUTION! The decimal numbering of register addresses used in this manual is 1-based (the register addresses start from 1). Note that the register addresses in actual Modbus messages (Modbus Protocol Data Unit (PDU)) start from zero.
  • Page 51 Appendix A – Modbus Reference Address Address Register Description Data Format Metric Unit (Decimal) (Hexadecimal) Floating Point Values 001A Enthalpy 32-bit float kJ/kg 0020 Absolute humidity at 32-bit float 0040 Water vapor mass 32-bit float fraction Integer Values 0100 Relative humidity 16-bit signed integer 0101...
  • Page 52: Configuration Registers

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Integer Values 0120 Water vapor mass 16-bit signed fraction integer A.4.2 Configuration Registers Table 38 Modbus Configuration Data Registers (Writable) Address Address Register Description Data Unit / Valid Range (Decimal) (Hexadecim Format General 1287 0506 Extra heat on/off.
  • Page 53 Appendix A – Modbus Reference Compensation Setpoints 0302 Temperature 32-bit float Unit: °C compensation setpoint. If a value is written to this register, probe uses it when calculating relative humidity instead of its own measurement. When probe heating is in use, temperature must be written to this register to enable relative humidity...
  • Page 54: Device Identification Objects

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Communication 1537 0600 Modbus address 16-bit 1 ... 247 integer Default: 240 1538 0601 Bit rate enum 0 = 300 1 = 600 2 = 1200 3 = 2400 4 = 4800...
  • Page 55: Test Value Registers

    (decimal) (hexadecimal) MajorMinorVersion Software version (for example “1.2.3”) VendorUrl “http://www.vaisala.com/” ProductName "Humidity and Temperature Probe HMP4" ModelName Configuration code UserApplicationName User definable information text (see configration register 0A00 SerialNumber Serial number of the device (for example “K0710040”) Calibration date Date of the factory calibration...
  • Page 56: Modbus Communication Examples

    HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A A.5 Modbus Communication Examples Reading Relative Humidity Value Device address used in the following examples is 240 (F0 The values returned by the device differ depending on the ambient conditions and/or device settings. Your device might not return exactly same values.
  • Page 57 Appendix A – Modbus Reference Writing Pressure Compensation Value Request Response Bytes on the Line Description Bytes on the Line Description (Hexadecimal) (Hexadecimal) (silence for 3.5 bytes) Start of Modbus RTU (silence for 3.5 bytes) Start of Modbus RTU frame frame Probe address Probe address...
  • Page 58 HMP4, HMP5, HMP7, HMP8, TMP1 User Guide M212022EN-A Communication Description Register address 769 (1-based Modbus documentation format) = 0300 (0-based format used in actual communication). Data format Two 16-bit Modbus registers interpreted as IEEE 754 binary32 floating point value, least significant word first.
  • Page 59: Online Store

    Please see the applicable supply contract or Conditions of Sale for details of the warranty for each product. Technical Support Contact Vaisala technical support at helpdesk@vaisala.com. Provide at least the following supporting information: • Product name, model, and serial number •...
  • Page 60 www. v aisala.com...
