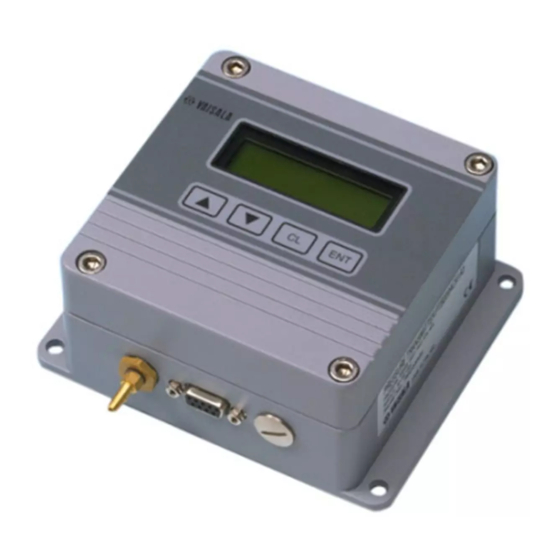

Vaisala PTB220 Series User Manual

Digital barometers
Hide thumbs
Table of Contents

Advertisement

Quick Links

PTB220 Series Digital
Barometers
U
'
G
SER
S
UIDE
M210194
-A
EN
2001
AUGUST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PTB220 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vaisala PTB220 Series

Summary of Contents for Vaisala PTB220 Series

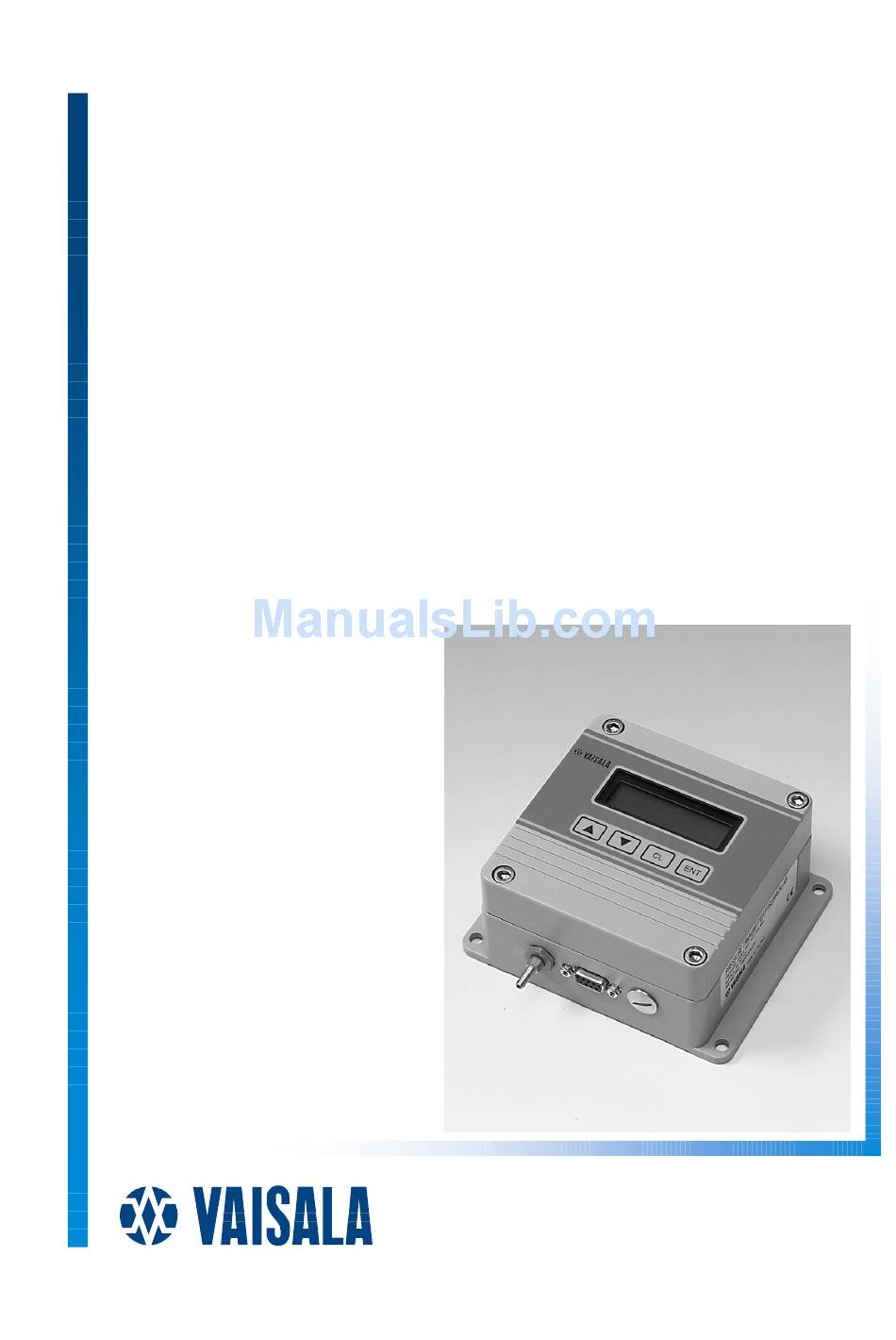

  • Page 1 PTB220 Series Digital Barometers UIDE M210194 2001 AUGUST...
