Summary of Contents for Analytic Systems BCD300 series

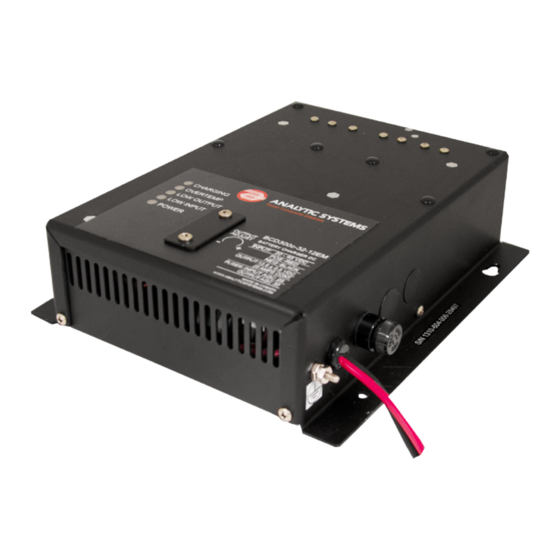

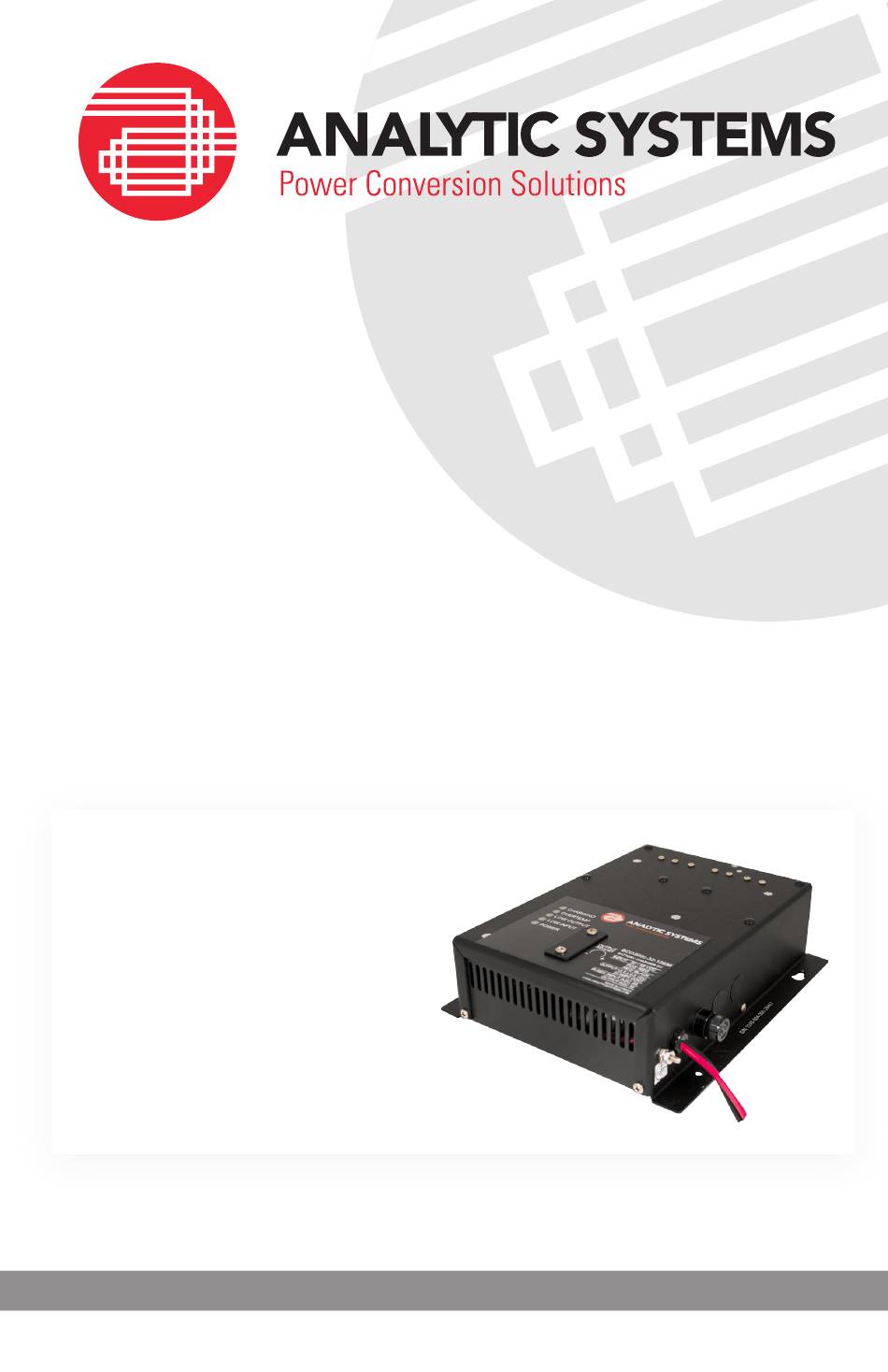

- Page 1 INSTALLATION & OPERATION MANUAL BCD300 DC Battery Charger An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
- Page 2 Copyright (2005-2014) Analytic Systems Ware (1993) Ltd.
-
Page 3: Important & Safety Instructions
IMPORTANT & SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS — This manual contains important safety and operating instructions for the battery charger. ALL BATTERY CHARGERS 1. CAUTION — To reduce risk of injury, charge only lead acid or sealed gel cell type rechargeable batteries. -
Page 4: Battery Charger Location
Connect and disconnect DC output connections only after setting battery charger switch to off position. Analytic Systems does not recommend the use of the BCD300 Series DC Battery Chargers in life support applications where failure or malfunction of this product can be reasonably expected to cause failure of the life support device or to significantly affect its safety or effectiveness. - Page 5 On/Off control. The BCD300 Series is capable of charging up to two independent banks of batteries. The two stage charging profile charges the batteries at a constant current equal to the maximum continuous output of the unit.
-
Page 6: Specifications
18-8 Stainless Weight 4.0 lb / 1.8 kg * This is Analytic Systems’ suggested range. Please consult your battery manufacturer for their recommendations. * Specifications subjects to change without notice. Designed and manufactured by: ANALYTIC SYSTEMS WARE (1993) LTD. 8128 River Way p. -
Page 7: Installation
Red wire to Positive, and the Black wire to Negative. If the unit is being run from a 24V battery system, use a 30 amp panel breaker to feed power to it, and use a 20 amp panel breaker for a 32V battery system. Each BCD300 Series battery charger should have its own breaker in the panel. -
Page 8: Troubleshooting
banks according to their relative states of charge. During this time, the red ‘Charging’ LED will be on. If the batteries are seriously discharged, the ‘Low Output’ LED and the audible alarm will also come on. After a period of time, which may be minutes to hours, the batteries will reach the float voltage, and the charging current will reduce as necessary to maintain the batteries at that voltage. - Page 9 If the green ‘Output On’ LED is on, but there is no voltage at the output terminals, check the output fuses. If they are blown, replace them with AGC 30A fuses. If there is still no voltage at the terminals, the unit is defective, and must be returned to the factory or an authorized service center for repair.
-
Page 10: Remote Control Option
Remote Control Option A remote control panel may be connected to the inverter using a 9-pin D-connector, which attaches to the front panel of the battery charger. The remote control panel and D connector are part of the remote control option. The remote control panel allows the unit to be operated remotely as well as duplicating all the diagnostic indicators and audible alarm. - Page 11 Special Services & Options Conformal Coating INCLUDED ON ALL UNITS UNLESS REQUESTED NOT TO as of April 1, 2014 Option “c” Ruggedization Package (EXTRA Conformal Coating and RTV Compound) Option “v” Marine / Industrial Pkg (EXTRA Conformal dipping and RTV Compound) Option “MS”...
-
Page 15: Limited Warranty
2 Years from date of manufacture for non-standard or OEM products 1 Year from date of manufacture for encapsulated products. 3. Analytic Systems will determine eligibility for warranty from the date of purchase shown on the warranty card when returned within 30 days, or... - Page 16 An ISO9001 and AS9100 Registered Company Battery Chargers • Inverters • Power Supplies • Voltage Converters 8128 River Way, Delta B.C. V4G 1K5 Canada T. 604.946.9981 F. 604.946.9983 TF. 800.668.3884 (US/CANADA) www.analyticsystems.com...
