- Page 1 ZigBee -Pulse Signal Detector User Manual Pulse Signal Detector Model: Z801TXB Compatible with ZigBee Home Automation Profile 201040210 FW V3.1 HW V4.3/V4.4...
- Page 2 Model: Z801TXB Binding Key Status (LED1) Network (LED2) Signal 1 Signal 2 Signal 3 Signal 4 Signal 5 Back View Battery Compartment...
-
Page 3: Product Specification

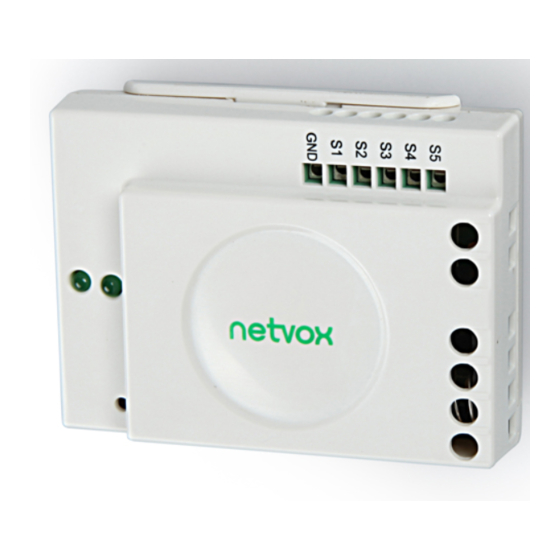

Introduction NETVOX Z801TXB is a alarm event reporting device. It acts as an end device in the ZigBee Home Automation Profile network. It allows you to attach up to five security zone sensors. When signal from the sensor is detected the device sends a warning message to its enrolled security center (CIE device) in the network to notify the user. - Page 4 Startup and Network Association tep 1. To allow Z801TXB to function, it must first join to a ZigBee network. When it is given powered it will automatically start searching for an existed network. So before you give power to Z801TXB make sure it is within the wireless coverage distance (~70 meters or...
- Page 5 The enrollment process will start. Assigning Z801TXB to a preferred CIE system Z801TXB can be manually enrolled to a preferred CIE device via external application software such as Netvox’s ZiG-BUTLER PC based software or any other 3 party device.
-
Page 6: How To Use
Z801TXB is capable of storing and saving includes network routing information. If you wish to remove Z801TXB from the network, you would need to clear it to join to a new network by simply reset the device to restore to the factory setting. -
Page 7: Battery Disposal
Connect the sensor cable into the signal input ports. One sensor to one signal port configuration. Also connect the sensor’s negative cable to the common ground port. Since Z801TXB can be triggered by signal change, Z801TXB sensor selection must be those that give either open or close circuit configuration. - Page 8 Potential Device Customizing Depends on which two model of Z801TXB purchased. It comes with either 3 or 5 sensor connection ports. To specify ZigBee zone type given in HA Profile for your needs, at your next purchase order Netvox offers to re-write the zone type for each of these ports. Write to us and list out which S port to be which of the 12 available HA Profile zone types in the table bellow.
- Page 9 Clusters of Home Automation for Z801TXB Home Automation device feature is defined by the endpoint which contains functional clusters. Table 1 lists clusters for the endpoint of Z801TXB End Point(s)： 0x01、0x02、 0x03、 0x04、 0x05 Device ID：IAS Zone （0x0402） EndPoint Cluster ID...
- Page 10 Identifie Name Type Rang Access Default Mandator Optional string bytes only 0x0006 DateCode Character 0 – 16 Read 20140210 string bytes only 0x0007 PowerSource 8-bit 0x00 Read Enumeratio – 0xff only 0x0010 LocationDescriptio Character 0 – 16 Read/writ -------- string bytes 0x0011 PhysicalEnvironme...
-
Page 11: Important Maintenance Instructions
Important Maintenance Instructions As the device is not water proof it is recommended to keep the device in a dry place. Liquid and heavy moisture contains minerals that may oxidize the electronic circuitry. In case of liquid spill, please leave the device to completely dry before storing or using. ...
