Basic Harness; Positive 3-Wire Door Lock System -Polarity Fuse - Code Alarm CA-130 Installation Instructions Manual

1. Basic Harness (B)
• Remove fuses from Module before installation.
• Solder and tape all connections.
1/B Parking Light Output +/- (16 AWG) (WHITE)
Locate the vehicle parking light wire.
Verification: This wire will register either positive voltage or ground
when the parking lights are turned on. Voltage does not vary when
dimmer switch is adjusted. Refer to the Vehicle Wire Color and
Location Chart for the wire color, polarity, and location.
Connect the 1/B wire to the parking light wire.
After installation, set the polarity of this circuit by moving the
fuse inside of the control module to positive (+) or negative (-).
2/B Lock Motor Wire (16 AWG) (BLUE)
1/A Lock Switch Wire 87A (16 AWG) (BLUE/BLACK)
14/B Unlock Motor Wire (16 AWG) (GREEN)
3/A Unlock Switch Wire 87A (16AWG) (GREEN/BLACK)
24/B Second Door Unlock 500mA (16 AWG -) (BLUE/GREEN)
After installation, set the polarity of this circuit by moving the
fuse inside of the control module to positive (+) or negative (-).
Type 1: Positive 3-wire door lock system -
Polarity Fuse = Positive (+)
Single-stage unlock
Connect the 2/B wire to the vehicle
lock wire.
Connect the 14/B wire to the vehicle
unlock wire.
Two-stage unlock
Connect the 2/B wire to the vehicle
lock wire.
Use a SPDT relay (not supplied)
and connect the 24/B wire to the
vehicle unlock wire as shown in
Diagram 1.
CA-130 install rev 7-04.pmd
IMPORTANT!!!
IMPORTANT!
IMPORTANT!

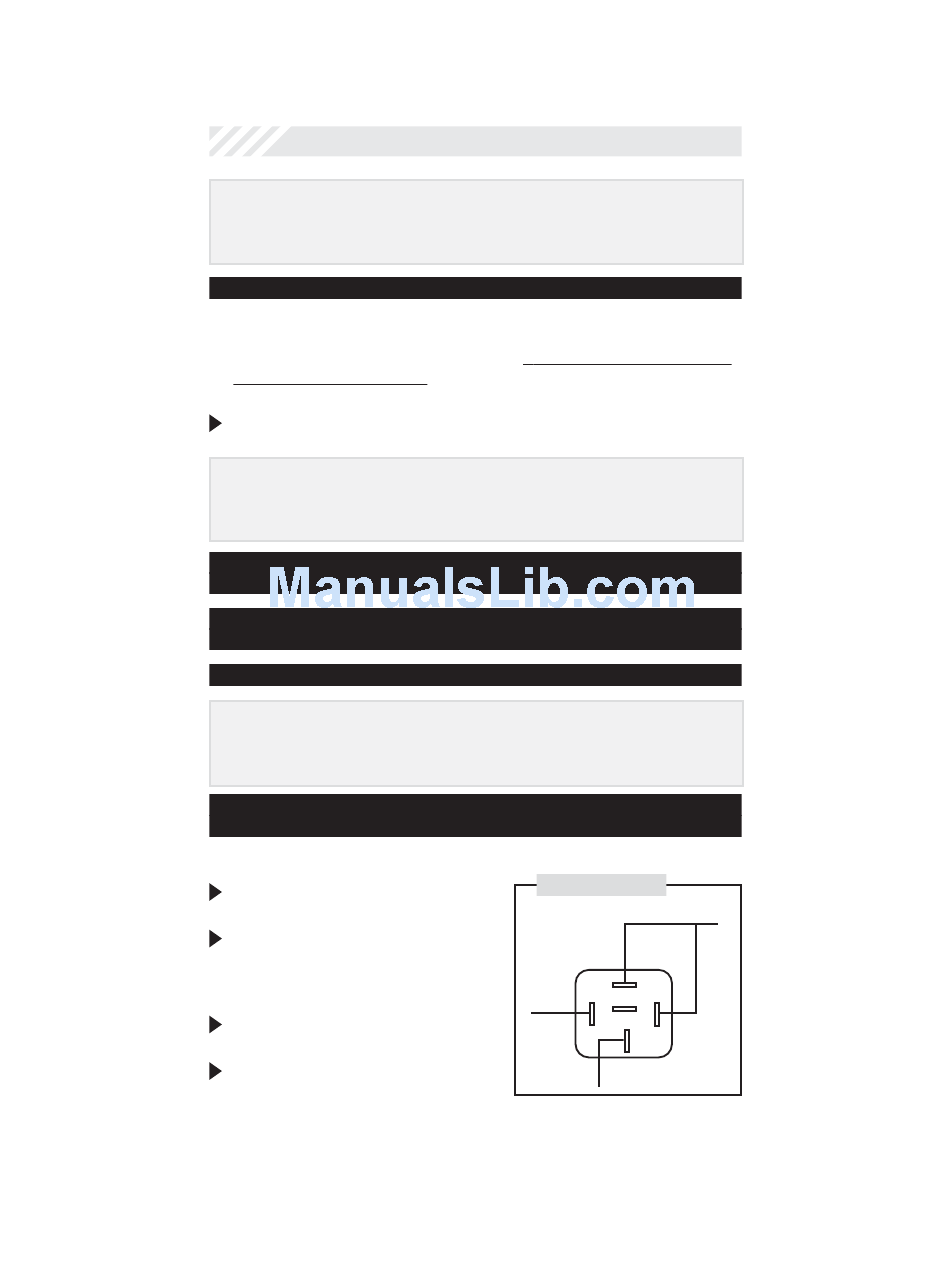

Diagram 1
24/B
3
Fused + 12v
Fused + 12v
85
86
87
87a
30
To vehicle unlock wire
