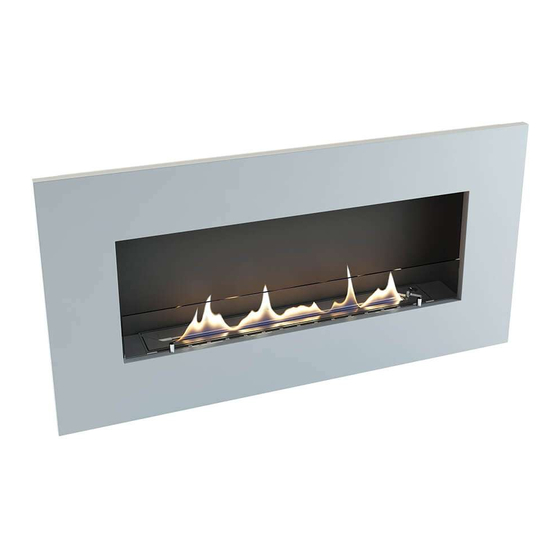

Summary of Contents for Spartherm Oxford

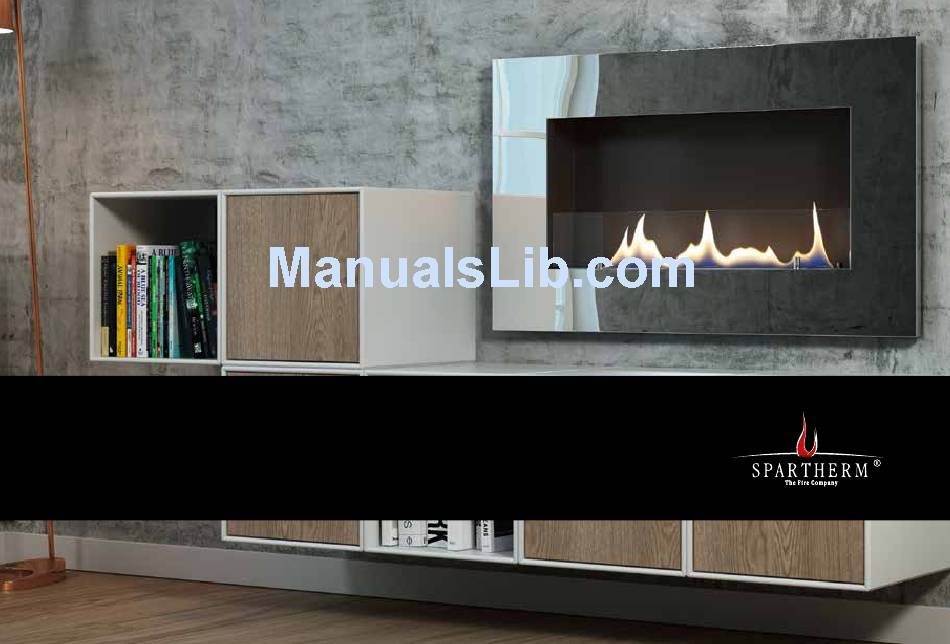

- Page 1 Installation and Operating Manual ebios fire - Oxford...
- Page 2 FOREWORD / QUALITY PHILOSOPHY You have chosen a SPARTHERM ebios-fire. Thank you for your confidence in our technology. In a world characterised by excess and mass production, the good name of our firm is inextricably linked to the credo of our owner, Gerhard Manfred Rokossa: “High technical quality combined with modern design and on-site customer...
-
Page 3: Table Of Contents
3. Operating Manual 6.9 Liability 3.1 General information on operation 6.10 Final comments 3.2 Combustible 3.3. Startup 7. Declaration from the builder of a custom-made piece of furniture / 3.4 Refilling the burner fireplace with the Oxford 600/700 GB 3... -
Page 4: Important Information
IMPORTANT INFORMATION 1. GENERAL INFORMATION As per the German Equipment and Product Safety Act (GPSG) and our Small children, elderly or infirm persons: As is the case with all open statutory duty to notify, we would like to inform you about heating with this flames, it is expedient that you attach a protective fixture for these groups of persons. -
Page 5: Scope Of Delivery - Burner
• Wick burner made of stainless steel with Ceramat FN mat 2.1 TECHNICAL DATA • Reactor containment made of stainless steel • Bottle for moistening the burner mat • Cold hand for operating the slide control Oxford 600 Oxford 700 • Funnel for filling the burner • Stick lighter Bioethanol... -
Page 6: Dimensional Drawing
Only permitted and sufficiently strong transport aids may be used to trans- port the ebios-fire. The following points must be noted to ensure safe and problem-free transport. Oxford 600 / 700 Wall installation • There must be no fuel in the tank during transportation. GB 6... -
Page 7: Installation Site
Protect the cladding and visible elements of the fireplace furniture from soiling and damage during installation and transportation. The ebios-fire Oxford 600/700 is a device for wall mounting or for being installed in a non-combustible wall. A flue gas guiding is not required for 2.5 INSTALLATION SITE... -
Page 8: Dimensional Drawing For Wall Suspended Assembly
2.6.1 DIMENSIONAL DRAWING FOR WALL SUS- PENDED ASSEMBLY Mounting holes Ø 6 Exploded view drawing Oxford 600/700 Oxford 600 - View from behind Item Name Quantity Wall build in construction kit (only for models for building in) Body Safety container... -
Page 9: Dimensional Drawing For Build In Version
Detail A Hook Hook Detail B Oxford 600 - Wall build in construction kit Detail C Assembly step 1: Fix the wall holder (1) to the attachment wall. In doing so, use the appropri- ate fastening material. Please obtain the drilling pattern from the dimen- sional drawing for wall-mounted installation. - Page 10 Note: Press the spacer on the back of the stove body (2) backwards to remove it. (see images below). Fig. 2 Carefully insert the burner into the reactor containment (3) so that all four Assembly step 3: corners are resting. Remove the cold hand. Insert the reactor containment (3) into the body (2).
- Page 11 2. In-wall assembly: Assembly step 3: Insert the reactor containment (3) into the body (2). The container must be inserted flush to the back wall of the body. Mounting wall Hook Assembly step 4: Next, hang the window frame (4) onto the body (2). The mounting hooks are used for fixing.
-
Page 12: Fire Protection / Minimum Distances
2.6.4 FIRE PROTECTION / MINIMUM DISTANCES ebios burner Wall Fig. 4 Carefully insert the burner into the reactor containment (3) so that all four corners are resting. Remove the cold hand. Mounting on a straight wall Assembly step 6: Insert the protective glass (5) into the mounting points provided. In the last step, please secure the body on to the wall build in construction kit (1) using ebios burner Wall... -
Page 13: Combustion Air Supply
Read these installation and operating instructions carefully before installing and starting up your ebios-fire. All items are to be removed from the ebios- fire Oxford 600/700 (except the burner unit). Please follow the regulations for fire protection and dangerous goods! ebios burner 3.1 GENERAL INFORMATION ON OPERATION... -
Page 14: Combustible
• It is recommended to open a window during operation. • Only fill the burner via the filling opening and never via the burner • Several decorative ethanol fireplaces may only be operated if the fuel channel! consumption rate of all devices together does not exceed 0.5 l/h and if •... -
Page 15: Startup
3.3. STARTUP The ebios-fire-Oxford 600/700 is supplied with an empty burner to prevent 6. Take the bottle to wet the burner. Insert the bottle with the opening any ethanol from flowing out or evaporating during transit. Ensure (particu- into the tank opening so that it projects into the fuel. -
Page 16: Refilling The Burner
Empty this immediately and before lighting the burner. Clean the surface of the burner until it is dry and The ebios-fire–Oxford 600/700 may only be cleaned when cold. completely free of ethanol. 4.1 CLEANING CLADDING PARTS Caution: Ethanol is highly combustible. -
Page 17: Furniture And Glass Becomes Sooted Heavily, Rapidly And Unevenly
These standard warranty terms apply for the contractual relationship • Fuel was spilt when filling the device? between the manufacturer, Spartherm Feuerungstechnik GmbH, and the dealer/distributor. They are not congruent with the contractual and warranty terms which the dealer/distributor offers his customers in individual cases. -
Page 18: General Information
Spartherm Feuerungstechnik GmbH is not obliged to satisfy any claim if such documentation is not presented. GB 18... -
Page 19: Extension Of The Warranty Period
The furniture or stove builder must confirm to the buyer of the custom- The warranty period shall automatically be extended, where claims made in made piece of furniture / fireplace with the Oxford 600/700 that it has respect of these warranty provisions result in the repair or replacement of been properly constructed (piece of furniture / stove) and installed (Oxford defective equipment. - Page 20 IT Il vostro rivenditore specializzato | E Sus comercios especializados NL Uw vakhandelaar | PL Państwa sprzedawca | РУС Ваш дилер SPARTHERM Feuerungstechnik GmbH · Maschweg 38 · D-49324 Melle Phone +49 (0) 5422 94 41-0 · Fax +49 (0) 5422 9441-14 · www.spartherm.com...
