Vacmaster VSB1801NA Use & Care Manual

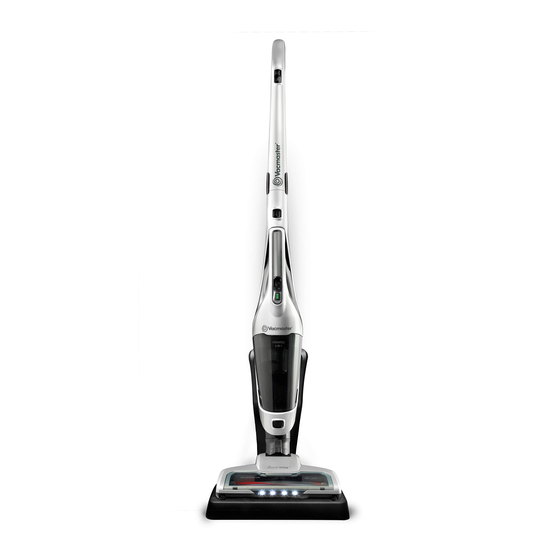

18v 2-in-1 cordless swivel-stick vacuum
Hide thumbs

Advertisement

Table of Contents

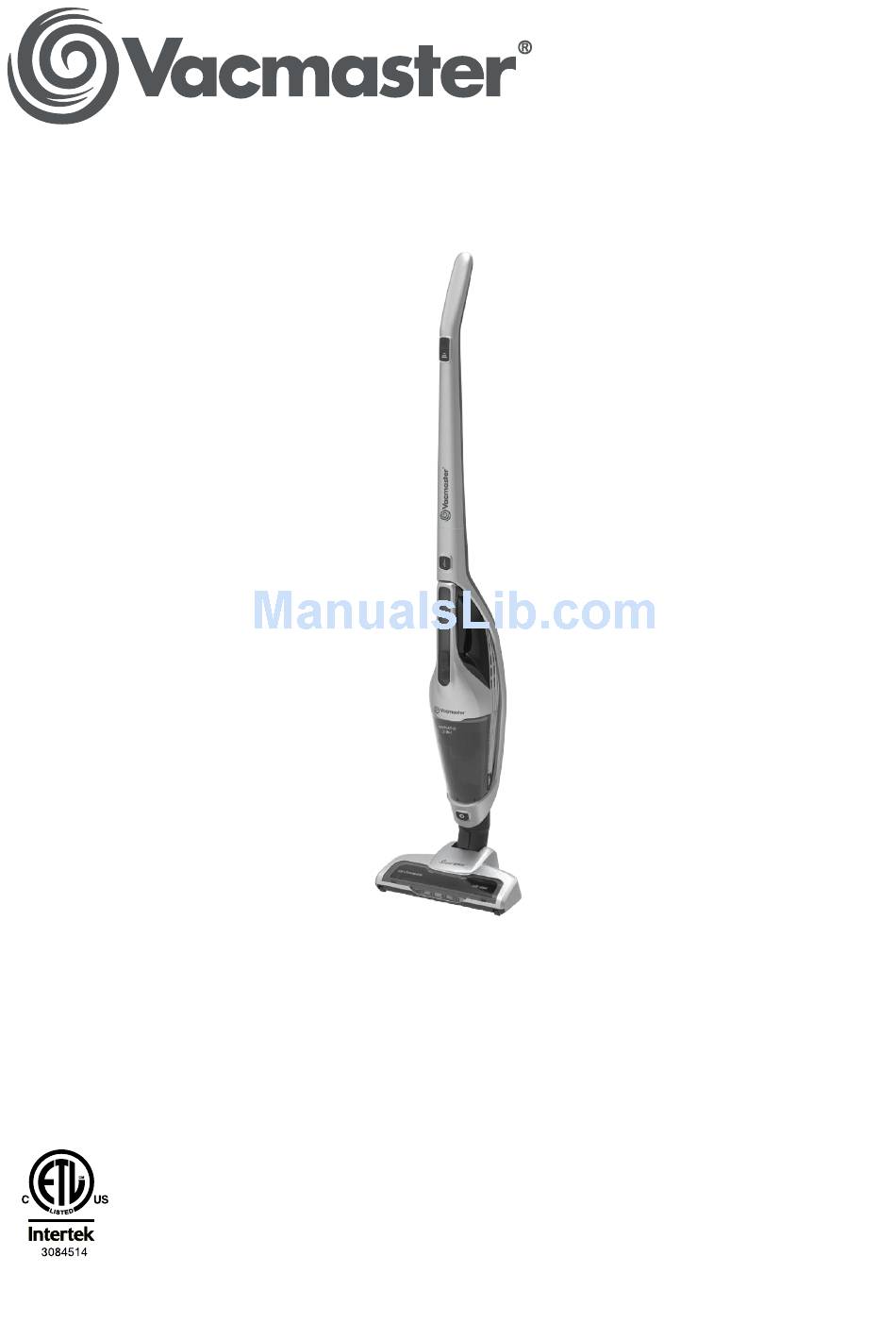

Use & Care Guide
Swivel
18V 2-in-1 Cordless
-Stick™ Vacuum
MODEL NO.VSB1801NA
www.vacmaster.com
Cleva North America, Inc.
Conforms to UL
Greenville, SC 29607
Standard UL1017
(866) 384-8432
Certified to CSA STD
Made in China
C22.2 NO.243

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSB1801NA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vacmaster VSB1801NA

Summary of Contents for Vacmaster VSB1801NA

  • Page 1 Use & Care Guide Swivel 18V 2-in-1 Cordless -Stick™ Vacuum MODEL NO.VSB1801NA www.vacmaster.com Cleva North America, Inc. Conforms to UL Greenville, SC 29607 Standard UL1017 (866) 384-8432 Certified to CSA STD Made in China C22.2 NO.243...

  • Page 2: Table Of Contents

    Maintaining Your Vacuum .....14 ....................... Troubleshooting ..17 ® Thank you for purchasing this Vacmaster vacuum cleaner. With it you are obtaining a high quality product that is engineered for optimal performance. FOR YOUR SAFETY Read and understand this manual before use.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING - To reduce the risk of fire, electric shock, or injury: 1.
  • Page 4 14. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to hand vacuum, picking up or carrying the appliance. 15. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
  • Page 5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 6 Product Disposal This product contains an internal Lithium-ion battery pack formulated from environmentally sensitive materials. This product must be disposed of properly with due care for the environment. Do not dispose of product with household garbage. Consult your local waste authority for information regarding available recycling or disposal options.

  • Page 7: Warranty

    WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call (866) 384-8432. • This warranty does not cover filters, which are expendable parts that can wear out from normal use within the warranty period.

  • Page 8: Getting To Know Your Vacuum

    Nozzle Release Button Motorized Brush Powerhead Charging Stand LED Headlights REPLACEMENT PARTS Item Part No. Filter VMSTRF1 Foam 561022105 Charging Stand 561022108 Combo Accessory Tool 561022109 Charging Adapter 561022106 On-Board Storage Clip 561022107 Available online at www.vacmaster.com or call (866) 384-8432.

  • Page 9: General Assembly Instructions

    GENERAL ASSEMBLY INSTRUCTIONS Assembly Instructions: 1) Fit the end of the main body onto the neck of the motorized powerhead and click into place. 2) Insert the handle into the top of the main body and fix in position with the supplied locking screw.
  • Page 10 4) Insert vacuum support into charging base and lock into place. 5) Insert the charging adapter into the charging port on the side of charging base. 6) Plug the adapter into a wall outlet. Note: Use only the charger supplied with your cleaner to recharge. 7) Insert on-board storage clip onto handle and slide down lightly.
  • Page 11 Charging Instructions: 1) Before charging, make sure unit is OFF. Insert the vacuum cleaner onto the charger as shown. Make sure the charging adapter is plugged into an outlet. 2) The battery indicator will show the progress of the charge. While the vacuum is being charged, the battery charge indicator will be flashing.

  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS Using Your Vacuum Cleaner: Once vacuum cleaner is charged, lift off the charging base. 1) To start the vacuum, push the Power button. The vacuum automatically starts in the HIGH speed position. 2) To switch the speed to LOW, push the speed shift button. Press this button again to switch back to HIGH speed.
  • Page 13 3) To clean difficult to reach areas, use the crevice tool or dusting brush by inserting the end of the tool into the hand vacuum. CAUTION Moving parts! To reduce the risk of personal injury, DO NOT touch the brush roll when vacuum is on.

  • Page 14: Maintaining Your Vacuum

    MAINTAINING YOUR VACUUM CAUTION To reduce the risk of shock, remove vacuum cleaner from the charging base, and turn off before performing any service or maintenance. Emptying the Dust Container & Cleaning the Filter 1) Remove the hand vacuum from the main body by pressing the release button.
  • Page 15 IMPORTANT: The filter, foam and basket must be completely dry before reuse. 6) Insert the clean and dry foam along with the filter into the basket. Fit the basket into the dust cup and reconnect the dust cup to the hand vacuum. Note: Use warm water when cleaning the foam.
  • Page 16 Step 3 Step 4 5) Lock the brush in place by sliding the tab in the direction of the arrow. To Remove Powerhead Blockages: 1) To clean out the powerhead, press the nozzle release button and pull the powerhead away from the main vacuum body. Pins 2) Carefully remove any debris or blockage from the inside of the powerhead.

  • Page 17: Troubleshooting

    TROUBLESHOOTING Should you have any problem(s) with your vacuum cleaner, review the table below for solutions to minor performance issues. WARNING Disconnect electrical supply before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury. PROBLEM POSSIBLE CAUSE SOLUTION...
  • Page 18 Dust cup is full. Empty dust cup. Filter needs cleaning. Follow filter cleaning instructions on page 14. Vacuum not Filter needs to be To purchase online at www.vacmaster.com or picking up or replaced. call (866) 384-8432. suction power is weak.
