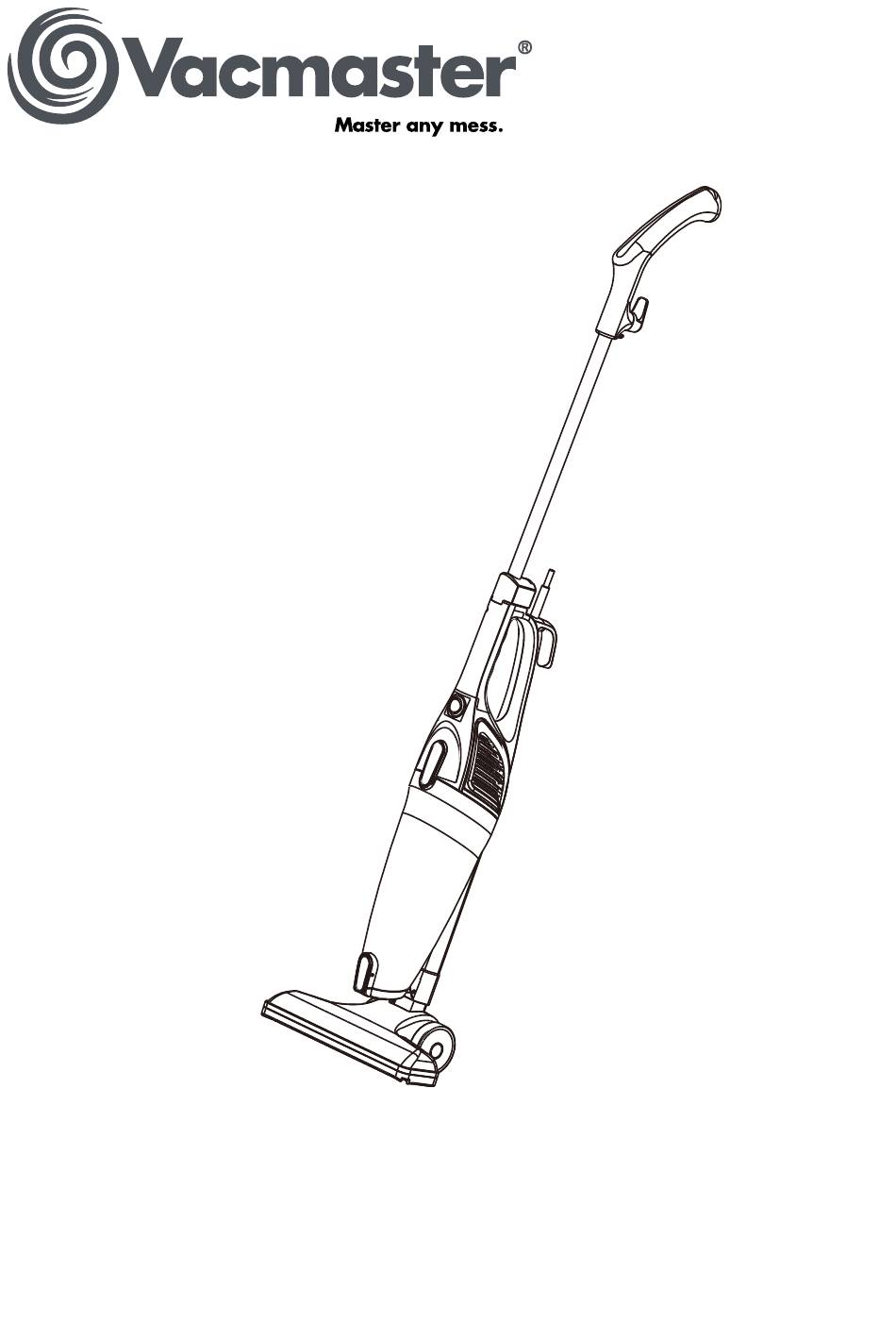

- Page 1 Use & Care Guide 2-in-1 Corded Stick Vacuum MODEL NO. VSH01 www.vacmaster.com Cleva North America, Inc. Greenville, SC 29607 (866) 384-8432 Made in China...
-
Page 2: Table Of Contents
Operating Instructions........................9-13 Maintaining Your Vacuum........................ 14-17 Troubleshooting..........................18-19 Thank you for purchasing this Vacmaster® vacuum cleaner. With it you are obtaining a high quality product that is engineered for optimal performance. FOR YOUR SAFETY Read and understand this manual before use. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING - To reduce the risk of fire, electric shock, or injury: •... -
Page 4: Warranty
WITH PROOF OF SALE, a defective appliance will be replaced free of charge. For warranty coverage details to obtain free replacement, visit the web page: www.vacmaster.com or call (866) 384-8432. • This warranty does not cover filters, which are expendable parts that can wear out from normal use within the warranty period. -
Page 5: Getting To Know Your Vacuum
HEPA Filter Lower Cord Hook On/Off Switch Dust Cup Release Button Power Cord Hand Vacuum Dust Cup Dust Release Button Floor Nozzle REPLACEMENT PARTS Item Part No. Filter 571001109 Crevice Tool 571001135 Available online at www.vacmaster.com or call (866) 384-8432. -
Page 6: General Assembly Instructions
GENERAL ASSEMBLY INSTRUCTIONS 1. Align and insert the floor nozzle into the suction port of the hand vacuum. 2. Open the wand latch located on the top of the hand vacuum. Wand Latch... - Page 7 3. Insert the end of the wand into the hole with the front of the wand aligning with indent of the hand vacuum. Secure the wand by closing the latch until you hear a click. Wand Latch 4. Make sure the upper cord hook is in upright position as shown. Wrap the power cord loosely around the upper and lower cord hooks.
- Page 8 5. Lock power cord plug onto the power cord. Power Cord Plug Power Cord WARNING Wrapping the cord too tightly with excessive stress on the cord can cause cord damage. A damaged cord is an electrical shock hazard and could cause personal injury or damage.
-
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Before using, choose the stick or hand vacuum mode for cleaning. Using Your Stick Vacuum Note: Make sure the vacuum cleaner is completely assembled and the dust cup is empty before using. 1. Turn the upper cord hook to either side to release the power cord. Upper Cord Hook 2. - Page 10 WARNING To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet.
- Page 11 Using Your Hand Vacuum 1. To remove the wand, undo the wand latch and detach the wand from the main body. Then lock the latch until you hear a click. Wand Latch 2. Remove the floor nozzle from the hand vacuum. 3.
- Page 12 4. To turn the vacuum on, press the on/off switch to the ‘I’ position. I = ON On/Off Switch O = OFF 5. To use the crevice tool, insert one end of the tool into the hand vacuum for cleaning corners, edges, drawers, etc. 6.
- Page 13 Storing Your Vacuum 1. Gather the power cord and wrap it loosely around the upper and lower cord hooks. Upper Cord Hook Lower Cord Hook 2. Store the vacuum cleaner in a dry, indoor area, on the floor with the handle locked in the upright position.
-
Page 14: Maintaining Your Vacuum
MAINTAINING YOUR VACUUM CAUTION To reduce the risk of shock, disconnect the power cord, and turn off before performing any service or maintenance. Note: Use dry cloth to clean the outside of the unit. Do not allow any kind of liquid to enter the unit. - Page 15 Cleaning the Filter 1. Press the dust cup release button to remove the dust cup from the hand vacuum. Dust Cup Release Button 2. Remove the filter from the dust cup and clean the accumulated debris from the HEPA filter. HEPA Filter Dust Cup 3.
- Page 16 4. Place the clean and dry filter back to the dust cup. HEPA Filter Dust Cup 5. Align the slot at the back of the dust cup to the hand vacuum, and then push the dust cup to the hand vacuum until you hear a click. Dust Cup Release Button WARNING Do not operate vacuum cleaner without filter installed.
- Page 17 Removing Floor Nozzle Blockages 1. To clean out the floor nozzle, remove the floor nozzle from the main vacuum body. 2. Carefully remove any debris or blockage from the inside of the nozzle neck. 3. Reattach the floor nozzle onto the vacuum body. Note: Do not use scissors or other sharp objects to remove a blockage from the floor nozzle as these may damage the floor nozzle.
-
Page 18: Troubleshooting
Follow filter cleaning Filter needs cleaning. instructions on page 15. To purchase online at Filter needs to be www.vacmaster.com or replaced. call (866) 384-8432. The job of dirt pick-up is Check the nozzle and dust There is a clog in the...
