Instrument Description; Smart System Front View - CEM SMART System 5 Operation Manual

Interlock
Assembly
Air Shield
Interlock
Assembly
Cavity
Interlock
Assembly
Balance
Pan
Internal
Printer
Display
Keyboard
5

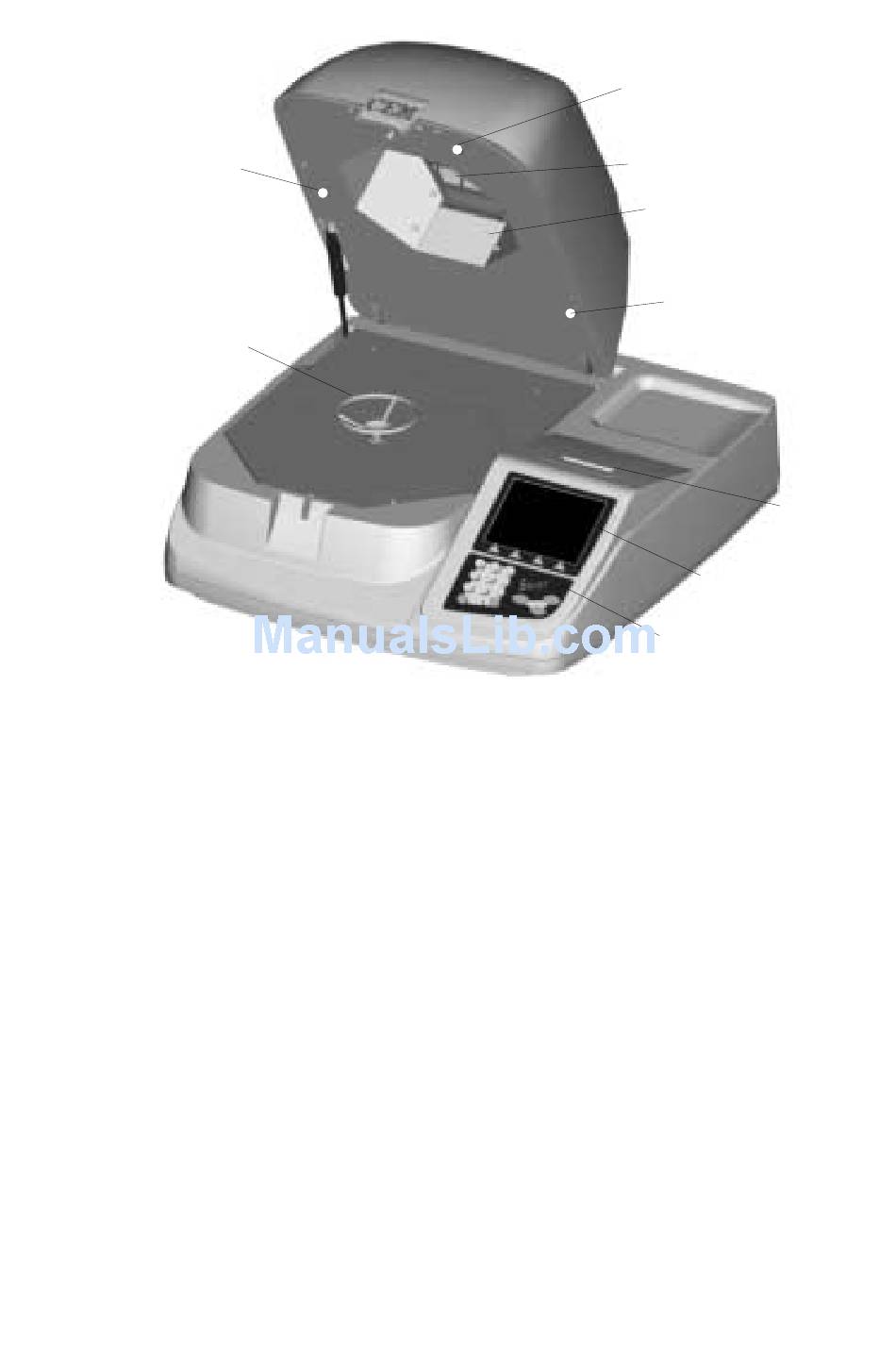

Figure 2. Smart System Front View

Instrument Description

Display – displays menu choices, instructional messages and analysis results on a
1/4 VGA black and white screen
5
Keyboard – controls operation of the SMART System . Temperature, time, or
other numeric data may be entered with the numeric keys as requested on the
display.
Internal Printer – provides printout of methods, data and results.
Cavity – decreases test times due to its patented compact Octawave™ design.
Air Shield – prevents air flow within the microwave cavity from affecting weight
measurements.
Balance Pan – holds sample and sample pads during analysis.
Interlock Assembly – monitors mating of cavity cover and instrument skirt.
