AXIS T90D Illuminator Series

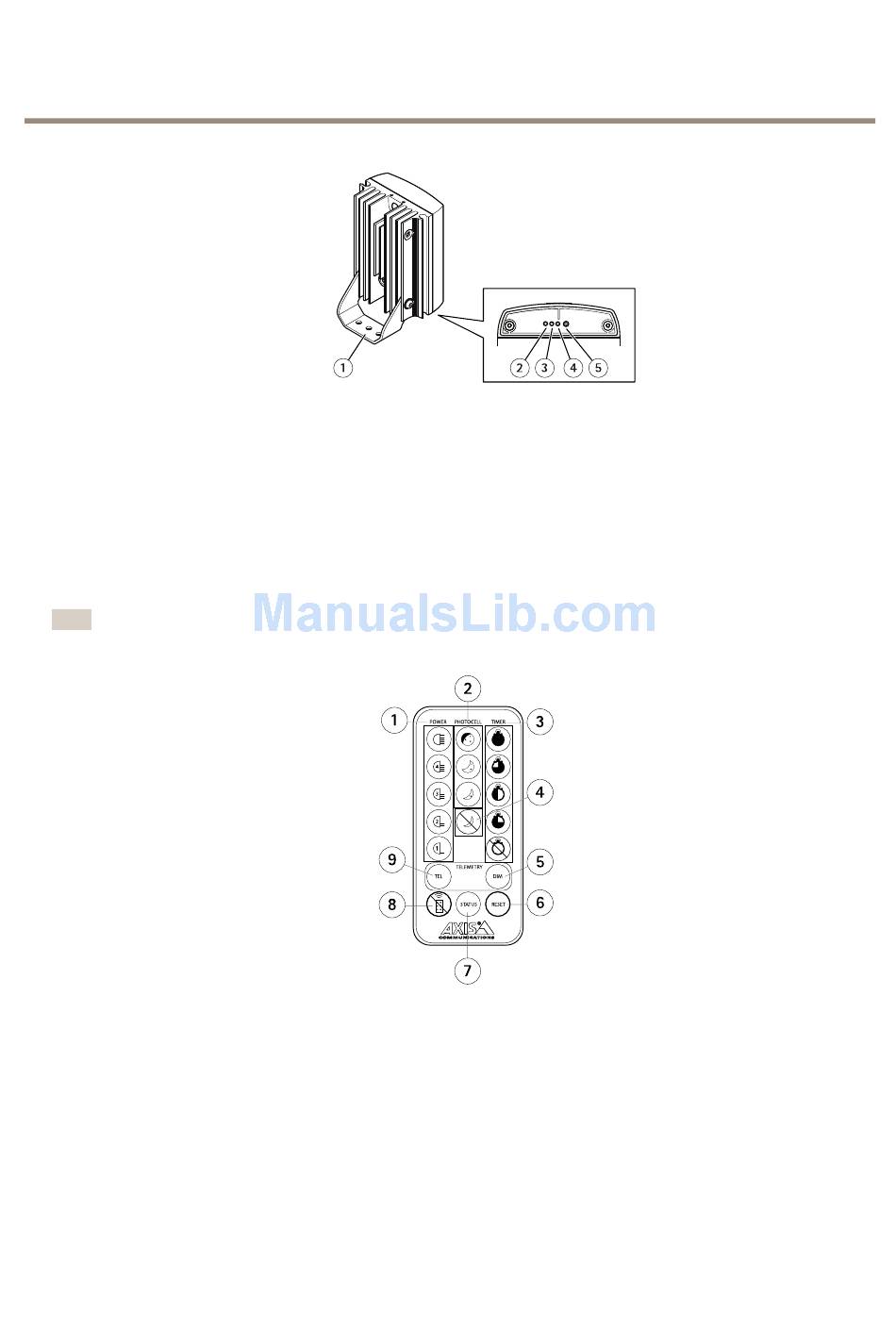

Product overview
1
Mounting bracket (pre-mounted)
2
Control button (left)
3
Left Hand Side LED (LHS)
4
Right Hand Side LED (RHS)
5
Control button (right)
The baseplate must be removed in order to access the two control buttons.

Remote control

Note
The remote control is an optional accessory.
1 Power level buttons
2 Photocell sensitivity buttons
3
Timer buttons
4
Photocell disable button
5
Telemetry dimming button
6
Reset button
7
Status button for LED and PIN
8 Disable remote control setup button
9
Telemetry input button

How to configure the wires (only for AC/DC versions)

Connect the power wires (red and black) to a power source equipment. For more information, see the Installation Guide.
