AXIS T90D Illuminator Series
Setup

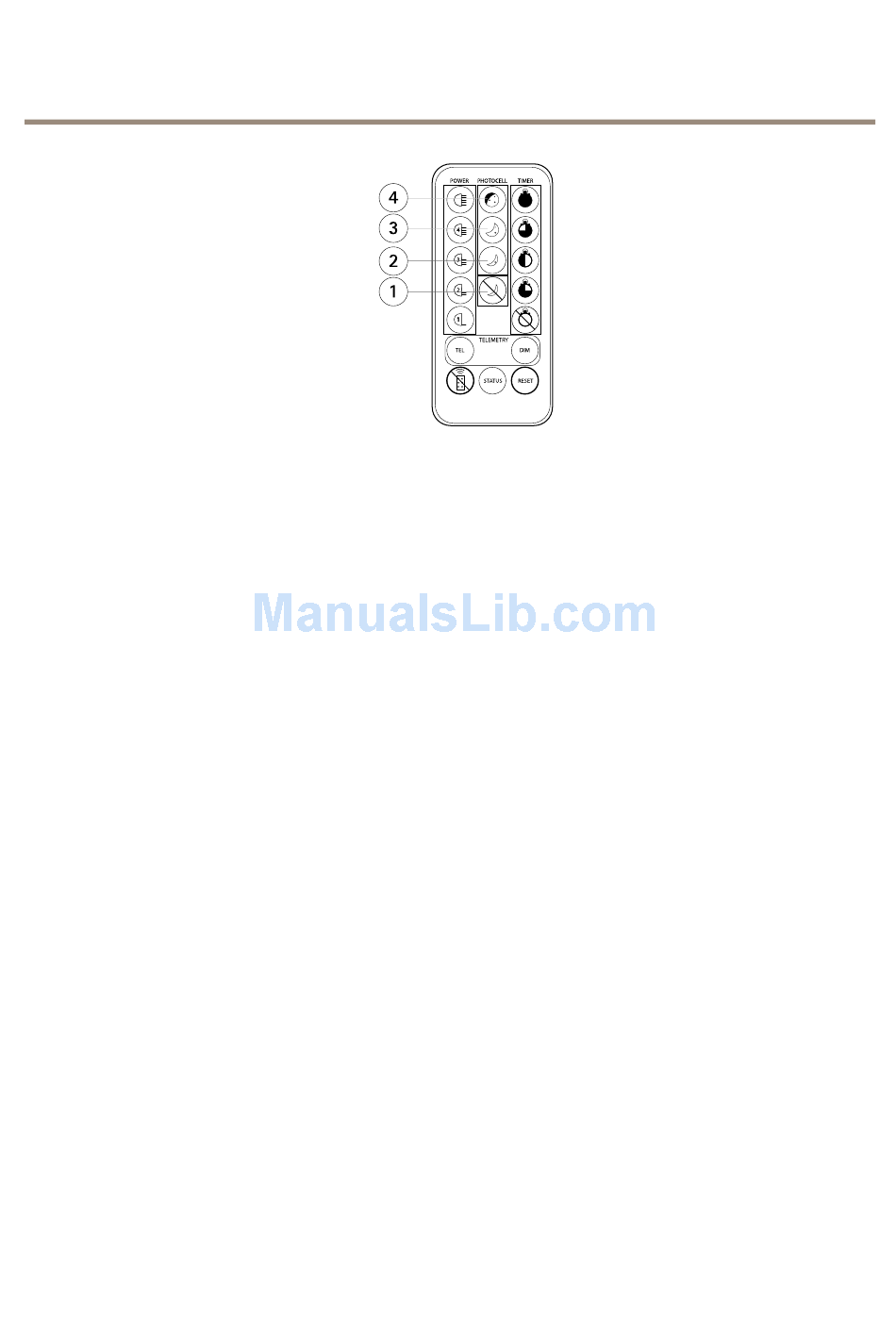

1 Photocell disabled
2
5 lux on, 15 lux off
3
10 lux on, 30 lux off
4
25 lux on, 50 lux off
With the control buttons
1. Press the left control button twice so that the left hand side LED turns solid green.
2. Press the right control button repeatedly. The right hand side LED indicates the sensitivity level:
- one green flash: 5 lux on, 15 lux off.
- two green flashes: 10 lux on, 30 lux off.
- three green flashes: 25 lux on, 50 lux off.
- solid red: photocell disabled.

How to enable or disable the LED indicators

With the remote control
1. Press the Status button to enable or disable the LED indicators.
With the control buttons
1. Press the left control button three times so that the left hand side LED turns solid amber.
2. Press the right control button repeatedly. The right hand side LED indicates whether the LED indicators are enabled
or disabled:
- solid green: LED indicators are enabled.
- solid red: LED indicators are disabled.
13
