AXIS T90D Illuminator Series
Setup
1. Go to Settings > System > I/O ports.

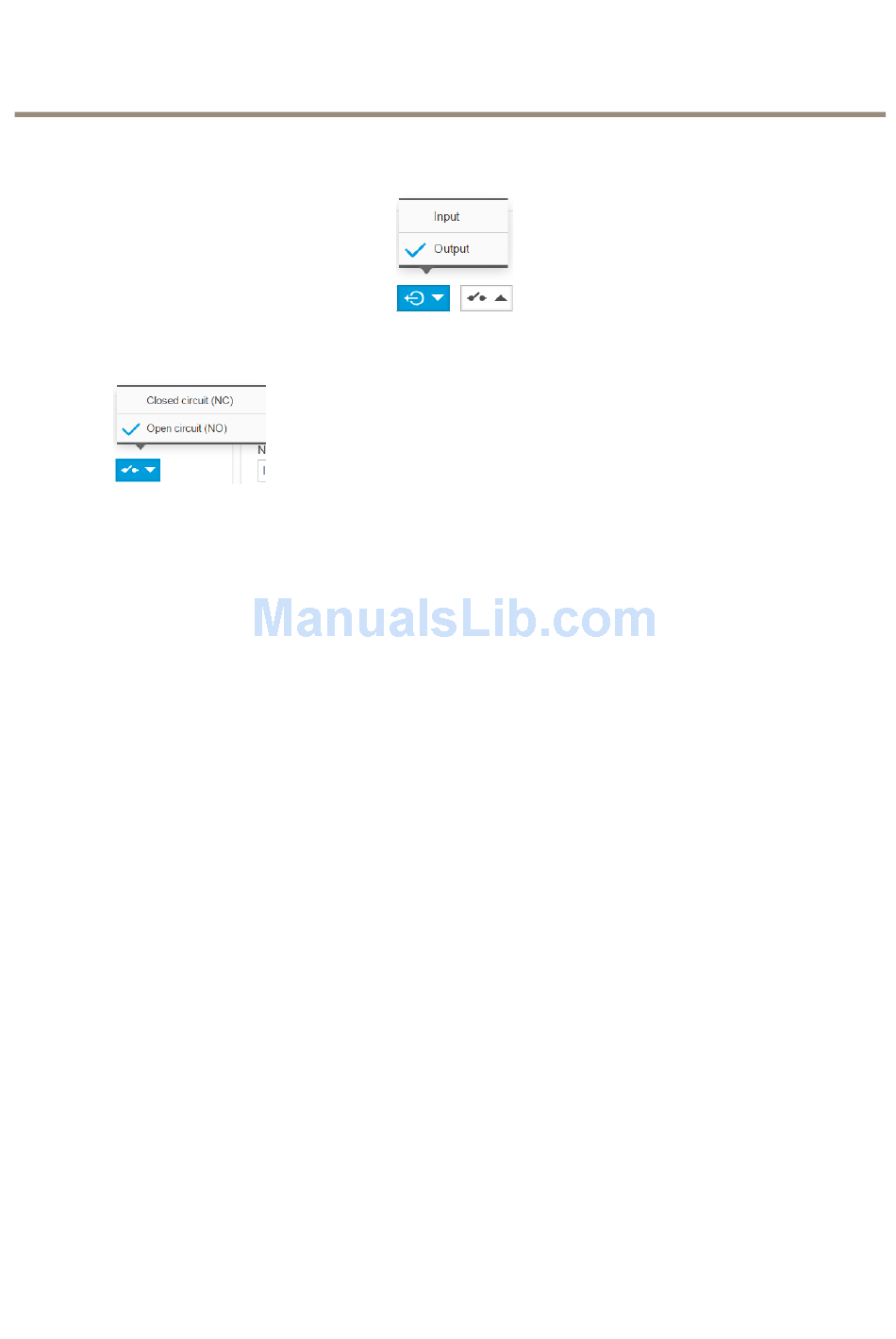

2. Select Output in the Port 2 drop-down list.
3. Give the output module a descriptive name, for example "Illuminator".
4. To make the illuminator turn on when the camera detects motion, select Open circuit in the drop-down list.
Verify in the camera's webpage that the AXIS Video Motion Detection application is running:
1. Go to Settings > Apps > AXIS Video Motion Detection.
2. Start the application if it is not already running.
3. Make sure you have set up the application according to your needs.
Create an action rule in the camera's webpage, to make the illuminator turn on when the camera detects motion:
1. Go to Settings > System > Events > Action rules and add an action rule.
2. Give the action rule a descriptive name, for example "Turn on illuminator".
3. From the list of triggers, select Applications and then select the motion detection application.
4. From the list of actions, select Output port and then select Output 2.
5. Click OK.
The illuminator will now turn on whenever the camera detects motion.

How to adjust the light intensity

There are five predefined levels of light intensity.
With the remote control
Use the power level buttons to select the required light intensity.
