5. Preparation for Installation

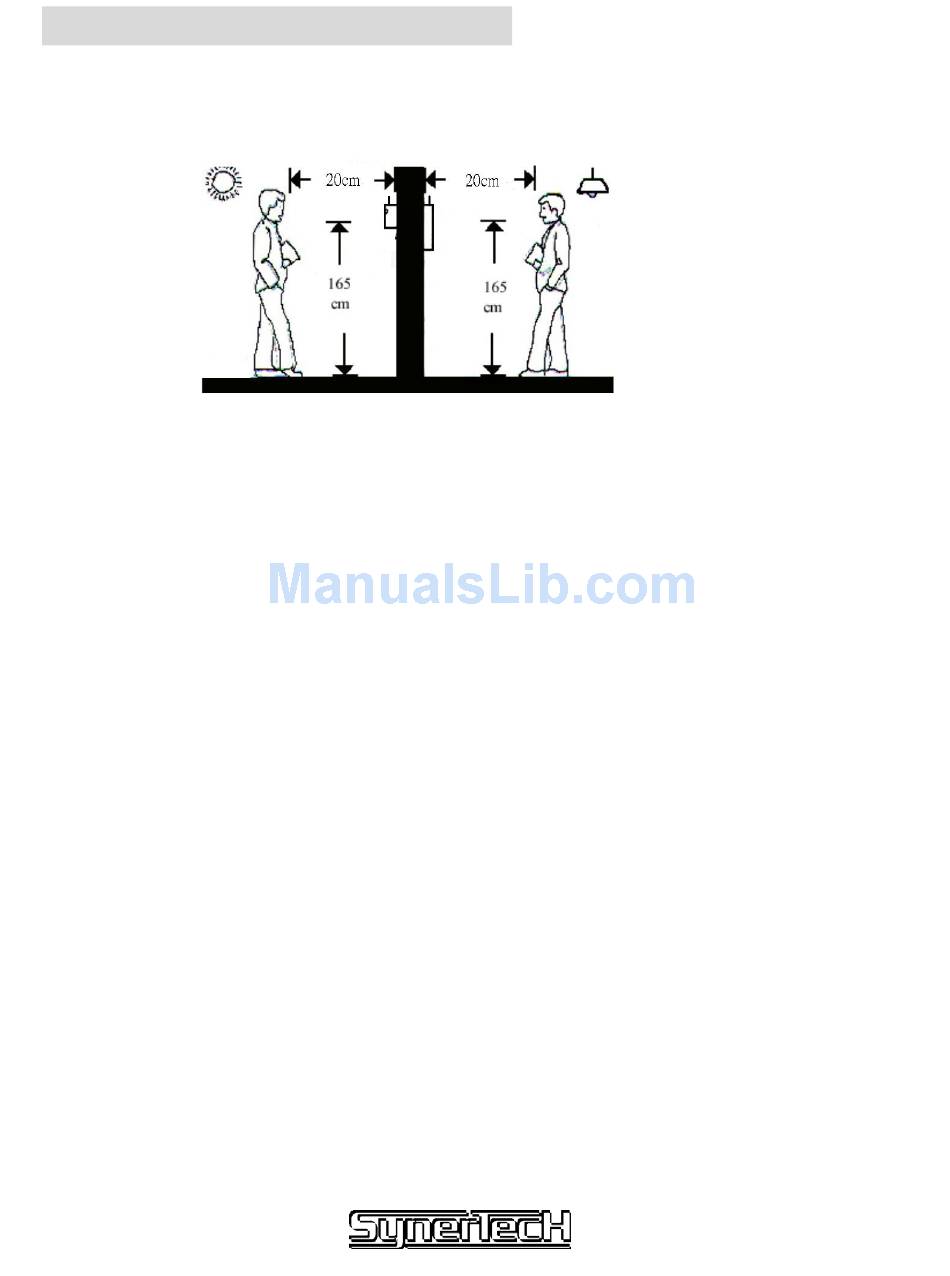

Recommended installation height (Fig.6)
The above diagram shows the position of the door station and indoor phone unit. Recommended
installation height is approximately 165cm from the ground level for both units. It is usually installed near
the door.
Indoor/door station installation
For indoor unit
1.
Referring to the "Recommended installation height" diagram (See fig. 6) to locate and mark the
screw's positions onto the wall.
2.
For the indoor set wall-mounting bracket, make sure the unit is in up direction when placing on to
the wall. The connection between the indoor unit and the corresponding bracket is shown in the
following figure 7-1. Tips of the bracket have to face upwards; otherwise, the phone set will be
upside down.
Step 1: Locate and mark screwing positions on the wall.
Step 2: Drill the screws in but leave 5mm exposed.
Step 3: Plug in the adaptor.
Step 4: Place the indoor unit onto the exposed screw heads and slide until the unit is secured.
P. 9 of 14
