SynerTech 1 family Installation And Operation Manual page 7

* 6V power provide to the door station
* Garage open triggering
Caution: Remove batteries from the door station when using 6V access glass.
3. Basic mode with 12V/24V (through 6V access glass ) (6V access glass not included in the
set) See fig.3
Following the wiring diagram (see fig.3), if 12/24V, door opening &
Garage opening switch are available.
* "Talk": full duplex
* Electricity for opening door lock
* 6V power provide to the door station
* Garage open triggering
* LED "ON" under name plate of door station
Remove batteries from the door station and 6V access glass.

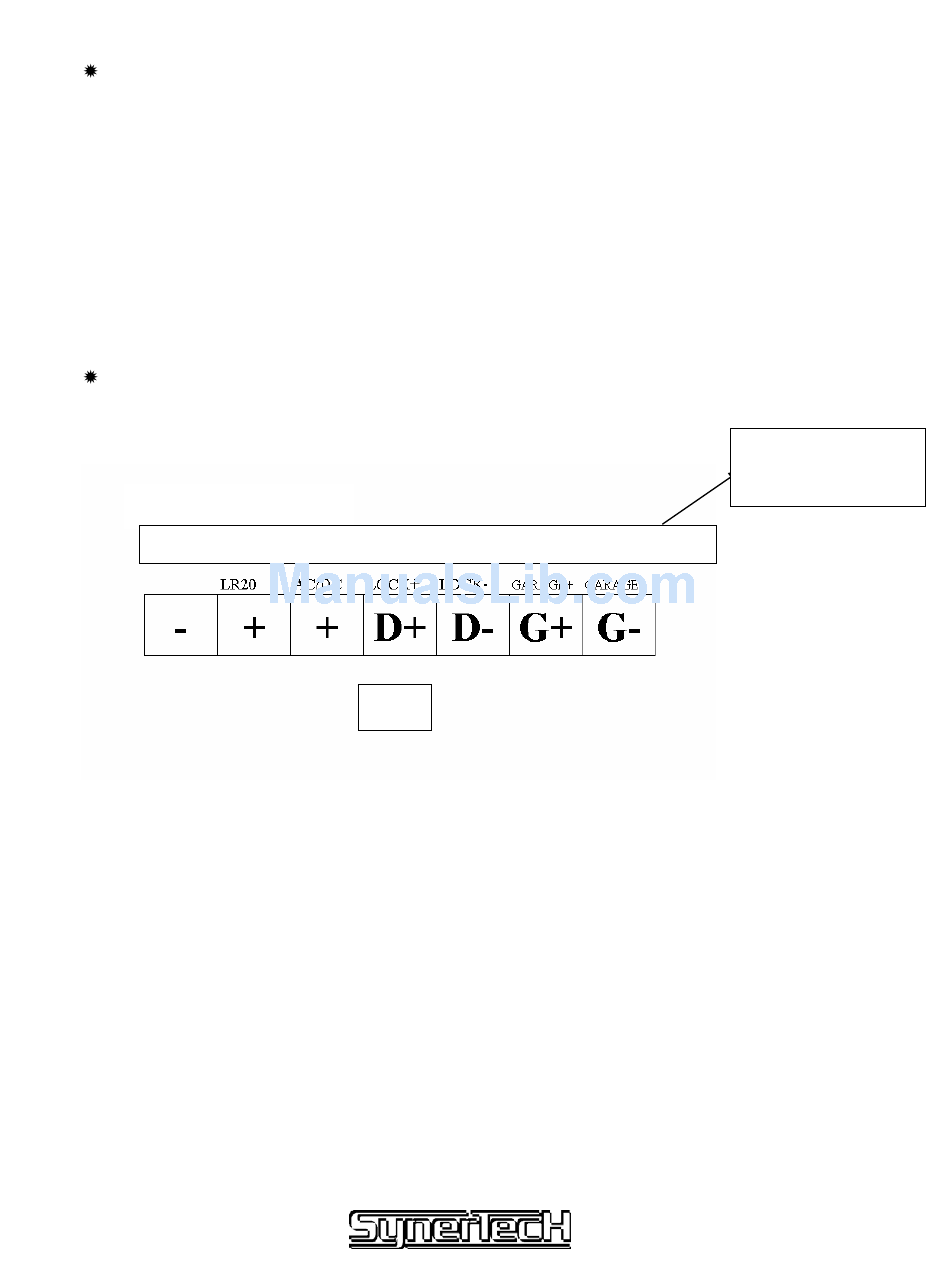

Function of terminal from the door station :
BK RED
D+ & D- is for the function of door lock triggering.
If connect through access glass, it could switch on the door lock.
G+ & G- is for the function of garage opener triggering.
If connect through access glass , it could trigger the garage opener as well.
When the access glass is used, connect "–" to GND and "+" to the terminal LR20.
When 12V/24V is used, connect "–" to GND and "+" to the terminal AC/DC ( see fig 3 ).
communication
RED GREEN BROWN ORANGE YELLOW
Fig.4
Color from the 3M
cable of access glass
P. 7 of 14
