Access
glass

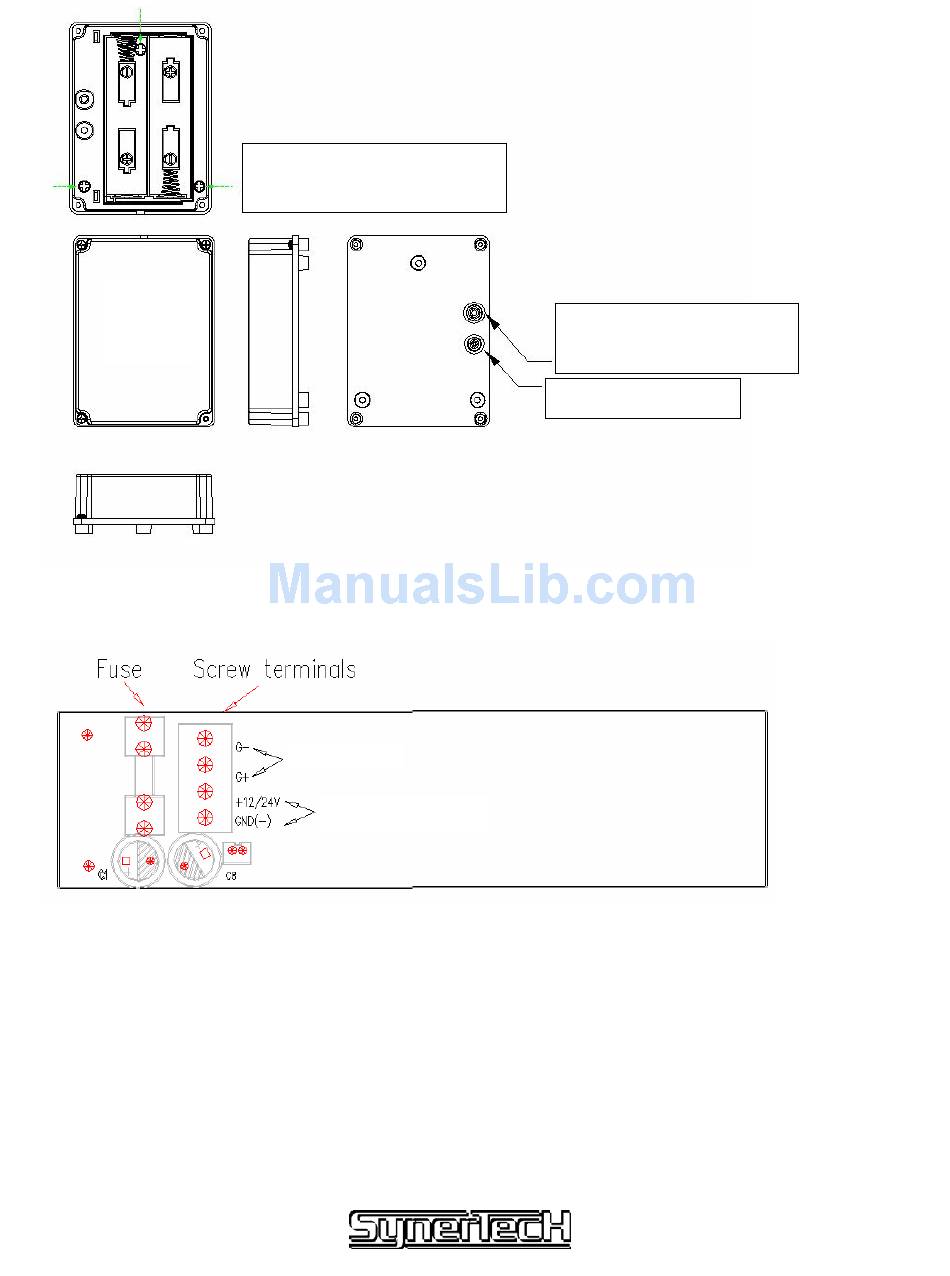

Structure of access glass ( not included in the set ) Fig 5-1
Connection of terminal block inside the access glass ( See Fig 5-2 )
1) Open the battery cover
2) Install external wires into the terminal block inside the access glass
3) "G-" & "G+" for connecting the garage opener
4) " +24V " & " – " for connecting 12/24V power source
5) Use the provided clip and screws to hold the wires inside the access glass after connection.
Screw the back case on the wall
( see arrows )
Fig.5-2
For connecting garage
opener & 12V/24V
3 meter cable provided
P. 8 of 14
