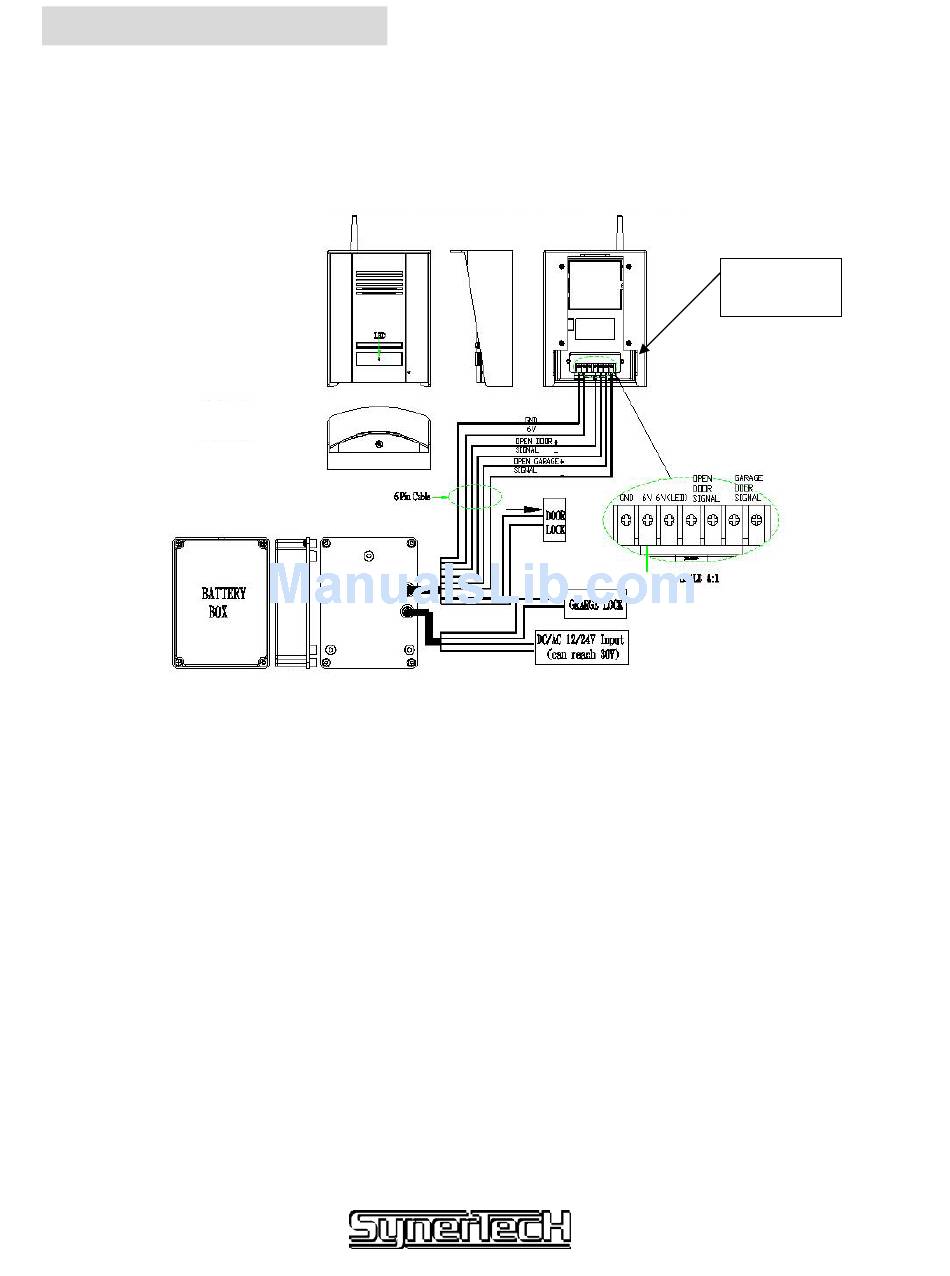

Cable connection (Fig.3)
There are three power sources for this wireless system.
1.
Basic mode: (Batteries inside door station only)
Function:
* "Talk": full duplex communication
* Door open triggering ( Release signal only. If door lock has to be opened, pls connect with access
glass )
* Garage open triggering ( Release signal only not opening garage )
2. Basic mode with 6V access glass (not included in the set) See fig 3
Following the above wiring diagram, connect the wires provided if the access glass, door open switch or
garage open switch are available.
* "Talk": full duplex communication
* Electricity for opening the door lock
See Fig. 4
