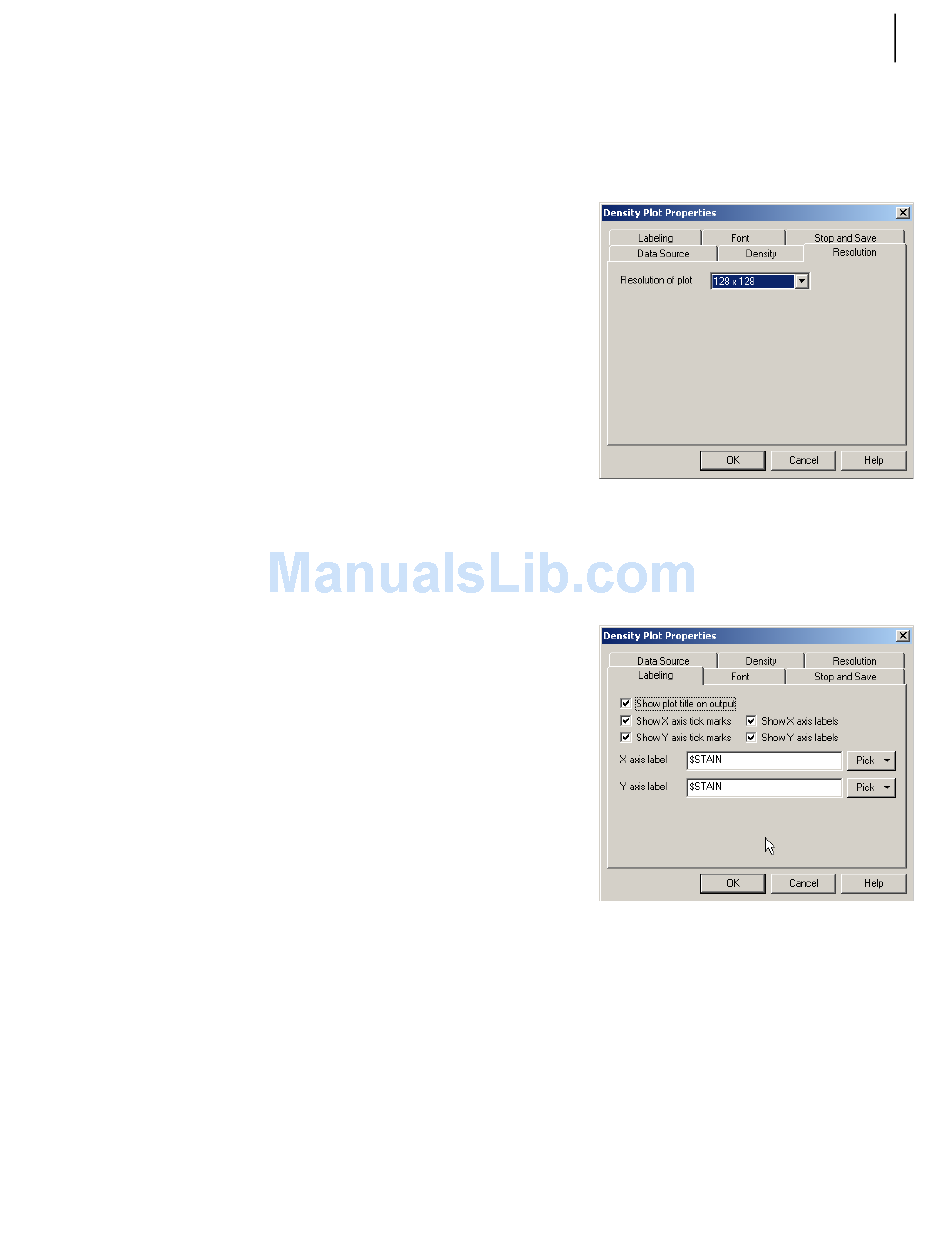

Density Plot Resolution

Set the number of channels for the X and Y Axis of the Plot.
The available options allow for 64, 128, 256 and 512
channels to be displayed on the axis.
A higher resolution gives an improved graphic image
whereas a lower resolution allows faster redrawing of
that image.
NOTE
You cannot make any changes on this screen when
running a

Density Plot Labeling

Use the options here to override the default plot display options for the current plot. This is useful
when capturing images for publication.
Show Plot Title on Output
Show Axis Tick Marks
Show Axis Labels
X and Y Axis Labels
NOTE
You cannot make any changes on this screen when
running a

Prism Plot

A Prism Plot is a way of displaying all the subpopulations or phenotype percentages of a multi-color
immunocytometry analysis protocol.
The Plot represents the relative percentages of each subpopulation (phenotype) and the number of
phenotypes depends on the number of color parameters being simultaneously analyzed. Prism
Plots can be customized, for example: Gate for Prism, Scaling, and so on.
To create a Prism plot:
773232AH
locked protocol.
locked protocol.
Using Navios Software 10
Plots Menu
10-103
