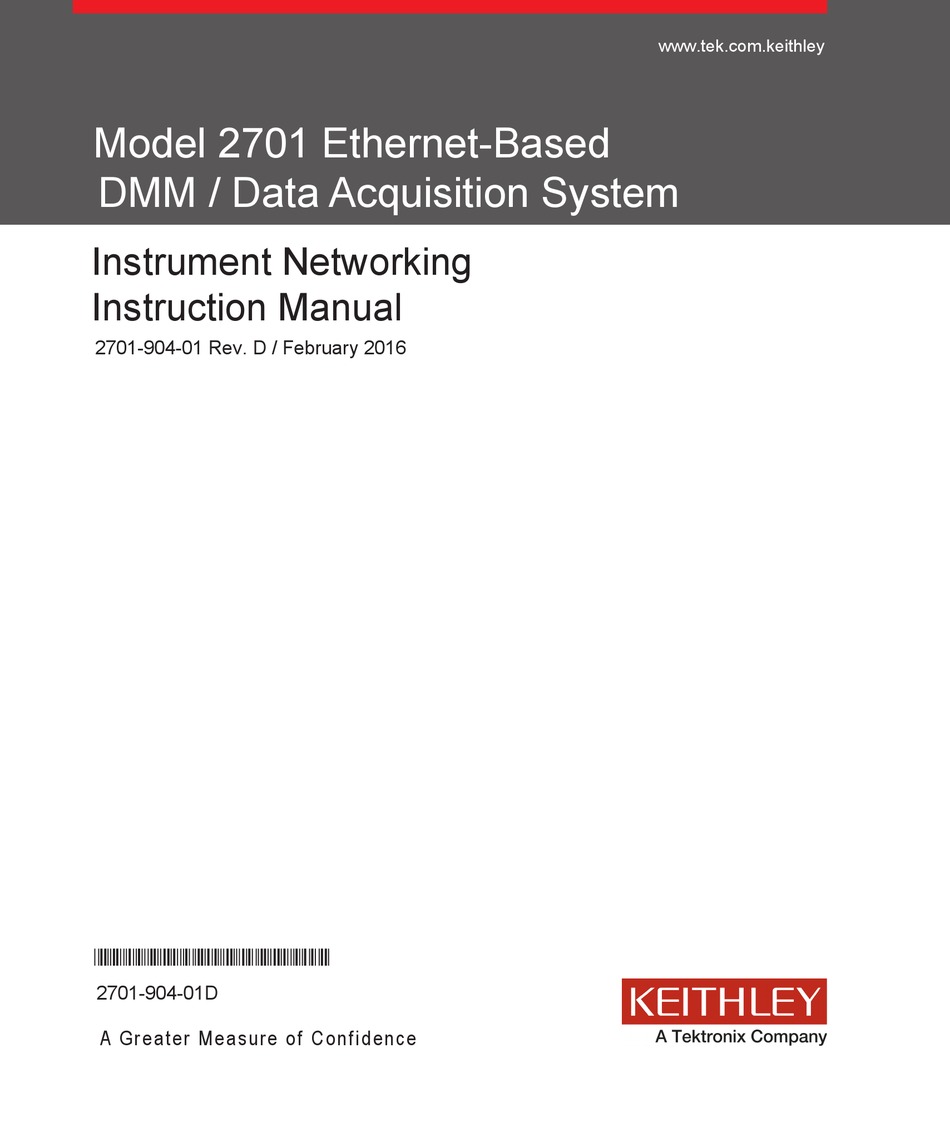

Model 2701 Ethernet-Based
DMM / Data Acquisition System
Instrument Networking
Instruction Manual
2701-904-01 Rev. D / February 2016
*P2701-904-01D*
2701-904-01D
A G re a t er Me a s ur e o f Co n f id e n c e
