INSTALLATION

Installation shall only be performed by qualified personnel,
and in accordance with local governing regulations.

ENVIRONMENTAL

Choose a mounting location suited to the HYDRO+ enclosure.
The ideal HYDRO+ mounting location is where the:
1. Ambient temperature is always within -20 to 50°C (-5 to 122°F).
2. HYDRO+ display window is at eye level.
3. Cable length requirements are minimal.
4. Mounting surface is free from vibration.
Avoid mounting locations where the HYDRO+ is:
» exposed to direct sunlight, (otherwise, provide a sun shield).
» close to high voltage/current runs, contactors, SCR control drives, or
frequency inverters.
This product is susceptible to electrostatic shock.

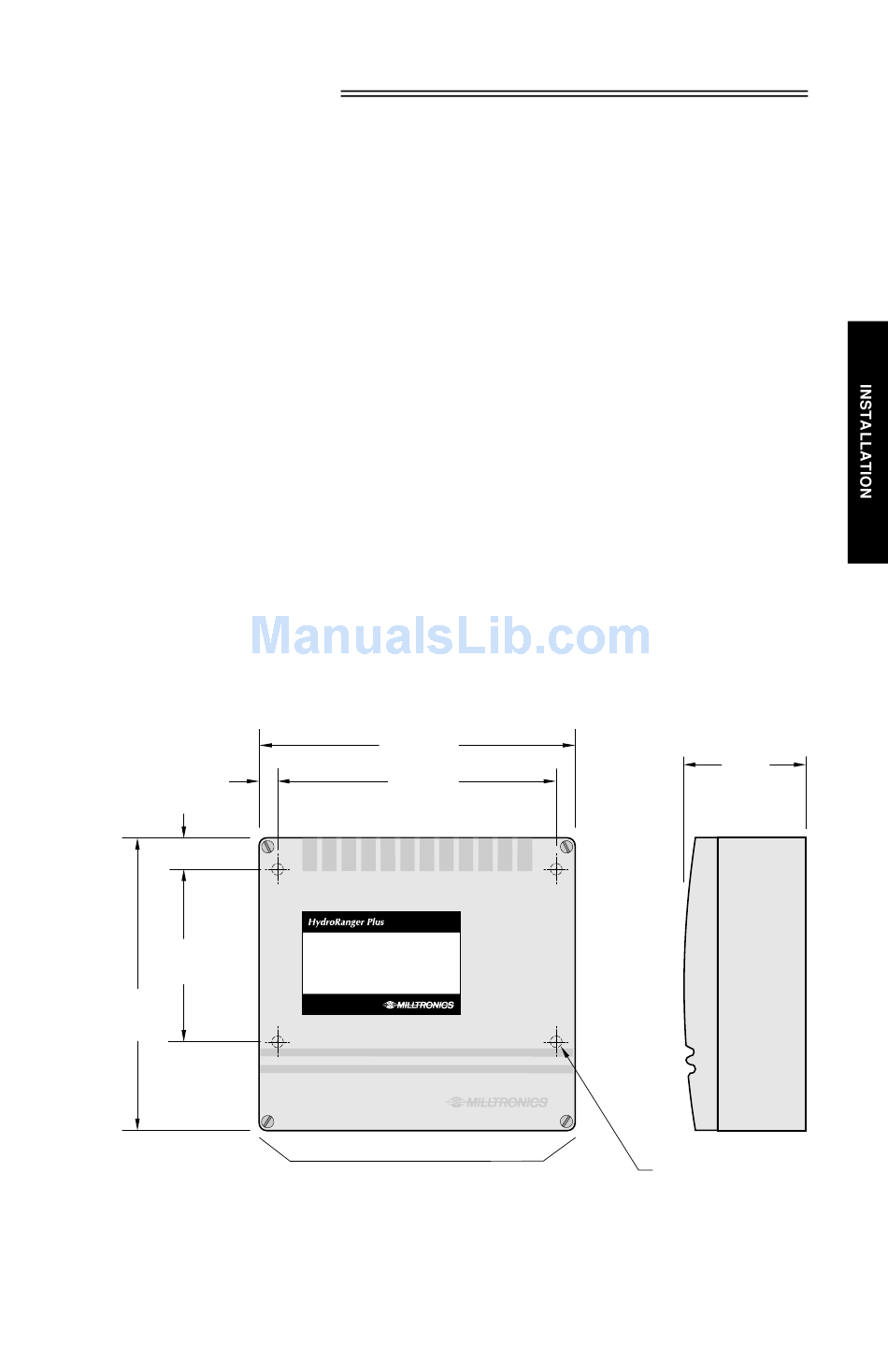

OUTLINE

WALL MOUNT
13 mm (0.5")
20 mm (0.8")
102 mm
(4")
180 mm
(7.1")
Suitable location for conduit entrances. Use water
tight conduit hubs to maintain the enclosure rating.
Non metallic enclosure does not provide grounding between conduit
connections. Use grounding type bushings and jumpers.
PL-507
Follow proper grounding procedures.
195 mm
(7.7")
168 mm
(6.6")
9
77 mm
(3.0")
mounting holes,
4.5 mm (0.18") Ø,
4 places
