Table of Contents

72-4164-250
5/04
Lionel
Summer Vacation
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Summer Vacation and is the answer not in the manual?

Questions and answers

Related Manuals for Lionel Summer Vacation

Summary of Contents for Lionel Summer Vacation

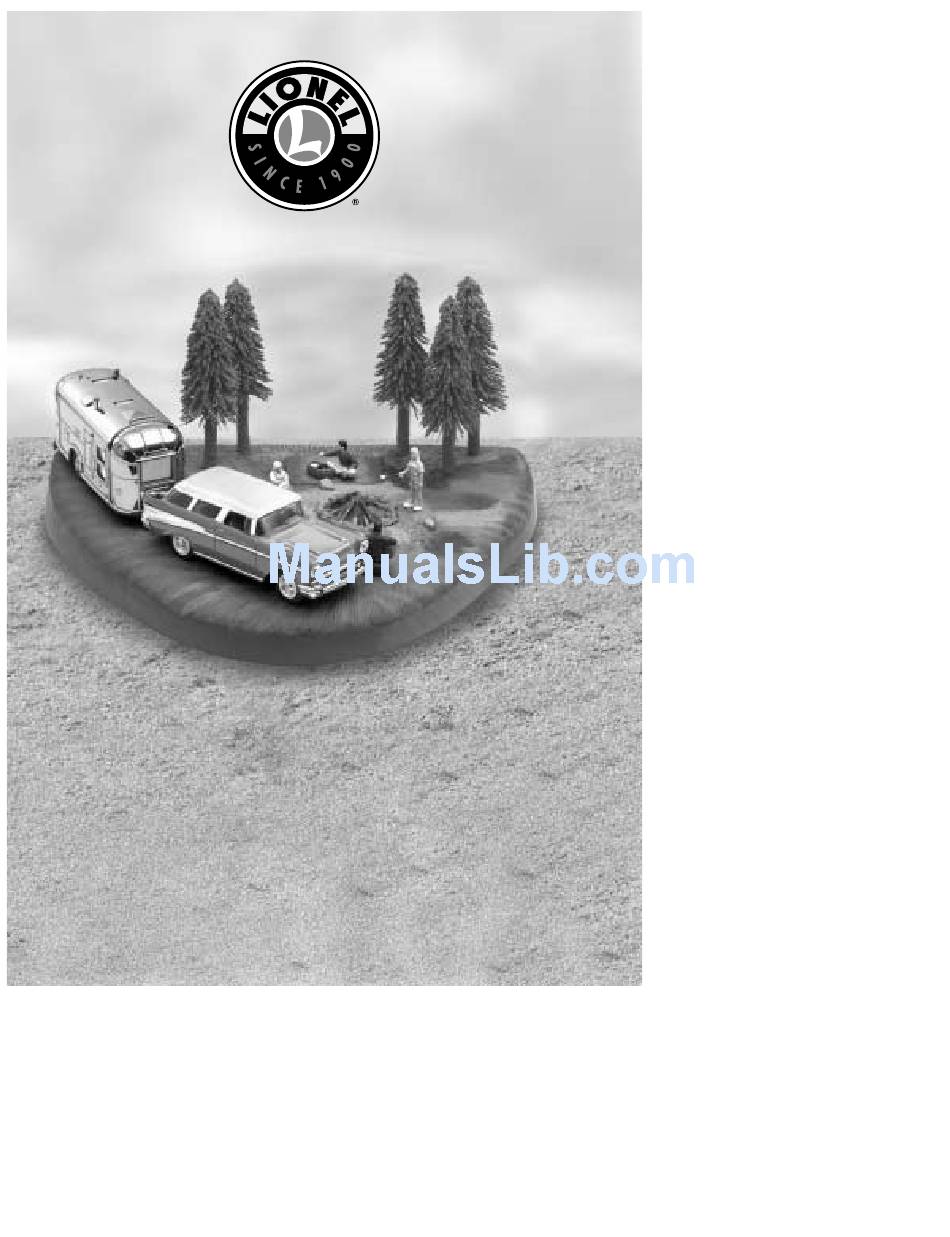

  • Page 1 72-4164-250 5/04 Lionel Summer Vacation Owner’s Manual...
  • Page 2 Powering the accessory Operating the accessory Controlling the accessory in the Command Control environment Lamp Replacement Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ® , TrainMaster ®...

  • Page 3: Powering The Accessory

    2. Attach another wire to the remaining POWER terminal and connect it to connect it to the Common/Ground/U terminal on the power supply or the #2 terminal on the Lionel Lockon. FasTrack users, twist the end of the wire to the remaining Accessory Power Wire and insulate the connection.
  • Page 4 Operating the accessory ith the accessory powered up, the camper’s interior light is on. Use the separate switch that you installed in the previous section to turn the flickering campfire on and off.
  • Page 5 Controlling the accessory in the Command Control environment or operation in the TrainMaster Command Control environment, you may choose to wire this accessory with an SC-2 Switch and Accessory Controller (available separately, 6-22980) or the Accessory Switch Controller (available separately, 6-14182). Refer to these manuals for additional information.
  • Page 6 Controlling the accessory in the Command Control environment (continued) Accessory Switch Controller wiring and operation our wires are needed to connect the accessory to the Accessory Switch Controller (ASC) and a separate accessory transformer. Refer to Figure 3. 1. Connect the accessory to the power supply as discussed on page 3. 2.
  • Page 7 Lamp replacement he interior of the camper is illuminated by one lamp, Lionel part no. 620-4164-300. During the course of normal operations, this lamp may require replacement. Replacement lamps are available from your authorized Lionel Service Center or from Lionel Service in Chesterfield, Michigan.
  • Page 8 Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
