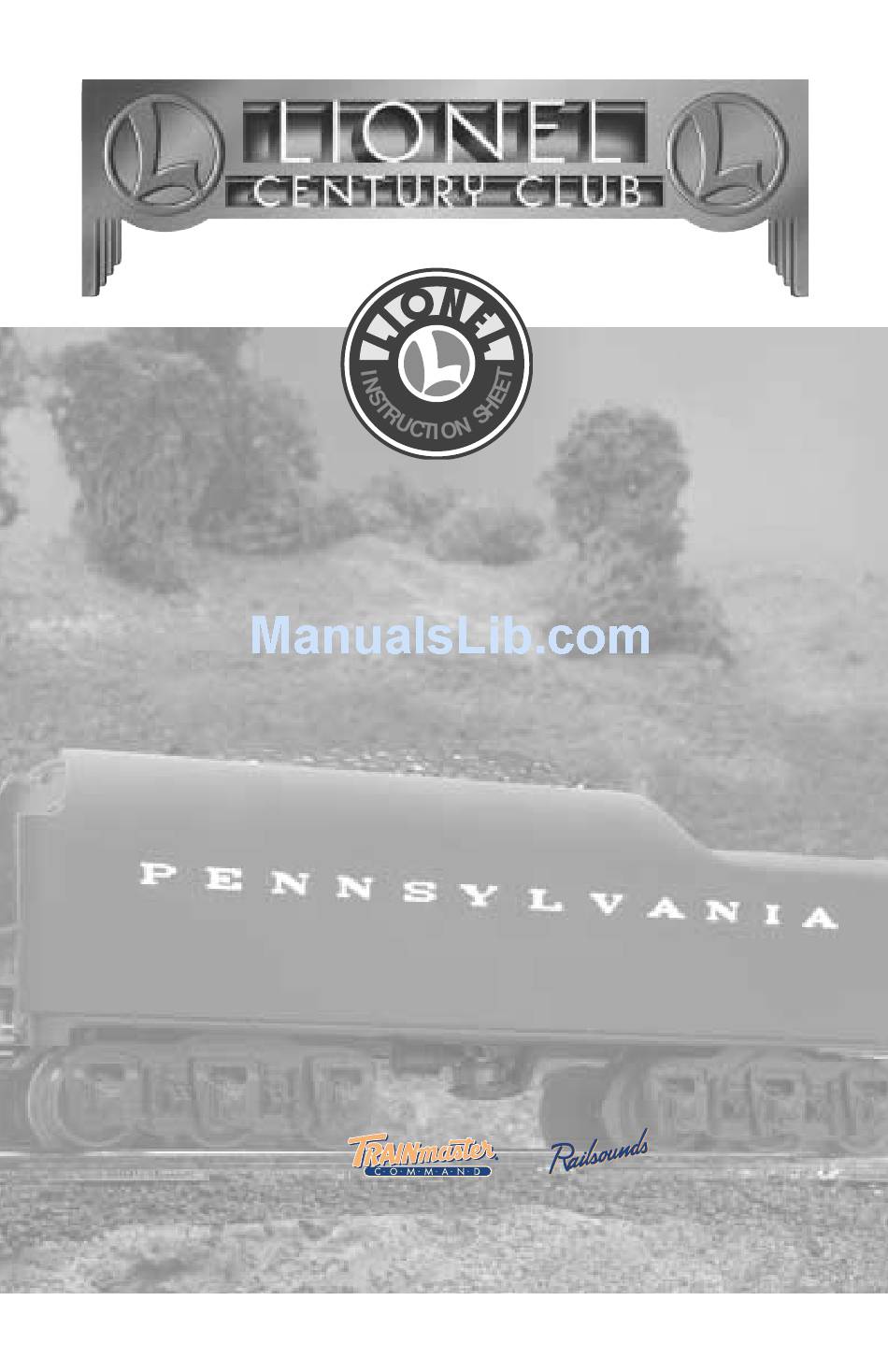

- Page 1 Pennsylvania S-2 Steam Turbine Tender Owner’s Manual featuring 71-8068-250 6/99...
- Page 2 Table of contents Transformer operations Running your Lionel S-2 & Pennsy tender with a Lionel transformer Using your S-2 & Pennsy tender’s tender mounted ElectroCoupler™ Your S-2 & Pennsy tender’s RailSounds system—the basics Experiencing the range of your S-2 & Pennsy tender’s Railsounds system...
- Page 3 Transformer operations Running your Engine & Tender with a Lionel transformer Place your S-2 and Pennsylvania Tender on Lionel or Lionel-compatible O gauge track. • With track power OFF, connect the locomotive tether between the engine and tender. The six-pin tender plug connects with the six- pin receptacle on the locomotive.
- Page 4 Magnetic coupler on the rolling stock cou- pled to the rear of your S-2 tender magnetic field generated by a Lionel remote-control track section (available separately). Place your rolling stock’s coupler “trigger disc” over the central coil of a remote-control track section and press uncouple on the controller.
- Page 5 Transformer operations Your Railsounds system—the basics tender moves, turbine “woosh” begins, ionel Railsounds is the most realis- increasing with the locomotive’s speed. tic model railroad sound system in To silence the turbine “woosh” (whis- the world. Your Pennsylvania Tender tle/bell are unaffected), slide the features digital samples from real-life Railsounds switch, located on the bot- steam locomotives for the ultimate in...
- Page 6 • Shutdown sequence. No other model other electric train can offer you authentic railroad sound system shuts down like S-2 sounds. That’s the power of Lionel. Railsounds. Turn off track power, and • Turbine “Woosh”. Your S-2 ’s track after the air-release reset sound, you have speed determines the speed of the two seconds to restart your S-2 .
- Page 7 O gauge track. • Make sure track power is OFF before placing it on track. • Make sure your Lionel Command Base is ON and its communi- cations wire is connected to the COMMON post on your Lionel transformer or the U on any of your installed PowerMasters.
- Page 8 TrainMaster Command operations Running your S-2 in the TrainMaster Command environment Command-equipped Example address Locomotive comes factory-programmed with an ID# of “1.” To get your S-2 action, set PowerMasters to CMD or set all power supplies on full. Press PowerMasters set to CMD or traditional ENG and “1”...
-
Page 9: Railsounds In The Command Environment
Railsounds in the Command environment our S-2’s Railsounds system gives with the CAB-1 BRAKE command. you even more in the TrainMaster • Incidental sounds you control with Command environment. CAB-1 numeric keypad commands, like • Bonus sounds like squealing brakes steam letoff and steam release effects. - Page 10 TrainMaster Command operations Tuning your S-2’s performance SOUND QUALITY For quick remote-control of volume To achieve your preferred Rail- below the master setting—like mut- sounds master volume level, use the ing—use the CAB-1 numeric keypad’s volume control dial located on the volume control.
- Page 11 Remove the expired lamp from the con- nector and replace it with Lionel part no. 610-8049-300. Make sure that the lamp leads are fully seated in the connector and reposition the lamp assembly in the tender shell.
- Page 12 If you prefer to send it back to Lionel L.L.C. for bulbs, is warranted to the original consumer-pur- factory repair, you must first call 810-949-4100 or chaser, for 5 years against original defects in mate-...
