Figure 2
LightStream 1010 Workgroup Configuration Example

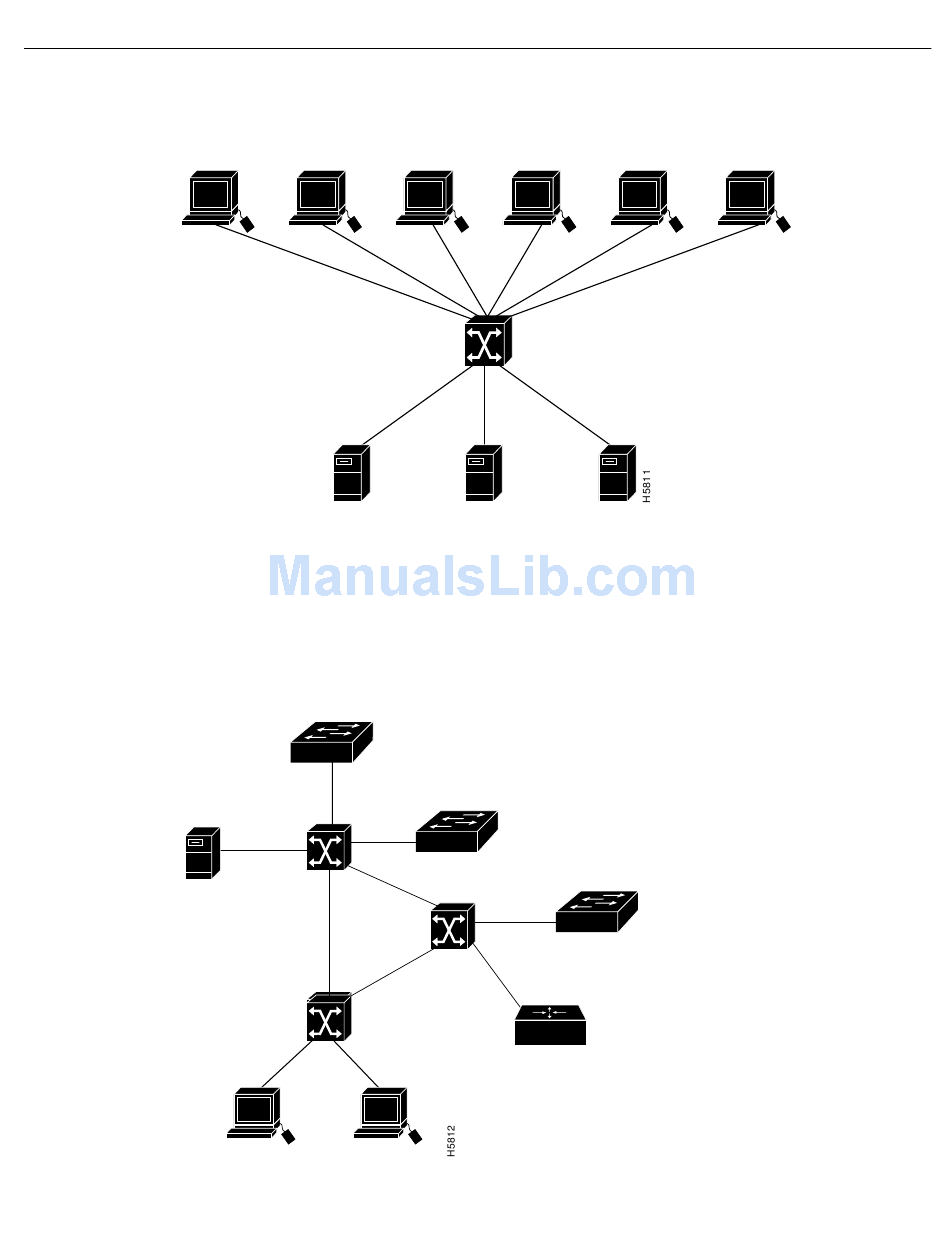

Figure 3 shows an example of a network configuration using the LightStream 1010 ATM switch for
a campus backbone.
Figure 3
LightStream 1010 Backbone Configuration Example
Catalyst 5000
LightStream
1010
Server
LightStream
1010
Workstation
Workstation
LightStream 1010 ATM Switch 622 SM/MM Port Adapter Module Configuration Note
Workstations
LightStream 1010
ATM Switch
Servers
Catalyst 5000
Catalyst 5000
LightStream
1010
7000
What is the LightStream 1010 ATM Switch?
3
