Installing CAMs or PAMs

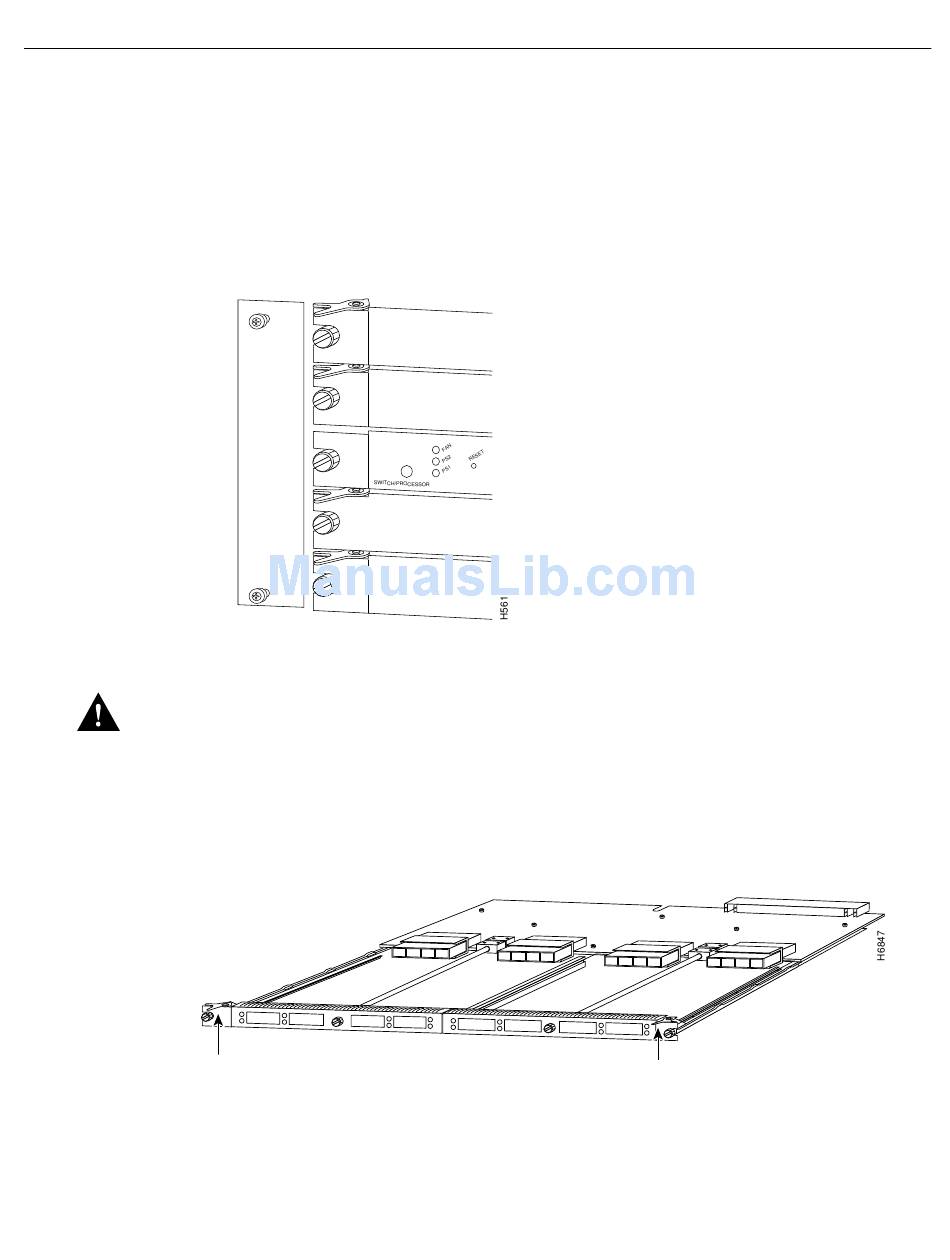

You can install CAMs in any of the four CAM slots numbered 0 through 4 from top to bottom when
viewing the chassis from the front as shown in Figure 10. (The middle slot (number 2) contains the
ASP, which is a required system component.) Blank CAM and PAM fillers are installed in CAMs or
PAM slots without CAMs or PAMs to maintain consistent airflow through the module compartment.
Refer to the LightStream 1010 ATM Switch User Guide for information about installing the CAM.
Figure 10
Slot 0
Slot 1
Slot 2
Slot 3
Slot 4
Following are detailed steps for removing PAMs and successfully performing hot-swap.
Caution
Step 1
Figure 11
PAM slot 0
Step 2
Slot Numbers
Handle PAMs by the carrier edges only to prevent ESD damage.
Choose a PAM slot (shown in Figure 11) in a CAM and make sure there is enough
clearance to accommodate any interface equipment you connect directly to the PAM ports.
If possible, place PAMs between empty slots that contain only PAM filler plates.
PAM Slot Numbers
PAMs are secured with one captive installation screw in the center of the faceplate. Use a
1/4-inch flat-blade screwdriver to loosen the captive installation screw and remove the
PAM filler (or the existing PAM) from the PAM slot you want to use.
LightStream 1010 ATM Switch 622 SM/MM Port Adapter Module Configuration Note
Installing and Replacing PAMs
PAM slot 1
