Installing and Replacing PAMs
Step 3
Step 4

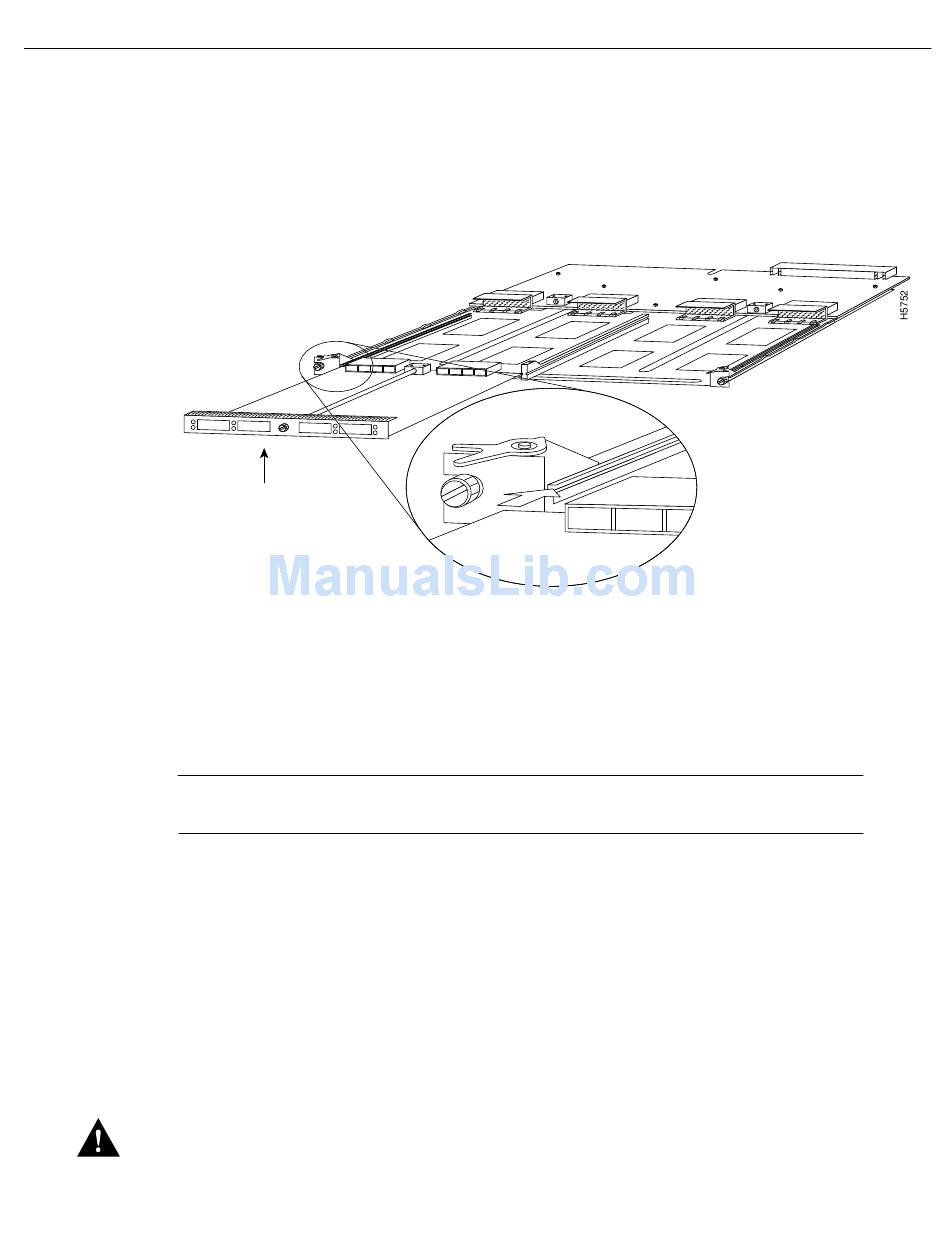

Figure 12
captive installation screw
Step 5
Step 6
Note
the CAM connector causes the system to halt and subsequently crash.
Step 7
Step 8
Caution
ASP while the system is operating will cause the system to shut down.
14 LightStream 1010 ATM Switch 622 SM/MM Port Adapter Module Configuration Note
Place the back of the PAM in the slot and align the notch on the sides of the module carrier
with the groove in the slot. (See Figure 12.)
Hold the PAM by both sides and guide it into the slot. Avoid touching the PAM's
components.
PAM Carrier Installation
Port adapter
Keep the PAM at a 90-degree orientation to the backplane, carefully slide the PAM into the
slot until the faceplate makes contact with the CAM faceplate.
Tighten the captive installation screw in the center of the PAM faceplate, using a 1/4-inch
flat-blade screwdriver, and draw the PAM into the CAM connector until the PAM faceplate
is flush with the CAM faceplate and the CAM is fully seated in the connector. (See
Figure 12.)
Always use the captive screw to install or remove PAMs. A module that is partially seated in
Attach network interface cables or other devices to the interface ports.
Check the status of the interfaces as follows:
•
If this installation is a replacement PAM, use the show configuration or show atm
interface [card/subcard/port] command to verify that the system has acknowledged the
new interfaces and brought them up.
•
See the publication LightStream 1010 ATM Switch Software Configuration Guide and
LightStream 1010 ATM Switch Command Reference for all software instructions and
information.
All PAMs support hot-swapping. The ASP is a required system component. Removing an
