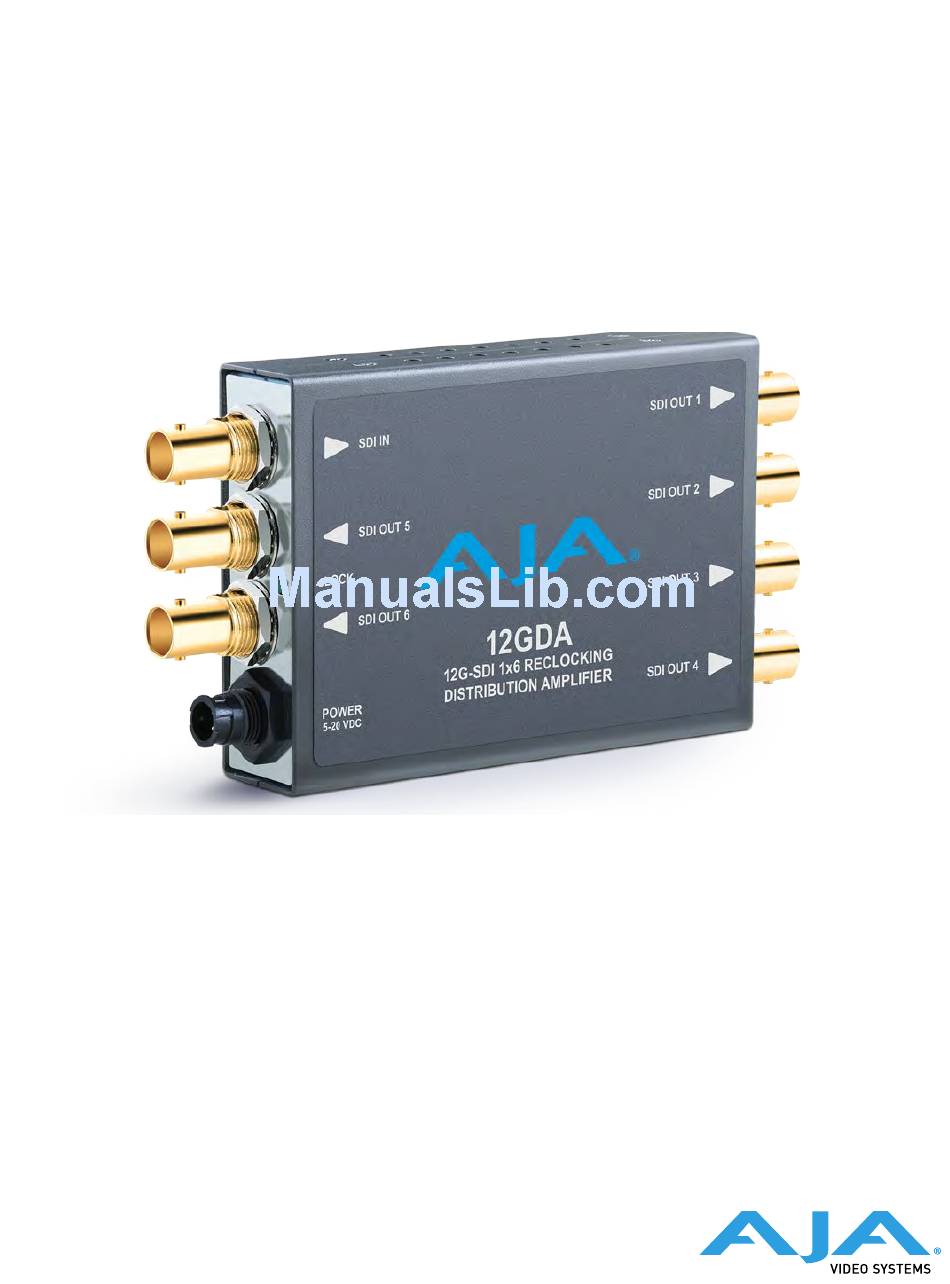

- Page 1 12GDA Mini-Converter Installation and Operation Guide Version 1.0r1 Published August 28, 2017...

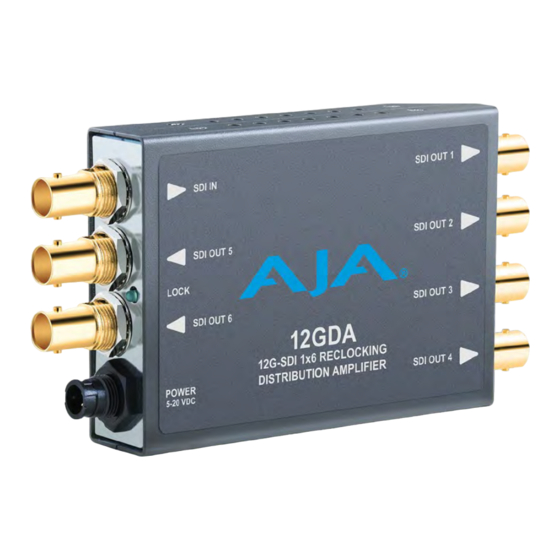

- Page 2 Chapter 1 – 12GDA Mini-Converter Introduction The 12GDA is a miniature, low-cost 1x6 12G-SDI re-clocking distribution amplifier. Featuring six separately buffered SDI outputs, the 12GDA provides automatic cable equalization, re-clocking and input detection. Features • 12G/6G/3G/HD/SD-SDI Distribution • Six Separately Buffered Outputs •...
- Page 3 Installation Typically, 12GDA installation consists of the following: 1. Connect video equipment to the BNCs. 2. Apply power to the converter (AJA power supply included). 3. The LOCK LED will light to indicate detection of the following SMPTE SDI rates: •...
- Page 4 Appendix A – Specifications 12GDA Tech Specs Video Formats • 100 Mbps - 12 Gbps, format agnostic Video Input Digital • 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 Video Output Digital • 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082 Cable Equalization (Using Belden 1694A coax) •...
