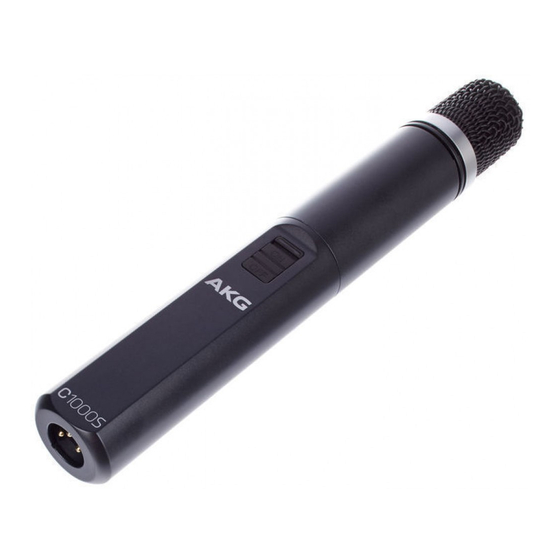

AKG C1000S User Instructions

Hide thumbs

Advertisement

Quick Links

x
Download this manual
4
Optional Accessories
5
Controls
7
Powering
11
Installing the Ppc1000 or Pb1000
13
Specifications
See also: Instructions for Using
C1000S
BEDIENUNGSANLEITUNG ................................... 2
Bitte vor Inbetriebnahme des Gerätes lesen!
USER INSTRUCTIONS ...................................... 16
Please read the manual before using the equipment!
MODE D'EMPLOI ............................................. 30
Veuillez lire cette notice avant d'utiliser le système!
ISTRUZIONI PER L'USO ................................... 44
Prima di utilizzare l'apparecchio, leggere il manuale!
MODO DE EMPLEO .......................................... 58
¡Sirvase leer el manual antes de utilizar el equipo!
INSTRUÇÕES DE USO ...................................... 72
Favor leia este manual antes de usar o equipamento!

Advertisement

loading

  Also See for AKG C1000S

AKG C 1000 S - PPC 1000 & PB 1000 User Instructions
AKG C 1000 S - PPC 1000 & PB 1000 User Instructions 65 pages
AKG C414B-XLII+H85 Catalog
AKG C414B-XLII+H85 Catalog 52 pages
AKG Drum Set Micing White Paper
AKG Drum Set Micing White Paper 12 pages

  Related Manuals for AKG C1000S

  Summary of Contents for AKG C1000S

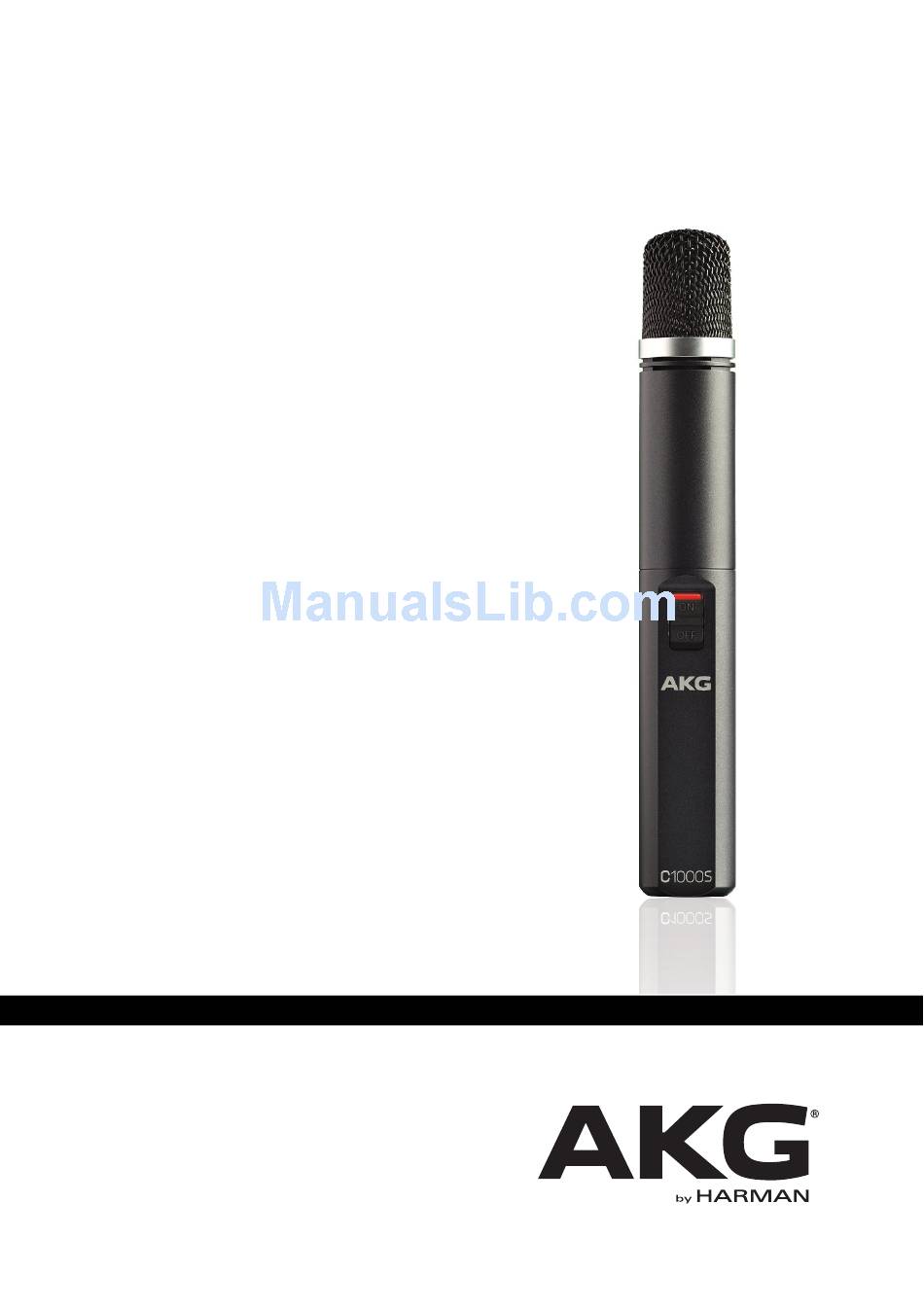

  • Page 1 C1000S BEDIENUNGSANLEITUNG ........2 Bitte vor Inbetriebnahme des Gerätes lesen! USER INSTRUCTIONS ........16 Please read the manual before using the equipment! MODE D’EMPLOI ..........30 Veuillez lire cette notice avant d’utiliser le système! ISTRUZIONI PER L’USO ........44 Prima di utilizzare l’apparecchio, leggere il manuale! MODO DE EMPLEO ..........

  • Page 2: Table Of Contents

    Phantom power .................. 24     Application ..................25   Installing the PPC1000 or PB1000 ............25   Cleaning ................... 25     Microphone ..................25   Internal Windscreen ................25   Troubleshooting ................26       Specifications ................... 27   C1000S...

  • Page 3: Safety And Environment

     When the product reaches the end of its life, separate the housing, electronics and cables and dispose of all components in accordance with local waste disposal regulations.  The packaging can be recycled. Dispose of the packaging in a suitable collection system. C1000S...

  • Page 4: Description

    Please check that the packaging contains all the components listed above. If anything is missing, please contact your AKG dealer. For optional accessories, refer to the current AKG catalog or folder, or visit Optional Accessories www.akg.com. Your dealer will be glad to help.

  • Page 5: Controls

    The PB1000 Presence Boost Adapter boosts the sensitivity of the microphone by approx. 5 dB between 5 kHz and 9 kHz for optimum intelligibility of speech. Controls Figure 1: Controls Attenuation selector switch Bass-cut selector switch Status LED On/Off Switch C1000S...
  • Page 6 NOTE On/Off Switch The microphone provides an on/off switch with no audible click. In the Off position, the batteries are not used. Switch the microphone off when it is not in use, thus prolonging the battery life. NOTE C1000S...

  • Page 7: Powering

    Powering 3 Powering The C1000S is a condenser microphone and therefore needs a power supply. When powered by two AA batteries, the microphone can be used independently of external phantom power without a loss in audio quality. When operating using external phantom power, however, the microphone will automatically switch from battery to phantom power mode.

  • Page 8: Battery Power

     If the Status LED fails to flash, the batteries are dead. Insert new batteries.  If the Status LED lit constantly, the batteries will be flat within about one hour. Replace with new batteries as soon as possible. C1000S...

  • Page 9: Connecting To A Balanced Input

    Unbalanced cables may pick up interference from stray magnetic fields (nearpower or lighting cables, electric motors, etc.) like an antenna. This may cause hum or a similar noise if you use a cable that is longer than 5 m (16 feet). NOTE C1000S...

  • Page 10: Phantom Power

    The microphone will automatically switch from battery mode to phantom power mode and deactivate the Status LED. Therefore, you do not need to remove the batteries from the microphone. The Status LED will remain off. NOTE C1000S...

  • Page 11: Application

    Unscrew the front grill from the microphone CCW. Internal Windscreen Remove the windscreen from the front grill and wash the windscreen in soap suds. Allow the windscreen to dry overnight. Replace the windscreen in the front grill and screw the front grill on the microphone CW. C1000S...

  • Page 12: Troubleshooting

    Turn gain control down. set too high. Mixer input sensitivity Connect a 10-dB Distortion too high. attenuation pad between microphone cable and input. Internal or external Clean internal or Microphone sound windscreen attenuates external windscreen. becomes increasingly high frequencies when dull. soiled. C1000S...

  • Page 13: Specifications

    ø 33.5 x 229 mm / ø 1.32 x 9.01 in. Net weight: 320 g Shipping weight: 510 g This product conforms to the standards listed in the Declaration of Conformity. To view a copy of the Declaration of Conformity for this product, visit http://www.akg.com or contact sales@akg.com. C1000S...
  • Page 14 Specifications Frequency Response Polar Diagram (Cardioid) (Cardioid) Basscut Frequency Response Polar Diagram (Hypercardioid) (Hypercardioid) Basscut C1000S...
