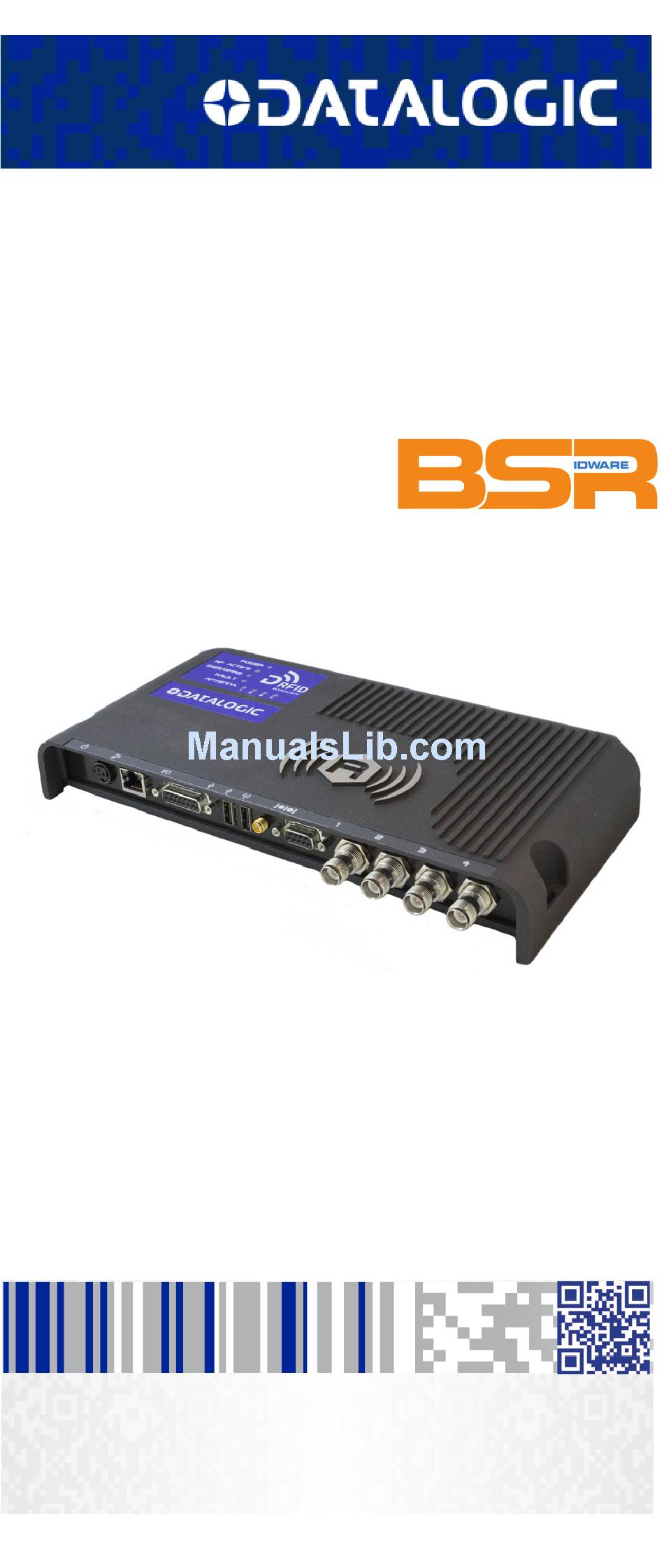

- Page 1 DLR-PR001-XX Family RFID Portal Reader 4 Antennas EU/US BSR idware GmbH Jakob-Haringer-Str.3 A-5020 Salzburg Web: www.bsr.at Quick Reference Guide...
- Page 2 Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. DLR-PR001 and the D RFID Logo are trademarks of Datalogic S.p.A. and/or its affiliates. All other trademarks and brands are property of their respective owners.
-
Page 3: Table Of Contents
USB Host Ports ............. 9 GPIO Port ..............10 RFID Antenna Ports............ 11 LEDs ................11 DLR-PR001-XX Configuration ..........12 Restore Factory Default Settings ........12 Technical Specifications ...............13 Datalogic Limited Factory Warranty ...........15 Support Through the Website .............18 Quick Reference Guide... - Page 4 NOTES DLR-PR001-XX...
-
Page 5: End User License Agreement
1.1 Datalogic grants to End User, a personal, non-exclusive, non-transferable, non-sublicensable, revocable, limited license to use the Software, solely on the Datalogic Product in which it is embedded or for which it is intended for use, in machine-readable form only, solely for End User's internal business purposes. - Page 6 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 8.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used and with U.S.
- Page 7 Notices to Datalogic shall be sent to the attention of Datalogic IP Tech S.r.l., Legal & IP Department, Via San Vitalino 13, 40012 Calderara di Reno (Bologna), Italy, or such other address as may be specified by Datalogic in writing.
-
Page 8: Software Product Policy
Italy, without regard to the rules governing conflicts of law. Italian Court of Bologna shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located. -
Page 9: Product Description
RFID Portal Reader 4 Antennas Product Description The DLR-PR001-XX is an RFID reader optimized for portal installations, featuring full power to up 4 antennas , GEN2 Dense Reader Mode management and high speed read rates. Based on an embedded HW architecture (x86) and standard operating system (Linux), it eases the development of custom software and solutions. -
Page 10: General Features
PC). Follow the steps below to familiarize yourself with the product. Download the latest version of the Demo software or a similar application from the Datalogic website and install it on your PC. Connect the antenna to conn. #1 through an appropriate antenna cable. -
Page 11: Connecting To The Reader Using The Serial Port
(see the Product Reference Guide for more details). Remember to select the TCP/IP connection option and insert the IP address in the Datalogic demo tool, or eventually in your application. Quick Reference Guide... -
Page 12: Mechanical Dimensions And Installation Notice
Getting Started Mechanical Dimensions and Installation Notice The DLR-PR001-XX could be mounted either horizontally or vertically. Locate the four mounting slots on the reader, as illustrated below. All measurements are in millimeters. Figure 1. DLR-PR001-XX Technical drawing DLR-PR001-XX... -
Page 13: Kit And Accessories
DLR-PR001-XX kit for a complete RFID set-up: Figure 2. DLR-PR001 kit • RFID Portal Reader 4 Antenna • Datalogic Power Supply • RFID Antenna • Connection cable (antenna cable) Table 2 - Products list and accessories Models Description... -
Page 14: External Interfaces Description
External Interfaces Description External Interfaces Description Connectors The DLR-PR001-XX reader is equipped with the followings ports: Figure 3. DLR-PR001-XX Connectors View Power Supply Connector The power supply connector shall be used to provide the reader with the DC supply voltage in the range 9V to 36V. The part number of the connector is KPJX-3S-S by Kycon, the pinout of the connector is shown in the following table:... -
Page 15: Rs232 Port
External Interfaces Description It is strongly recommended to use only the Dat- alogic power supply AC/DC adapter 24Vdc out- put voltage. NOTE RS232 Port The DLR-PR001-XX RS232 port is available on a DB9 connector, the pinout is the following: Pin # Signal Description Not connected... -
Page 16: Ethernet Port
External Interfaces Description Ethernet Port The Ethernet port can be used to connect the reader to a 10/100/1000 Base-T network using a RJ45 cable. The Ethernet connector pinout is the following: Pin # Signal Description Bidirectional pair A+ Bidirectional pair A- Bidirectional pair B+ Bidirectional pair C+ Bidirectional pair C-... -
Page 17: Usb Host Ports
External Interfaces Description USB Host Ports The DLR-PR001 reader has 2 USB 2.0 high speed ports that can be used to connect external devices like Wi-Fi or Bluetooth adapters, GPS receivers or flash pen drives. Each port is able to provide up to 500mA supply current at 5VDC voltage. -
Page 18: Gpio Port
External Interfaces Description GPIO Port The reader has 13 GPIO bidirectional pins to be used to control external devices or to send trigger signals to the reader. All GPIOs are TTL Levels. (See the Product Reference Guide for more details and instructions on how to use them). -
Page 19: Rfid Antenna Ports
External Interfaces Description RFID Antenna Ports The reader has 4 antenna ports available on 50 Ohm RP- TNC jack connectors. RF output (32dBm peak max.) In order to achieve the best reading performance, the VSWR of the antenna shall be lower than 1.5 : 1. LEDs The DLR-PR001-XX top cover panel houses the following LEDs:... -
Page 20: Dlr-Pr001-Xx Configuration
External Interfaces Description DLR-PR001-XX Configuration The reader can be configured using a standard Linux bash shell available via serial port. Reader Configuration Using the Serial Port By default, a standard bash shell is available via serial port; to access the reader using this method, you have first to configure your preferred serial terminal monitor (Hyperterminal, Tera Term, Putty, etc…) with the following settings:... -
Page 21: Technical Specifications
Technical Specifications Technical Specifications Item Description Physical Characteristics (W-L-H) 27.5 x 15.5 x 3.9 cm / 10.8 x 6.1 Reader Dimension x 1.5 in Weight 1300 g / 45.86 oz Electrical Characteristics Electrical Power 9÷36 VDC - 60W RF Characteristics Type UHF - RFID Standard Compliance... - Page 22 Technical Specifications Item Description Operat. Temperature -10°C to 50°C / 14°F to 122°F Storage Temperature -20°C to 60°C / -4°F to 140°F ESD Level 16kV DLR-PR001-XX...
-
Page 23: Datalogic Limited Factory Warranty
Datalogic has no obligation to modify or update products once sold. If Datalogic determines that a product has defects in its material or workmanship, Datalogic shall, at its sole option repair or replace the product without additional charge for parts and labor, or credit or refund the defective products duly returned to Datalogic. - Page 24 No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic. DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN,...
- Page 25 Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific written instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment.
-
Page 26: Support Through The Website
Support Through the Website Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT > RFID category link. From this page you can select your... - Page 27 Support Through the Website NOTES Quick Reference Guide...
