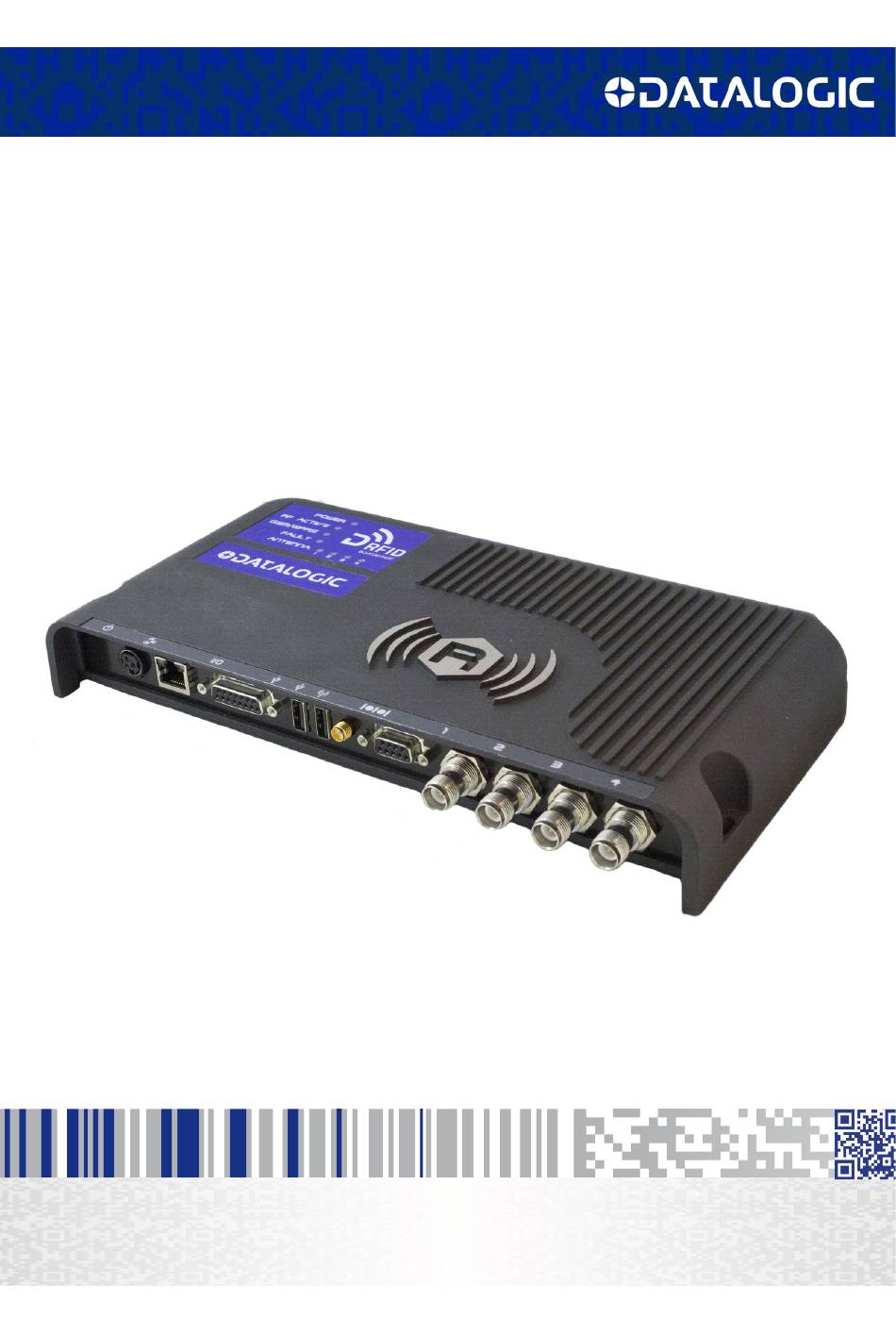

  • Page 1 DLR-PR001-XX Family RFID Portal Reader 4 Antennas EU/US Product Reference Guide...
  • Page 2 Electronic versions may either be downloadable from the Datalogic website (www.data- logic.com) or provided on appropriate media. If you visit our website and would like to make comments or suggestions about this or other Datalogic publications, please let us know via the "Contact Datalogic" page. Disclaimer...

  • Page 3: Table Of Contents

    Power Supply Connector Electrical Characteristics ........................... 30 GPIO Port Electrical Characteristics ................................30 Serial Port Electrical Characteristics ................................30 USB Port Electrical Characteristics ................................30 DATALOGIC LIMITED FACTORY WARRANTY............................31 Warranty Coverage ....................................... 31 Warranty Claims Process ..................................... 31 Warranty Exclusions ..................................... 32 No Assignment ......................................
  • Page 4 Contents DLR-PR001...
  • Page 5 Software, (ii) copy the functionality of the Dat- alogic Products; (iii) remove any proprietary notices, marks, labels, or logos from the Datalogic Products; (iv) rent or transfer all or some of the Software to any other party without Datalogic' s prior written consent.
  • Page 6 2. License Fee License fees shall be due by End User to Datalogic according to the terms provided for in the relevant contract for the purchase of the Data- logic Product. 3. Termination Without prejudice to any other rights or remedies Datalogic may have, Datalogic may terminate this Agreement if End User fails to comply with the terms and conditions of this Agreement.
  • Page 7 Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 8.2If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used and with U.S. export control laws,.
  • Page 8 12.3Governing Law; Venue: End User agrees to the application of the laws of the country in which End User obtained the license to govern, interpret, and enforce all of End User' s and Datalogic' s respective rights, duties, and obligations arising from, or relating in any manner to, the subject matter of this Agreement, without regard to conflict of law principles.
  • Page 9 The Court of Hong Kong shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute dis- cretion, to initiate proceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User' s assets are located.

  • Page 10: Software Product Policy

    * --/COPYRIGHT--*/ - END - Software Product Policy Datalogic reserves the right to ship its products with the latest version of software/firmware available. This provides our customers with the very latest in Datalogic software technology. The only exception to this policy is when the buyer has a signed contract with Datalogic that clearly defines the terms and conditions for making software/firmware changes in products shipped to the buyer.

  • Page 11: Rfid Portal Reader 4 Antennas

    RFID Portal Reader 4 Antennas Product Description The DLR-PR001-XX is a RFID reader optimized for portal installations, fea- turing full power to up 4 antennas , GEN2 Dense Reader Mode management and high speed read rates. Based on an embedded HW architecture (x86) and customized operating system (Linux), it eases the development of custom software and solutions.

  • Page 12: General Features

    RFID Portal Reader 4 Antennas General Features The DLR-PR001-XX is a RFID UHF Portal reader and can be used with dedi- cated antennas (up to 4 antennas), refer to the Products list and accessories on page 9 for part numbers. You can connect to the DLR-PR001-XX using the serial port or the Ethernet port (see “External Interfaces description”...

  • Page 13: Kit And Accessories

    Figure 2 shows the DLR-PR001-XX kit for a complete RFID set-up: Figure 2 - DLR-PR001 kit   • RFID Portal Reader 4 Antenna • Datalogic Power Supply • RFID Antenna • Connection cable (antenna cable) Table 2 - Products list and accessories MODELS DESCRIPTION PART NUMBER RFID PORTAL READER 4 ANTENNA EU...

  • Page 14: Getting Started

    1. Download the latest version of the Demo software or a similar applica- tion from the Datalogic web site and install it on your PC. 2. Connect the Antenna to Conn#1 through an appropriate antenna cable.

  • Page 15: External Interfaces Description

    The pinout of the connector is shown in the following table: Pin # Signal Description Ground DC input Voltage Not connected Figure 4 - Power supply connector   It is strongly recommended to use only the Datalogic power supply AC/ DC adapter 24Vdc output voltage (p/n PS-DLR-PR001). NOTE Product Reference Guide...
  • Page 16 RFID Portal Reader 4 Antennas RS232 Port The DLR-PR001-XX RS232 port is available on a DB9 connector, the pinout is the following: Pin # Signal Description Not connected TX output RX input Not connected Ground Not connected Clear to Send Req. to send Not connected Shell Ext. shell conn. To GND Figure 5 – RS232 port DB9 socket connector pinout DLR-PR001...
  • Page 17 External Interfaces Description Ethernet Port The Ethernet port can be used to connect the reader to a 10/100/1000 Base-T network using a RJ45 cable. The Ethernet connector pinout is the following: Figure 6 - Ethernet Conntector   Pin # Signal Description Bidirectional pair A+ Bidirectional pair A-...
  • Page 18 RFID Portal Reader 4 Antennas USB Host Ports DLR-PR001 reader has 2 USB 2.0 high-speed ports that can be used to con- nect external devices like Wi-Fi or Bluetooth adapter, GPS receivers or flash pen drives. Each port is able to provide up to 500mA supply current at 5VDC voltage. The connector is a 4 pins Type A receptacle: Figure 7 - URB Connector Type A...
  • Page 19 The default configuration of all the GPIO lines after a power on reset or a general reset is set to input. Any GPIO line can be changed individually using the Datalogic SDK ( “Soft- ware Development Kit” ) or the “Demo RFID Configuration Tool”.
  • Page 20 RFID Portal Reader 4 Antennas Figure 9 – GPIO Output Configuration Equivalent Schematic   In case a GPIO line is configured as an input line, the pin is a logical port with Schmitt trigger input with a voltage range from 0V to 5V. Figure 10 –...

  • Page 21: Leds

    External Interfaces Description LEDs The DLR-PR001-XX top cover panel houses the following LEDs: Function Type POWER Power ON Green LED RF ACTIVE RFID Transmitting activity Blink Yellow LED GSM/GPRS Not Present No LED Boot phase or system Fault Red LED FAULT Ready to work ANTENNA(* Selected TX Antenna Yellow LED (*) The LED indicates the antenna configured via software to transmit. By default the selected antenna is Ant#1.

  • Page 22: How To Restore The Default Factory Settings

    Follow the instructions below for resetting the DLR-PR001-XX firmware to its factory default. 1. Download the latest firmware image from Datalogic web site (file with extension .img), if zip file unzip it. 2. Flash the image file into a USB flash pen drive (at least 4 GB of memory).
  • Page 23 How to restore the default factory settings 4. Open a serial port monitor windows (example: HyperTerminal, Tera Term, Putty or similar programs of VT100 emulation) with the follow- ings settings:   and select VT100 emulation:   Product Reference Guide...
  • Page 24 RFID Portal Reader 4 Antennas 5. Now power on the reader and enter in setup mode (press "DEL" or "ESC") when the below prompt appears on the screen:   6. The next screen shows you are in boot mode:   Select "Boot"...
  • Page 25 How to restore the default factory settings Select priorities of boot, at the "boot option #1" you must select your USB Pen drive:   Press "F10" to save configuration and exit from boot mode. 7. Now the USB disk live will be executed automatically:  ...
  • Page 26 RFID Portal Reader 4 Antennas 8. Type "root" at the login prompt and "rootroot" at the password request:   9. When entered in the bash shell type the following command: /opt/install and then press Enter 10. Wait 15-20 minutes until a "pmc_atom: Preparing to enter system state sleep S5 "...
  • Page 27 How to restore the default factory settings 11. Power off the reader and remove the USB pen then power on again the reader and wait until the new packages have been installed:   12.When the login prompt appears the restore procedure is completed.  ...

  • Page 28: Connecting To The Reader Via Ethernet

    Remember to select TCP/IP connection option and insert IP address in the Datalogic demo tool, or eventually in your application. DLR-PR001-XX allows using the SSH protocol and SCP protocol.

  • Page 29: Using Gpio Interface

    Using GPIO Interface Using GPIO Interface The reader has 13 general purpose input and output (GPIO) interfaces. You can use them to control external devices and/or get specific signals from the environment. The GPIO lines can be managed directly from the console Linux shell of the reader.

  • Page 30: Dlrfidd Daemon

    RFID Portal Reader 4 Antennas DLRFIDD DAEMON Introduction The DLRFIDD daemon represents the server side implementation of the DL RFID protocol, it handles the request coming from the host computer and sends back the replies after having executed the requested actions. The cli- ent side of the DL RFID protocol is implemented by DL RFID SDK (Software Development Kit).

  • Page 31: The Reader Configuration File

    DLRFIDD DAEMON The reader configuration file By using the READER_NAME above variable the daemon will load the reader configuration file named /etc/dlrfidd/READER_NAME.conf; so, in our exam- ple, the daemon will read file /etc/dlrfidd/ion.conf to set specific reader set- tings. The reader configuration file is by default: Product Reference Guide...

  • Page 32: Developing Application For Dlr-Pr001

    RFID Portal Reader 4 Antennas Developing Application for DLR-PR001 The host application for DLR-PR001 reader can be written in C, Java and C#. Your application communicates with the reader through ethernet interface. For more details about the communication protocol refer to the DL RFID SDK (Software Development Kit) library.

  • Page 33: Technical Specifications

    Technical Specifications Technical Specifications Item Description Physical Characteristics Reader Dimension (W-L-H) 27.5 x 15.5 x 3.9 cm  / 10.8 x 6.1 x 1.5 in Weight 1300 g / 45.86 oz Electrical Characteristics Electrical Power 9÷36 VDC – 60W RF Characteristics Type UHF - RFID Standard Compliance EPC C1 G2/ISO 18000-6C 865.60÷867.60  MHz  European  standard  (ETSI  EN  302   Frequency Bands  208) 902.00÷928.00 MHz  US standard (FCC part 15) Up to 32 dBm (1.6W) conducted (ETSI) RF Output Power Up to 30 dBm (1W) conducted (FCC) Antenna Up to 4 external antennas (RP-TNC connectors) Gen 2 Dense Reader Mode Management Receiving Capability Data rate up to 400 Kb/s Technical Characteristics...

  • Page 34: Power Supply Connector Electrical Characteristics

    RFID Portal Reader 4 Antennas Power Supply Connector Electrical Characteristics Pin # Pin Function Parameter Input current Input DC Voltage GPIO Port Electrical Characteristics Parameter Typ. Unit Output current (low level) Output current (high level) -0.5 Input current Internal pull-up resistor kΩ Serial Port Electrical Characteristics Pin name Pin# Parameter Typ.

  • Page 35: Datalogic Limited Factory Warranty

    Datalogic to scrap all parts removed from the repaired product. The war- ranty period shall extend from the date of shipment from Datalogic for the duration published by Datalogic for the product at the time of pur- chase (Warranty period). Datalogic warrants repaired hardware devices...

  • Page 36: Warranty Exclusions

    Customer shall be responsible for packaging and shipping the product to the designated Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the ship- ment is to a location within the country in which the Datalogic service center is located.

  • Page 37: Risk Of Loss

    Risk of Loss Customer shall bear risk of loss or damage for product in transit to Dat- alogic. Datalogic shall assume risk of loss or damage for product in Dat- alogic’s possession. In the absence of specific written instructions for the...
