Summary of Contents for Nortel i2004

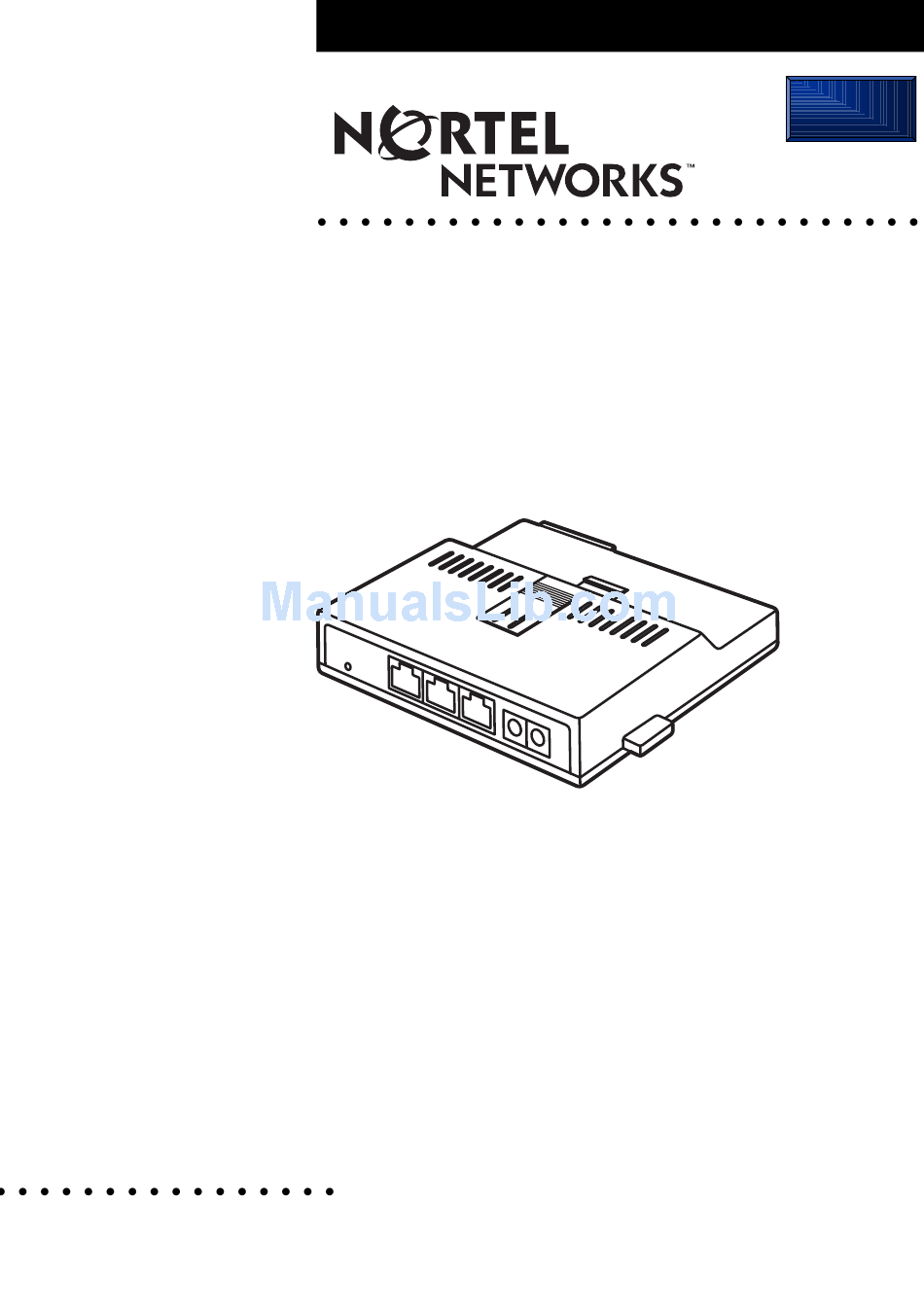

  • Page 1 Return to Menu Internet Telephone Switch Module Installation Guide...

  • Page 3: Introduction To The Internet Telephone Switch Module

    Nortel Networks i2004 Internet Telephone. With the Internet Telephone Switch Module installed you can run your PC and your i2004 Internet Telephone with one Ethernet connection into your office. This device prioritizes voice traffic at the point of interface to the customer’s LAN ensuring voice calls always have access to the customer’s Data...

  • Page 4: Connection And Installation

    Connection and installation Caution: Severe damage to your i2004 Internet Telephone will occur if this telephone is plugged into an ISDN connection. Consult your System Administrator to make sure you are plugging your telephone into a 10/100 BaseT Ethernet jack.
  • Page 5 12. Connect the AC cord to the power supply module and then to an AC wall outlet. A green LED lights on the front of the Module when the i2004 Internet Telephone and Internet Telephone Switch Module are connected and powered. Verify data connectivity by the state of the lamps on the Ethernet Jacks.
  • Page 6 Figure i: Connecting the components Figure ii: Connecting the cords and cables To computer P0919850 Issue 02 Internet Telephone Switch Module Installation Guide...

  • Page 7: Important Safety Instructions

    Do not connect the Internet Telephone Switch Module to exposed plant. For connection to Nortel Networks i2004 Internet Telephone and Nortel Internet Telephones only. Do not connect the teledapt cabling of the Internet Telephone Switch Module to the Public Switched Telephone Network (PSTN).

  • Page 8: Warranty Information For Canada And The U.s.a

    Nashville, TN, 37210 In Canada: Nortel Networks 30 Norelco Drive, Weston, Ontario, M9L 2X6 Canada For technical support, contact your authorized Nortel Networks service representative or call 1-800-2LANWAN. Have your contract number ready. P0919850 Issue 02 Internet Telephone Switch Module Installation Guide...
  • Page 10 1-800-4 NORTEL http://www.nortelnetworks.com/succession P0919850 Issue 02 Printed in Taiwan • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • •...
