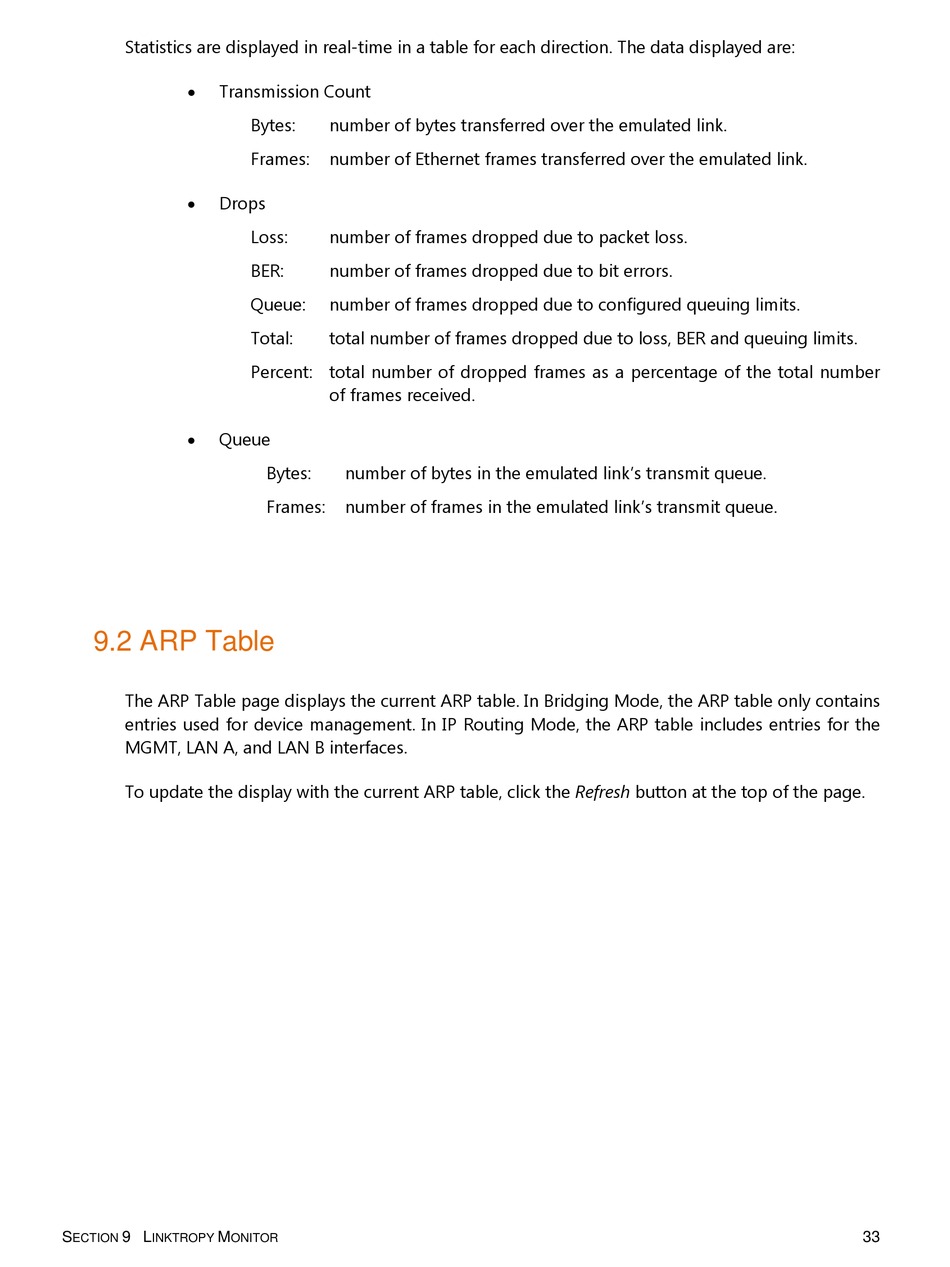

Statistics are displayed in real-time in a table for each direction. The data displayed are:
Transmission Count

Drops

Queue


9.2 ARP Table

The ARP Table page displays the current ARP table. In Bridging Mode, the ARP table only contains
entries used for device management. In IP Routing Mode, the ARP table includes entries for the
MGMT, LAN A, and LAN B interfaces.
To update the display with the current ARP table, click the Refresh button at the top of the page.
S 9 L M
ECTION INKTROPY ONITOR
Bytes: number of bytes transferred over the emulated link.
Frames: number of Ethernet frames transferred over the emulated link.
Loss: number of frames dropped due to packet loss.
BER: number of frames dropped due to bit errors.
Queue: number of frames dropped due to configured queuing limits.
Total: total number of frames dropped due to loss, BER and queuing limits.
Percent: total number of dropped frames as a percentage of the total number
of frames received.
Bytes: number of bytes in the emulated link's transmit queue.
Frames: number of frames in the emulated link's transmit queue.
