HPE FlexNetwork MSR Series Configuration Manual page 467

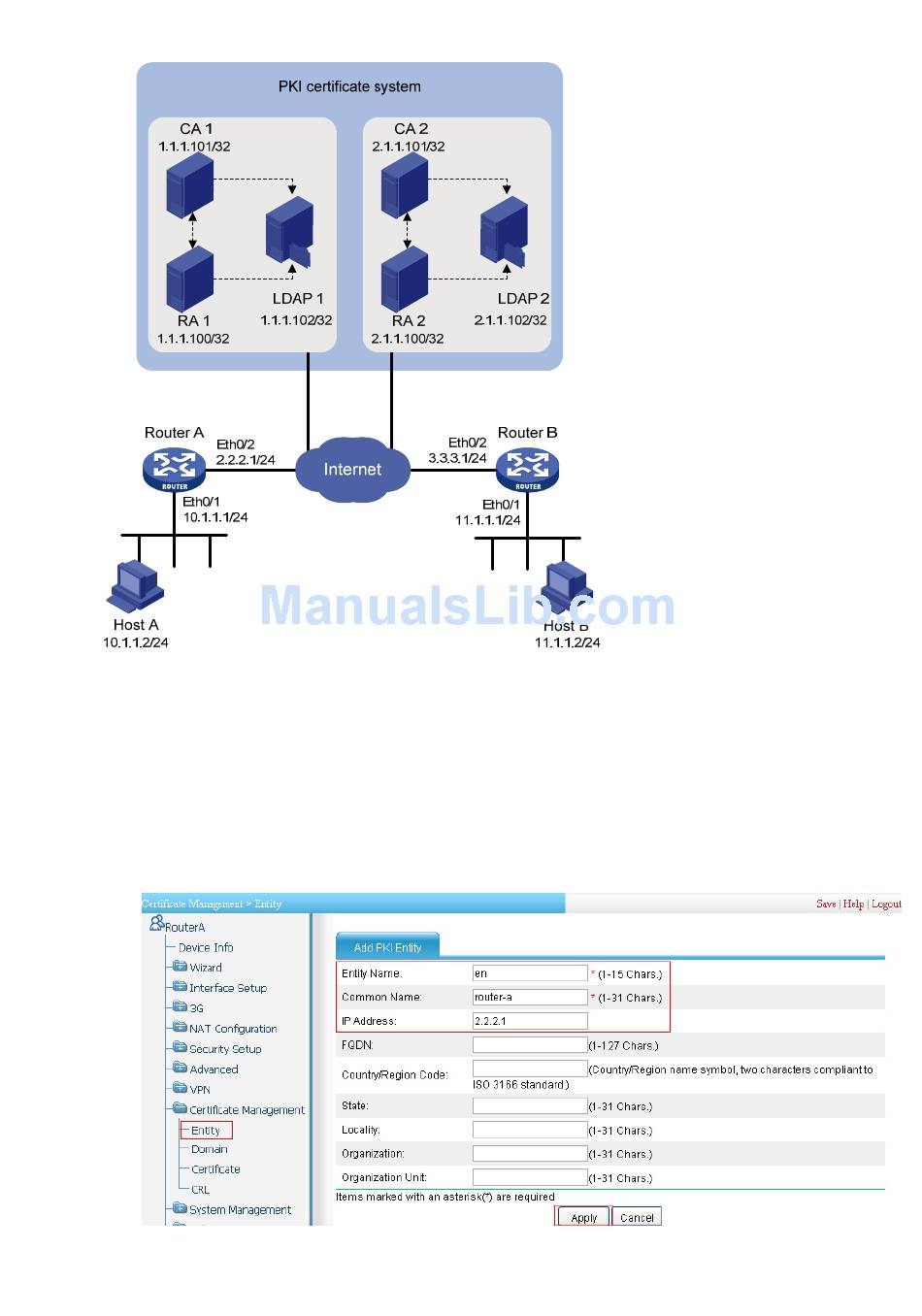

Figure 498 Network diagram
Configuring Router A
1. Create a PKI entity:
a. From the navigation tree, select Certificate Management > Entity.
b. Click Add.
c. Enter en as the PKI entity name, enter router-a as the common name, enter 2.2.2.1 as the
IP address of the entity, and click Apply.
Figure 499 Creating a PKI entity
2. Create a PKI domain:
113
