HPE FlexNetwork MSR Series Configuration Manual page 231

g. Select the Gateway IP Address box, and then enter 10.10.1.126.
h. Select the Primary DNS Server box, and then enter 10.10.1.2.
i. Click Apply.

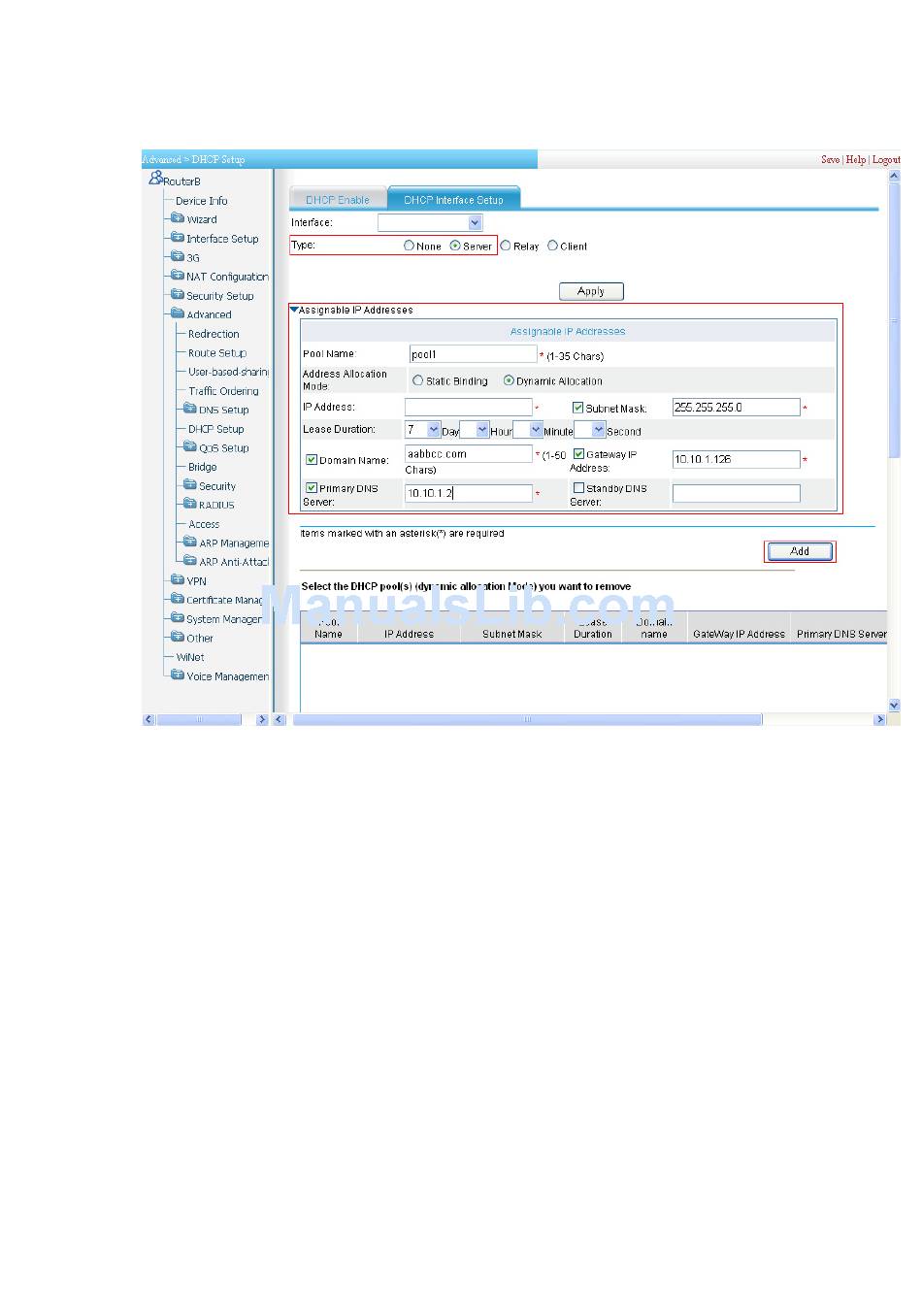

Figure 232 Dynamic DHCP address pool configuration
5. Exclude IP addresses from dynamic allocation (DNS server and gateway addresses):
Figure 233.
a. Expand the Forbidden IP Addresses node, as shown in
b. Enter 10.1.1.2 in the Start IP Address field.
c. Enter 10.1.1.2 in the End IP Address field.
d. Click Apply.
Figure 233.
e. Enter 10.1.1.126 in the Start IP Address field, as shown in
f. Enter 10.1.1.126 in the End IP Address field.
g. Click Apply.
216
