Quantum II
owner's manual

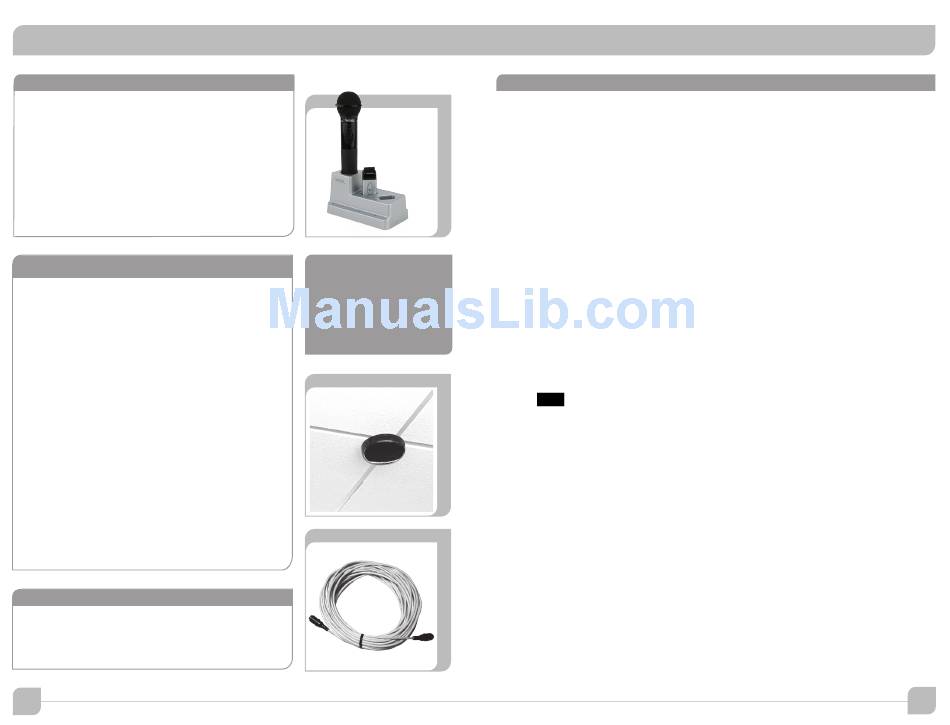

BRC-60 drop-in battery charger
This stylish desktop drop-in charging station makes
it convenient and easy to recharge both Sapphire
Pendant and Handheld Microphones. Charge one
IRH-35 handheld transmitter and up to two IRT-60
Sapphire transmitters simultaneously. Charging
indicator lights illuminate Red when charging,
and Green when fully charged. The power LED
illuminates Blue when plugged in.
ICS-55 ceiling sensor
The ceiling sensor is the preferred infrared sensor
for optimum performance. This is the unit that
needs to be installed on the ceiling. It comes with
a mounting/support bracket and 50 feet of plenum
rated cable with RCA connector on each end. The
ideal location for the dome sensor would be in the
center of the ceiling. This will provide a clear signal
path for the IR transmission from the transmitter to
the dome sensor without obstruction. In addition,
you will have 360° coverage and will minimize
the transmission distance for more reliable
performance. It collects the infrared transmission
signal via 6 large detecting diodes.
The additional sensor and cable can be added
for larger rooms or rooms with poor connectivity.
Locate and install the sensors for optimum IR
reception, run the cable to the sensor input on top
of Quantum II system.

sensor cable

A Cable connects the sensor to the receiver. The
cable is dual-shielded with a male RCA connector
on each end and is plenum rated.
8
power "on" LED
Green light indicates that
the sensor is receiving
power from the receiver.
installation of ICS-55 ceiling sensor
The ideal location for the ceiling sensor is in the center of the ceiling. This will provide a
clear signal path for the IR transmission from the transmitter to the dome sensor without
obstruction. In addition, you will have 360º coverage and will minimize the transmission
distance for more reliable performance. An additional sensor can be added for large or odd
shaped rooms.
ICS-55
ICS-55
9
