Summary of Contents for TeachLogic Quantum II

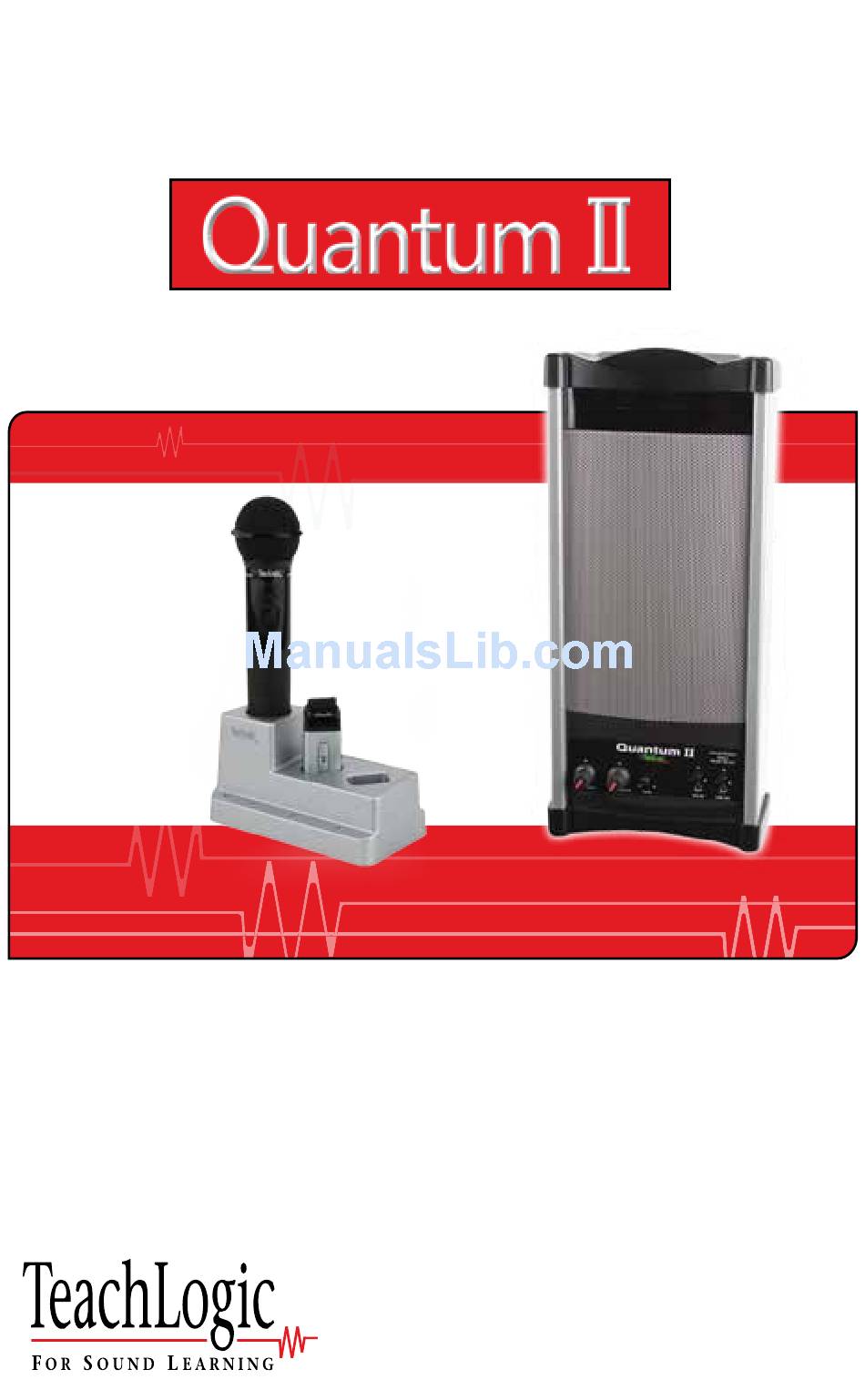

- Page 1 owner’s manual Infrared Wireless Microphone System...
- Page 2 Quantum II owner’s manual thank you Congratulations on the purchase of your new Quantum II Infrared Wireless Microphone Sound System. You can be assured that the Quantum II fulfills all specifications and was produced to very high quality control standards.
- Page 3 Read Instructions All safety and operation instructions should be read before operating this TeachLogic product. Retain Instructions Safety and operating instructions should be kept for future reference. Water & Moisture certifications This product should not be operated near water.
-
Page 4: Table Of Contents
About Infrared ............Product Description ........... Assembly and Installation .......... 4&5 Quantum II Controls ..........Sapphire Microphone/Transmitters IRT-55 ..... Handheld Microphone/Transmitter IRH-35 ..... Drop-in Chargers BRC-60/Ceiling Sensor ICS-55 ... Installation of Ceiling Sensor ........Operation of Wireless Microphone ...... -
Page 5: About Infrared
“What’s said in sensor detects the sequential signal and the the room, stays in electronic circuitry in the Quantum II converts that sequential signal into a line level analog audio the room”. signal. Now that audio signal can be fed into an amplifier. -
Page 6: Product Description
II mixer. An additional audio sources, such as; computer, DVD, VCR or Projector can be plugged in to the Quantum II. The AUX IN level controls the individual audio input. The audio will then be fed to the speaker in the column for voice reinforcement throughout the room. -
Page 7: Assembly And Installation
With the power supply resting on the pegs, tighten the wire tie thus securing the power supply to the bracket. • Insert the DC plug into the power input jack and place the Quantum II into the bracket, secure each end with the bolt and washer provided. - Page 8 Quantum II owner’s manual quantum controls features 1. Threaded insert for wall mount bracket. 2. External sensor inputs. 3. Internal sensors. 4. Internal speaker. 5. Power switch & Channel A Control. 6. Power switch & Channel B Control. 7. Power indicator LED.
-
Page 9: Quantum Ii Controls
II controls • Channel A turns power “on/off” (red LED indicator) and adjusts the volume of the IR microphone assigned to it. Normally the Pendant transmitter is assigned to channel A. When the transmitter is turned “on” a green LED will light, indicating that an IR signal is being received from the transmitter. -
Page 10: Sapphire Microphone/Transmitters Irt-55
Quantum II owner’s manual infrared microphone/transmitters The infrared microphone/transmitter is comprised of a microphone input, signal processing circuits and several emitting diodes that transmit the vocal signal to the sensor. The microphone/transmitter can be the Sapphire or Handheld. The rechargeable batteries will provide 6–8 hours of service per charge. -
Page 11: Handheld Microphone/Transmitter Irh-35
Dark surfaces will not reflect infrared well and can limit distance of transmission. Rooms larger than 1600 Sq. Ft or have high ceilings can begin to exceed the ultimate performance of the Quantum II. If dropouts are experienced in areas, as additional sensor ICS-55 sensor can extend the system performance. -
Page 12: Drop-In Chargers Brc-60/Ceiling Sensor Ics-55
Locate and install the sensors for optimum IR reception, run the cable to the sensor input on top of Quantum II system. sensor cable A Cable connects the sensor to the receiver. The cable is dual-shielded with a male RCA connector on each end and is plenum rated. -
Page 13: Installation Of Ceiling Sensor
installation of ICS-55 ceiling sensor The ideal location for the ceiling sensor is in the center of the ceiling. This will provide a clear signal path for the IR transmission from the transmitter to the dome sensor without obstruction. In addition, you will have 360º coverage and will minimize the transmission distance for more reliable performance. -
Page 14: Operation Of Wireless Microphone
The testing will be done using an IR transmitter (Sapphire or Handheld) to confirm good connectivity and quality audio. system operation • On Quantum II set Ch A & B volume controls to off (counter clock wise) • Turn the Quantum II “ON”, Blue LED will light •... -
Page 15: Troubleshooting
troubleshooting Problem Solution System is turned • Verify AC power; the Blue “on” but there is no LED lights when turned sound “on” Check if system has • been unplugged Check circuit breaker • Call maintenance for • assistance System has power but no sound •... -
Page 16: General Specifications
Quantum II owner’s manual transmitter Quantum II (IRC-360) specs. Receiver Input Infrared FM Modulation FM Wide-band Reception Frequencies Ch. A: 2.08 MHz Ch. B: 2.54 MHz Infrared Wavelength 850 nm Tone Signal Ch. A: 32.768 KHz De-emphasis 50 µs Frequency Response... -
Page 17: Microphone Specifications
Sapphire transmitter (IRT-55) specs. Transmitting Diodes Operating Range 1,600 Ft ². 60 Ft. Line of Sight Battery Discharge Indicator Blue Full Purple Medium Flashing Red Very Low Battery Battery Used Lithium-ion (3.7V / 620mAh) Battery Life Approx. 8-9 Hrs/Charge External Power Charger DC +5V, Micro USB Connector Transmission Angle Conical... -
Page 18: Five Year Limited Warranty
Quantum II owner’s manual five year limited warranty TeachLogic IR products are guaranteed to be free of defects in workmanship or material for a period of five (5) years from date of original purchase, subject to the following conditions: 1. Warranty excludes defects caused by normal use and wear, any abuse, or failure to use the product in accordance per instructions. - Page 19 notes Date of Purchase: Model Number: Serial Number: Notes:...
- Page 20 1688 Ord Way Oceanside, CA 92056 0018 • • • sales@teachlogic.com 1283 • • • 3/1/18 www.teachlogic.com...
