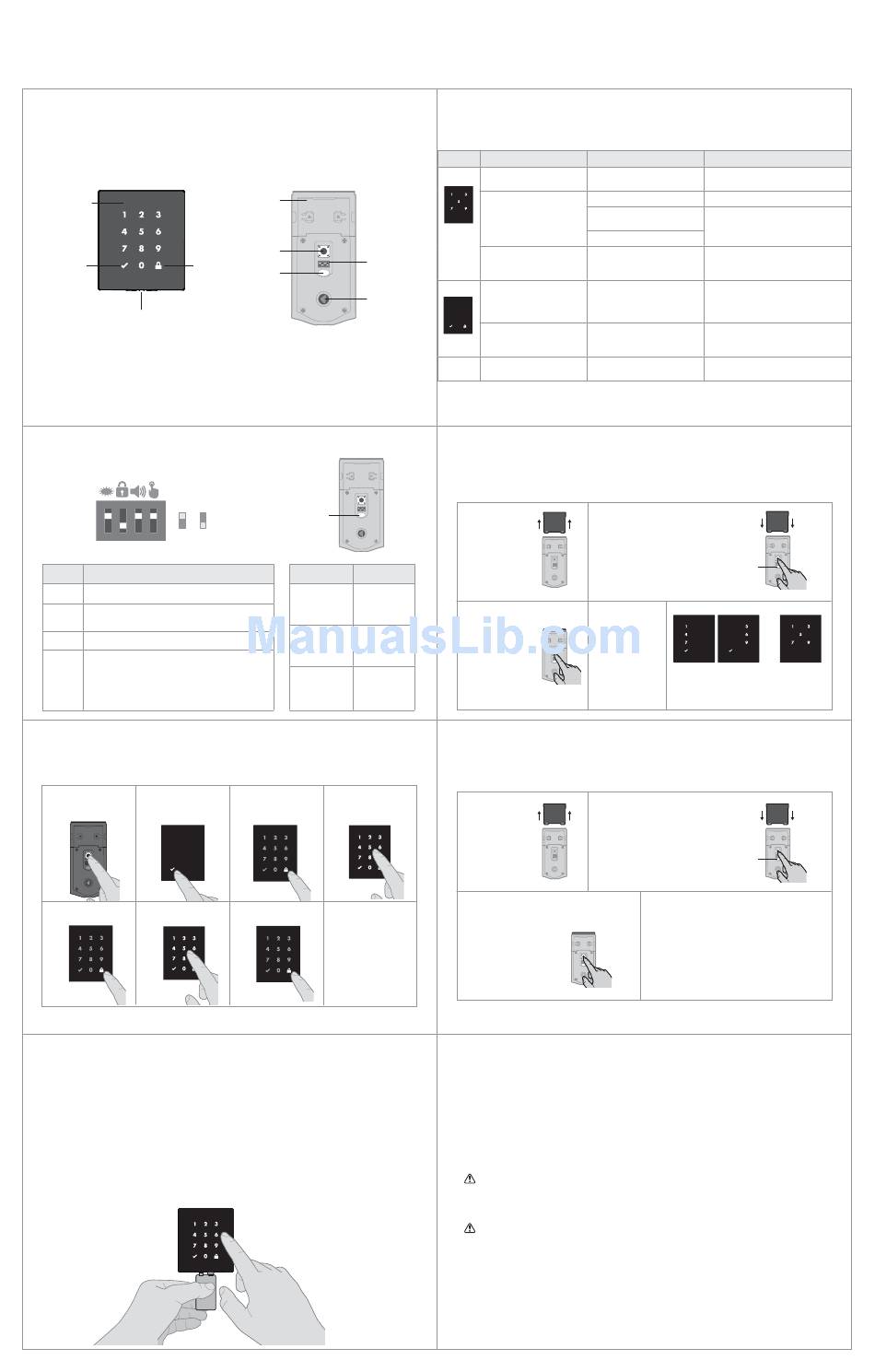

Obsidian at a Glance
Exterior
Touchscreen
Checkmark Lock
symbol symbol
Emergency
Power 9 Volt Port
Switches and Status LED Colors
Switches
On Off
1 2 3 4
Switch Function
1 Door lock status LED blinks every 6 seconds
Lock automatically re-locks door 30 seconds after
2
unlocking. Disabled if no codes are programmed.
3 Audio
SecureScreen feature displays random digits to be
pressed before entering user code. This added-
4 security feature ensures that there are fingerprints
on all digits so that codes cannot be identified by
examining the touchscreen for fingerprints.
Deleting a single user code
Note: All codes may be deleted at once if the mastercode is enabled. For more information about the
mastercode, consult the online Programming and Troubleshooting Guide.
1 Keep door open. 2 Press Checkmark
Press Program symbol once.
button once.
5 Press Lock symbol 6 Re-enter user code.
once.
If the screen is not pressed for 20 seconds, the system will time out,
and you will need to restart the procedure.
Low Battery
If the 4 AA batteries are too low to operate the lock, use a 9-Volt Alkaline battery to temporarily
power the touchscreen.
Make sure both terminals on the 9-Volt battery touch the terminals at the bottom of the
touchscreen. Hold the 9-Volt in place while entering your user code to unlock the door. Continue
holding the 9-Volt in position until the Checkmark symbol illuminates and the door unlocks.
Note: If you remove the battery before the Checkmark symbol illuminates, you will need to re-enter
your user code
Reference Guide
Interior (cover removed)
Back
panel
Program
button
Switches
Status
LED
Turnpiece
shaft
Note: When the cover is removed,
the turnpiece shaft can be used to
manually lock and unlock the door.
Status
LED
Color Lock Status
Blinking green Unlocked
Blinking amber Locked
Blinking red Low battery
3 Press Lock symbol 4 Enter user code to
once. be deleted.
If unsuccessful
7 Press Lock symbol
once.
Make sure to enter
the same valid code in
steps 4 and 6.
Test code
While the door is open,
test the user code to
make sure it no longer
unlocks the door.
System Alerts
Display Alert Reason
"X" pattern flashes one time
One incorrect code entered.
with one beep*.
No user code programmed.
"X" pattern flashes three Programming timeout after 20
times with three beeps*. seconds.
Unsuccessful programming.
"X" pattern flashes 15 times Three incorrect codes entered
with 15 beeps* within one minute.
Checkmark and lock symbols
flash simultaneously five
Low battery.
times with long continuous
beep*.
Checkmark and lock symbols
Door jammed while attempting
alternate flashing five times
to lock.
with long continuous beep*.
Interior assembly is
N/A Lock beeps continuously.
disconnected from exterior.
*Beeping sound will only be heard if switch #3 is on.
Manual Door Handing
If needed, the door handing process can be initiated manually.
This is useful if the lock is being moved to a diff erent door.
1 Remove 2 Press and HOLD the Program
battery pack.
3 Press the Program 4 The latch bolt
button once more.
Factory Reset
A factory reset will delete all codes associated with the lock, and it will
remove it from your smart home system.
1 Remove 2 Press and HOLD the Program
battery pack.
3 Press the Program button
once more. The status
LED will flash green and
red several times.
Important Safeguards
1. Read all instructions in their entirety.
2. Familiarize yourself with all warning and caution statements.
3. Remind all family members of safety precautions.
4. Protect your user codes and mastercode.
5. Dispose of used batteries according to local laws and regulations.
CAUTION: Prevent unauthorized entry. Since anyone with access to the back panel can
change the user codes, you must restrict access to the back panel and routinely check the
user codes to ensure they have not been altered without your knowledge. The use of a
mastercode can help protect your system's settings.
WARNING: This Manufacturer advises that no lock can provide complete security by itself.
This lock may be defeated by forcible or technical means, or evaded by entry elsewhere
on the property. No lock can substitute for caution, awareness of your environment, and
common sense. Builder's hardware is available in multiple performance grades to suit the
application. In order to enhance security and reduce risk, you should consult a qualified
locksmith or other security professional.
4 / 4
Solution
Re-enter code.
Program at least one user code.
Attempt programming procedure again.
Re-enter code after 60 second
touchscreen lockout.
Replace batteries.
Manually re-lock door. If needed,
reposition strike.
Remove battery pack, reconnect the interior
to the exterior, then replace battery pack.
button while reinserting the
battery pack.
Release button once battery
pack is installed. The status LED
will flash red and green.
Status
LED
will extend and
retract to learn
the orientation
of the door.
Success
If the touchscreen indicates a failure, see the
online Programming and Troubleshooting Guide
or call Technical Support.
button while reinserting
the battery pack.
Keep holding the button for 30
seconds until the lock beeps
and the status LED flashes red.
Status
LED
4 After a few seconds, the lock will
initiate the door handing process, and
the latch bolt will extend and retract
to learn the orientation of the door.
© 2017 Spectrum Brands, Inc.
Failure
