was furthest out of range for the sensor before the alarm
cleared (see the Points table for the actual value).
• Alarms can only be configured on the thermocouple
channel; they are not available for the internal 10K
thermistor (temperature) channel.
Burst Logging
Burst logging is a logging mode that allows you to set up more
frequent logging when a specified condition is met. For
example, let's say the logger is recording data at a 5-minute
logging interval and burst logging is configured to log every 10
seconds when the temperature goes above 2,000°F (the high
limit) or falls below -200°F (the low limit). This means the logger
will record data every 5 minutes as long as the temperature
remains between 2,000°F and -200°F. Once the temperature
reaches 2,100°F, for example, the logger will switch to the
faster logging rate and record data every 10 seconds until the
temperature falls back below the high limit (or 2,000°F in this
case). At that time, logging then resumes every 5 minutes at
the normal logging interval. Similarly, if the temperature falls to
-250°F, for example, then the logger would switch to burst
logging mode again and record data every 10 seconds. Once the
temperature rises back to -200°F, the logger will then return to
normal mode, logging every 5 minutes. To set up burst logging:

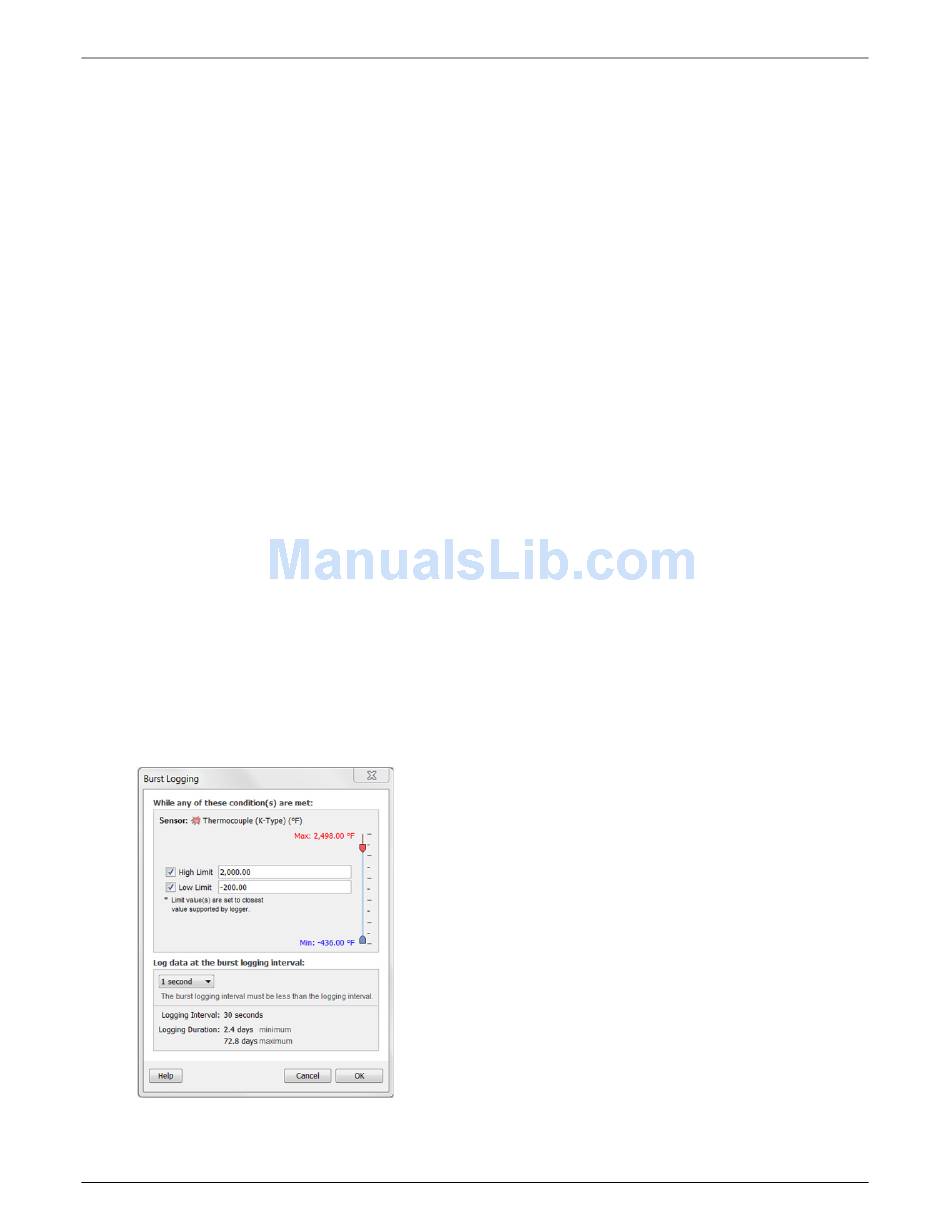

1. Select Burst for Logging Mode in the Launch Logger
window. If Burst has already been configured for this
logger, click the Edit button in the Launch Logger window.
Note that you cannot set up alarms with burst logging. You
also cannot select the Stop Logging option "Never (wrap
when full)" if burst logging is configured.
2. In the Burst Logging window, select the High Limit checkbox
if you want to set up a condition in which burst logging will
occur when the sensor reading rises above the high limit
value. Type in the value or drag the red upper slider.
3. Select the Low Limit checkbox if you want to set up a
condition in which burst logging will occur when the sensor
reading falls below the low limit value. Type in the value or
drag the blue lower slider.
4. Set the burst logging interval, which must be less than the
logging interval. Select either a preset burst logging interval
