HOBO® Temp Data Logger (UX100-001) Manual

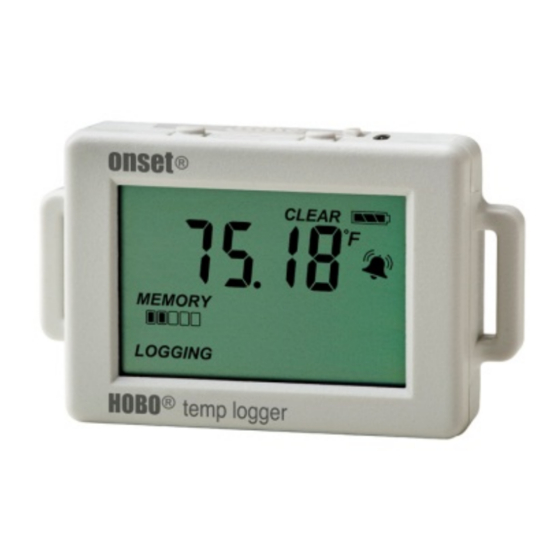

HOBO Temp Data Logger
UX100-001
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
Required Items:
• HOBOware 3.4 or later
• USB cable (included with
software)
16208-G
The HOBO Temp data logger records temperature in indoor environments with its integrated
sensor. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or
low temperatures. Or, you can set up burst logging in which the logger records data at a different
interval during certain conditions. The logger can also calculate minimum, maximum, average, and
standard deviation statistics. This compact data logger has a built-in LCD screen to monitor
temperature, logging status, battery use, and memory consumption in between readouts.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Response Time
Drift
Logger
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Power Source
Battery Life
Memory
Download Type
Full Memory Download Time
LCD
Size
Weight
Environmental Rating
Plot A: Temperature Accuracy and Resolution
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F); see Plot A
8 minutes in air moving 1 m/s (2.2 mph)
<0.1°C (0.18°F) per year
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
1 second to 18 hours, 12 minutes, 15 seconds
Fixed interval (normal), burst, or statistics
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, or date & time
Push button
±1 minute per month at 25°C (77°F), see Plot B
One 3V CR2032 lithium battery and USB cable
1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greater
128 KB (84,650 measurements, maximum)
USB 2.0 interface
20 seconds
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly
or go blank in temperatures outside this range
3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.)
23 g (0.81 oz)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Plot B: Time Accuracy
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Onset HOBO UX100-001
Summary of Contents for Onset HOBO UX100-001
- Page 1 HOBO® Temp Data Logger (UX100-001) Manual The HOBO Temp data logger records temperature in indoor environments with its integrated sensor. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low temperatures. Or, you can set up burst logging in which the logger records data at a different interval during certain conditions.
- Page 2 HOBO Temp Data Logger (UX100-001) Manual Logger Components and Operation LCD Symbol Description battery power remaining. Battery Tray The logger has been configured to stop logging Alarm/Stats Button when memory fills. The memory bar indicates the Start/Stop Button Temperature Sensor approximate space remaining in the logger to record data.
- Page 3 HOBO Temp Data Logger (UX100-001) Manual Notes: 3. Configure filters (optional). Click the Filters button to create additional filtered data series. Any filtered series will • You can disable the LCD screen when logging. Select be available automatically upon reading out the logger. “Turn LCD off”...
- Page 4 HOBO Temp Data Logger (UX100-001) Manual • Specific Stop Date. Logging will end at a date and time then the alarm will trip when the time the sensor is you specify. Note that if you also configure the logger for continuously out of range is equal to the selected duration.
- Page 5 HOBO Temp Data Logger (UX100-001) Manual • Burst logging mode can begin or end when the sensor again and record data every 10 seconds. Once the temperature rises back to 32°F, the logger will then return to normal mode, reading is within the logger specifications of 0.02°C logging every 5 minutes.
- Page 6 HOBO Temp Data Logger (UX100-001) Manual more statistics you record, the shorter the logger duration Mounting the Logger and the more memory is required. There are several ways to mount the logger using the materials included: • Use the four built-in magnets on the back of the logger to mount it to a magnetic surface.
- Page 7 It is recommended you only record battery voltage for diagnostic purposes. © 2013–2015 Onset Computer Corporation. All rights reserved. Onset, HOBO, and HOBOware are 1-800-LOGGERS (564-4377) • 508-759-9500 trademarks or registered trademarks of Onset Computer Corporation. All other trademarks are the www.onsetcomp.com •...
