HOBO® Temp/RH 2.5% Data Logger (UX100-011A) Manual
Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com
HOBO Temp/RH 2.5%
Data Logger
UX100-011A
Included Items:
• Command™ strip
• Double-sided tape
• Hook & loop strap
Required Items:
• HOBOware 3.7.16 or later
• USB cable
22931-A

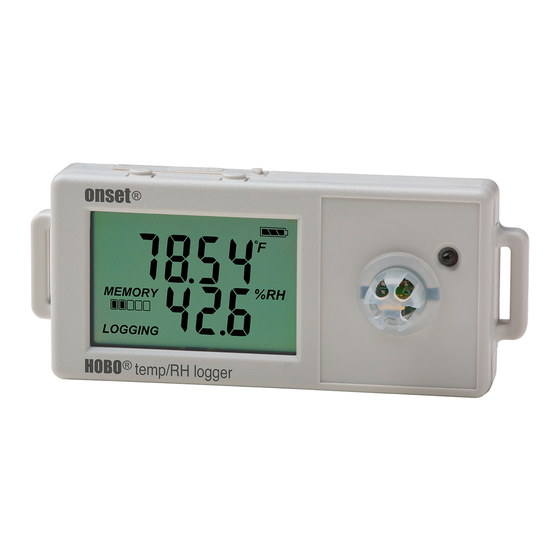

The HOBO Temp/RH data logger records temperature and relative humidity (within 2.5%
accuracy) in indoor environments with its integrated sensors. Using HOBOware®, you can easily
configure the logger alarm to trip for specific high or low sensor readings. Or, you can set up burst
logging in which the logger records data at a different interval during certain conditions. The
logger can also calculate minimum, maximum, average, and standard deviation statistics. This
compact data logger has a built-in LCD screen to monitor the current temperature, relative
humidity, logging status, battery use, and memory consumption in between readouts.
Specifications
Temperature Sensor
Range
Accuracy
Resolution
Response Time
Drift
RH Sensor
Range
Accuracy
Resolution
Response Time
Drift
Logger
Logger Operating Range
Logging Rate
Logging Modes
Memory Modes
Start Modes
Stop Modes
Restart Mode
Time Accuracy
Power Source
Battery Life
Memory
Download Type
Full Memory Download Time
LCD
Size
Weight
Environmental Rating
-20° to 70°C (-4° to 158°F)
±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A
0.024°C at 25°C (0.04°F at 77°F), see Plot A
4 minutes in air moving 1 m/s (2.2 mph)
<0.1°C (0.18°F) per year
1% to 95% (non-condensing)
±2.5% from 10% to 90% typical to a maximum of ±3.5% including
hysteresis at 25°C (77°F); below 10% and above 90% ±5% typical
0.01%
10 seconds to 90% in airflow of 1 m/s (2.2 mph)
<1% per year typical
Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing)
Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification
1 second to 18 hours, 12 minutes, 15 seconds
Fixed interval (normal), burst, or statistics
Wrap when full or stop when full
Immediate, push button, date & time, or next interval
When memory full, push button, or date & time
Push button
±1 minute per month at 25°C (77°F), see Plot B
One 3V CR2032 lithium battery and USB cable
1 year, typical with logging rate of 1 minute and sampling interval of
15 seconds or greater
128 KB (63,488 measurements, maximum)
USB 2.0 interface
20 seconds
LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react
slowly or go blank in temperatures outside this range
3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.)
30 g (1.06 oz)
IP50
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).

Advertisement

loading
Need help?

Need help?

Do you have a question about the HOBO UX100-011A and is the answer not in the manual?

Questions and answers

Summary of Contents for Onset HOBO UX100-011A

  • Page 1 HOBO® Temp/RH 2.5% Data Logger (UX100-011A) Manual Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com The HOBO Temp/RH data logger records temperature and relative humidity (within 2.5% accuracy) in indoor environments with its integrated sensors. Using HOBOware®, you can easily configure the logger alarm to trip for specific high or low sensor readings.
  • Page 2 HOBO Temp/RH 2.5% Data Logger (UX100-011A) Manual Specifications (continued) Plot A: Temperature Plot B: Time Accuracy Accuracy and Resolution Logger Components and Operation Battery Tray LCD Screen: This logger is equipped with an LCD screen that Alarm/Stats Button Start/Stop Button displays details about the current status.
  • Page 3 HOBO Temp/RH 2.5% Data Logger (UX100-011A) Manual HOBO U-Shuttle (unless launched with the “Turn LCD off” LCD Symbol Description option). Once the logger has been offloaded and A sensor reading is above or below the high or low disconnected from the computer, the LCD will turn off alarm that you configured.
  • Page 4: Setting Up Alarms

    HOBO Temp/RH 2.5% Data Logger (UX100-011A) Manual • Statistics. In Statistics mode, maximum, minimum, you can read out the logger at any time (see Reading Out the average, and standard deviation statistics are calculated Logger for details). for all enabled sensors during logging, sampling at an interval you specify.
  • Page 5 HOBO Temp/RH 2.5% Data Logger (UX100-011A) Manual next time you relaunch the logger. Select “Sensor reading reading rises above the high limit value. Type in the value or within limits” if you want the alarm to clear once the sensor drag the red upper slider (see example below).
  • Page 6 HOBO Temp/RH 2.5% Data Logger (UX100-011A) Manual “normal mode.” For example, let’s assume the logger has a 10-minute logging interval and logged a data point at 9:05. Then, the high limit was surpassed and burst logging began at 9:06. Burst logging then continued until 9:12 when the sensor reading fell back below the high limit.
  • Page 7: Battery Information

    The internal RH sensor may require replacement if it is damaged mechanically or by exposure to condensation or chemicals. The replacement sensor (HUM-RHPCB-3C) is available from Onset. To replace the sensor: 1. Remove the cap from the logger case with a one quarter turn counter-clockwise.
  • Page 8 It is recommended you only record battery voltage for diagnostic purposes. © 2013–2018 Onset Computer Corporation. All rights reserved. Onset, HOBO, and HOBOware are trademarks or registered trademarks of Onset Computer Corporation. All other trademarks are the property of their respective companies. 22931-A...
