EcoxGear Boulder Max Pro GDI-EXBMP510 User Manual

Waterproof outdoor speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Boulder Max Pro
Waterproof Outdoor Speaker
Model: GDI-EXBMP510
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Boulder Max Pro GDI-EXBMP510 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EcoxGear Boulder Max Pro GDI-EXBMP510

Summary of Contents for EcoxGear Boulder Max Pro GDI-EXBMP510

  • Page 1 Boulder Max Pro Waterproof Outdoor Speaker Model: GDI-EXBMP510 User Guide...
  • Page 2 Important IMPORTANT SAFETY INFORMATION WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated "dangerous voltage"...
  • Page 3 Important 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. 15. The battery (battery or batteries of battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
  • Page 4 Introduction Features The Boulder Max Pro includes the following features. Rugged Speaker with Big Sound · 100% waterproof and dustproof. Meets IP67 international waterproof and dustproof standards. · 100 Watts dynamic power amplifier for massive sound. · 3-way speaker system with 8 inch full-range + 8 inch passive + 3 inch tweeter.
  • Page 5 Introduction ECOXGEAR and SoundExtreme soundbars, subwoofers, radios, and party speakers. · Play audio streams wirelessly received from an EcoCast Transmitting speaker. No wires! Integrated Addressable RGB LED Lights · Addressable RGB LED strips behind the front grill and built-in LEDCast LED Lighting Controller.
  • Page 6 Boulder Max Pro Overview Boulder Max Pro Layout Connect Port Control Panel Rugged Carrying Handles Charge Port LED Party Lights FRONT...
  • Page 7 Boulder Max Pro Overview Storage Pocket Retractable Handle Rugged Wheels BACK...

  • Page 8: Connections + Power

    · Fully charge prior to extended storage (4-8 hours). · The Boulder Max Pro can be played while battery charges. · Contact ECOXGEAR customer support at support@gracedigital.com prior to attempting to replace battery. · Store unplugged, but fully recharge every 3 months (4-8 hours).
  • Page 9 Connections + Power USB Jack Aux-In Jack Microphone Jack Power Cable Jack LEFT SIDE...
  • Page 10 Connections + Power Important: Maintaining Waterproofness If the caps on the left side panel are not properly closed, the unit is NOT watertight. Waterproof Caps To close properly, turn the cap clockwise so the cap’s arrow point lines up with the locked symbol To access the connections, turn the cap counterclockwise so the cap’s arrow point...

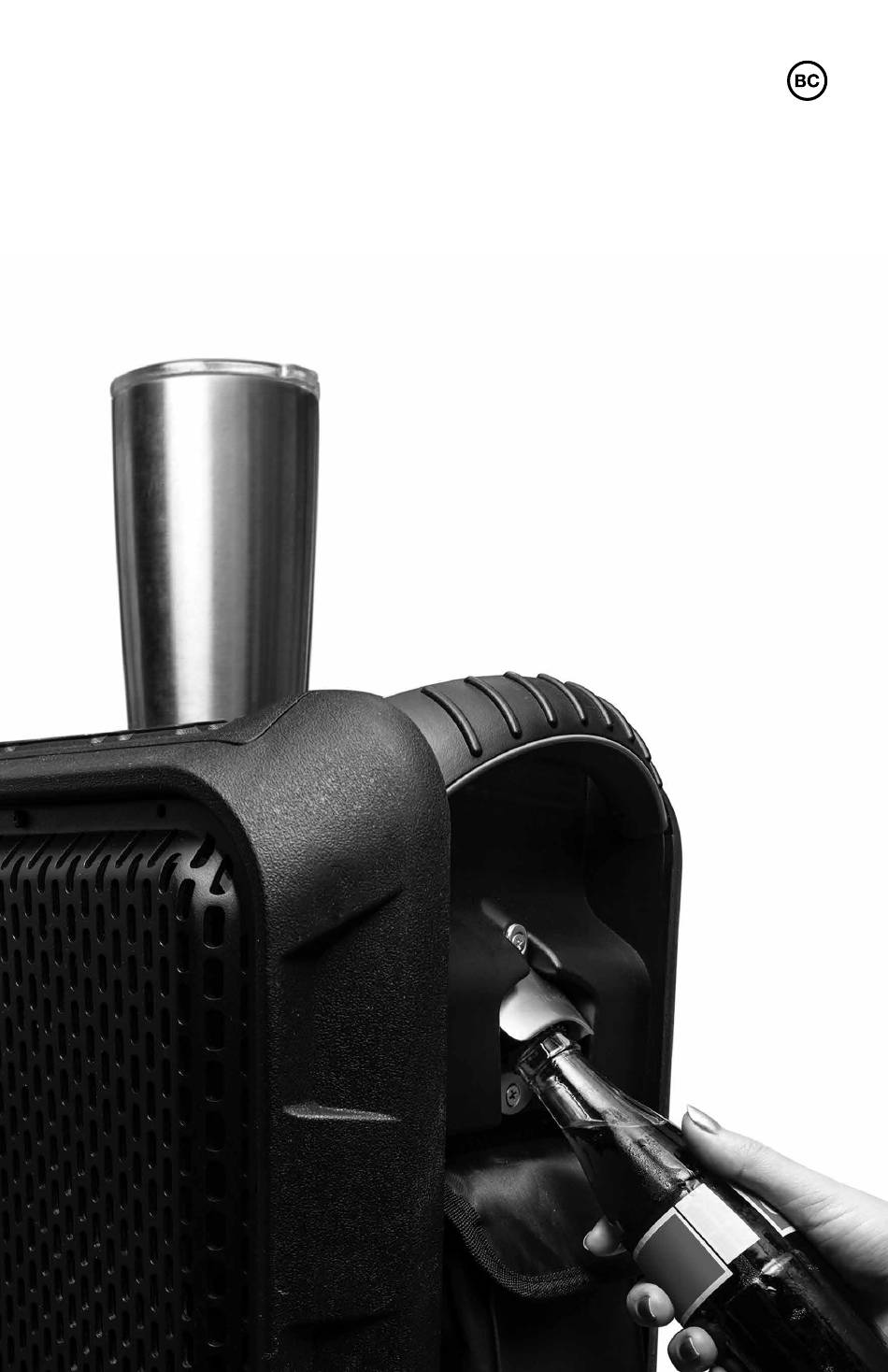

  • Page 11 Connections + Power Bottle Opener Storage Pocket RIGHT SIDE...
  • Page 12 Display + Controls Overview Cup Holders Secure Cradle for Devices 1. Power Button: Press and hold for 3 seconds to turn Boulder Max Pro on or off. 2. Bluetooth Button: When in Bluetooth mode, if the Bluetooth icon is not flashing on the LED screen, press this button to enter pairing mode.
  • Page 13 Display + Controls Overview 7. EcoCast Button: If you have purchased additional Boulder Max Pro speakers (or other ECOXGEAR speakers bearing the EcoCast symbol), short-press this button to cycle through Speaker Mode, EcoCast Transmitting Mode, and Receiving Mode. Press and hold this button to initiate EcoCast pairing with another EcoCast-enabled speaker.
  • Page 14 Display + Controls Overview The Boulder is in the Indicates the speaker volume Bluetooth mode. level of Boulder. (0 to 30) The Boulder is in Indicates the microphone vol. FM mode. level of Boulder. (0 to 30) The Boulder is in Indicates the current FM AM mode.

  • Page 15: Audio Functions

    Audio Functions Power On/Off Power On: Press and hold for 3 seconds to power on the Boulder Max Pro. It will announce, “Speaker on, ready to connect.” Power Off: Press and hold for 3 seconds to power off the Boulder Max Pro. Connecting and Playing Bluetooth Audio 1.
  • Page 16 Audio Functions Notes: · If the pairing is not complete within 5 minutes, the speaker will exit the pairing mode. You need to repeat the pairing steps again. · After the connection is successful, if you turn the speaker off and turn it on again, it will reconnect to the last connected device automatically.

  • Page 17: Listening To Am/Fm Radio

    Audio Functions Dual Simultaneous Connections and Switching Media Player Between Two Phones Your Boulder Max Pro is capable of maintaining simultaneous connections with two smartphones, which allows you and your family or friends to share music on the speaker by switching the music playback between your phone and your family member or friend’s phone.
  • Page 18 Audio Functions Press to adjust the volume. Note: LED lights are known to create interference (noise) on some FM radio frequencies (stations). When you tune or seek a station, it is recommended that you turn the LED Party Lights off. AM/FM Presets The Boulder Max has 5 Presets for AM stations and 5 Presets for FM stations.
  • Page 19 · When set to Speaker Mode, the speaker turns the EcoCast capability off. · When you have two or more Boulder Max Pros or other ECOXGEAR or SoundExtreme speakers bearing the EcoCast symbol , you can build a broadcast system by initiating...
  • Page 20 Audio Functions EcoCast: First Two Speakers Follow the steps below to pair two Boulder Max Pro speakers: 1. Follow the Connecting and Playing Bluetooth Audio instructions to connect one Boulder Max Pro (Speaker A) to your Bluetooth device. After your device is connected to Speaker A, you can play your desired audio.
  • Page 21 Audio Functions EcoCast: Additional Receiving Speakers 1. Turn on the additional EcoCast-enabled speakers (Speaker C and Speaker D) and press the EcoCast Button to cycle through to and initiate EcoCast Receiving Mode. The EcoCast Receiving icon will flash on the LED screen, and the speaker(s) will announce, “EcoCast receiving.”...
  • Page 22 Audio Functions Play Audio Streams From Another EcoCast-Enabled Speaker If there is an EcoCast-enabled speaker in EcoCast Transmitting Mode nearby, you can set your Boulder Max Pro speaker (Speaker A) to EcoCast Receiving Mode and play audio streams from the EcoCast Transmitting speaker (Speaker T): 1.
  • Page 23 Audio Functions EcoCast: Streaming Your AM/FM Radio Station or Aux-In Audio to Multiple Speakers The Boulder Max Pro speaker (Speaker FM) also has the capability to stream AM/FM radio stations or Aux-In Audio to other EcoCast-enabled speakers in Receiving Mode. When playing an AM/FM radio station, the Boulder Max Pro automatically enables EcoCast Transmitting;...
  • Page 24 Audio Functions Adjust the Microphone Volume 1. Press briefly to adjust the microphone volume. 2. Press and hold to adjust the microphone volume continuously (volume levels are 0 to 30). a. Press briefly to increase one volume level. Press and hold to keep increasing the volume until maximum volume level is reached.
  • Page 25 · DEF (Default) – This default setting is created by ECOXGEAR to provide the best neutral audio sound for any setting. · VOC – This setting is optimized to enhance the audio performance for speech such as when listening to news and sporting events (e.g., listening to a play-by-play announcer of a...
  • Page 26 Audio Functions 2. Bass and Treble Settings: Press and hold the EQ Button for 3 seconds to activate the Bass controls and once more to activate the Treble controls. Use the Tune Buttons to decrease/increase the Bass and Treble. Both the Bass and Treble levels range from -4 to 4.
  • Page 27 Lighting Control Concepts LED Lighting Zones, Modes, and Scenes The Boulder Max Pro has addressable RGB LED Party Lights behind the front grill and a built-in LEDCast LED lighting controller. In addition to the Party Lights Button on its Control Panel, the Party Lights can also be controlled by the Free SoundExtreme Smartphone App.
  • Page 28 Lighting Control Concepts Party Modes, the LED Screen will display, “B01” through “B20,” accordingly. The app allows you to customize each of the 20 Party Modes, allowing for nearly unlimited color, cascading, and LED chasing options. 3. Music Mode: There are 16 Music Modes accessible via the Party Lights Button and SoundExtreme Smartphone App.
  • Page 29 Lighting Control Concepts · When the LED lights are on, press and hold the Party Lights Button for 3 seconds will turn the LED lights off. · When the LED lights are on, double-click the Party Lights Button to cycle back to the previous LED Lighting Mode. 2.

  • Page 30: Download And Install

    SoundExtreme Smartphone App. Download and Install For iPhones, download the app from the following URL: https://apps.apple.com/us/app/soundextreme/id1670708941 For Android phones, download the app from the following URL: https://play.google.com/store/apps/details?id=com.cchip.ecoxgear Alternatively, use the following QR Codes to download the SoundExtreme Smartphone App. Android App Overview Password Secured: The app is password protected so others cannot gain access and control your Boulder Max Pro.
  • Page 31 Scenes that are fully customizable and programmable. Set Up a Group: Create and set up a group of devices (multiple speakers, or other ECOXGEAR or SoundExtreme products with LEDCast built-in). This will allow all the LED lights connected to different devices to be controlled by the SoundExtreme Smartphone App at the same time.
  • Page 32 SoundExtreme App 3. If your Boulder Max Pro is powered on, it will show up as LEDs-Boulder on the app’s Connect Device screen. Tap the device name on the screen. A check mark will appear on the right. Tap the Connect button. 4.
  • Page 33 SoundExtreme App 5. Select your Boulder Max Pro. It will take you to the Scene screen. There are 5 predefined Scenes on the Boulder Max Pro. You can turn on one of the 5 Scenes to light up the LEDs. For example, tap the On / Off button at the right for...

  • Page 34: Set Up Zones

    SoundExtreme App Set Up Zones 1. Select your Boulder Max Pro on the Device list, and the app will bring you to the Zone screen. 2. There is only one Zone available for the Boulder Max Pro. Tap the Zone and you will go to the Zone LED Mode Settings screen.
  • Page 35 SoundExtreme App · When you choose a Mode, the LEDs connected to the Zone you selected will light up accordingly, giving you a preview. · If you tap the Save button on the screen, the app will save your setting for the selected Zone.

  • Page 36: Set Up Scenes

    SoundExtreme App Set Up Scenes 1. On the Device List screen, select your Boulder Max Pro (LEDs-Boulder) and the app will bring you to the Zone screen. Tap the Scene tab. The app will show 5 predefined scenes on your Boulder Max Pro. 2.

  • Page 37: Change Password

    SoundExtreme App Change Password To add extra security, you can change the default password of 0000 to your desired 4-digit numeric password. Please note that the password is stored in your Boulder Max Pro, not the SoundExtreme App. So, after you change the password, please make a note in case you forget your password.
  • Page 38 SoundExtreme App 3. Once at the Device Password screen, select the device that you want to change the password to. 4. Enter the current password, the new password, and re-enter the new password. Then tap the Confirm button. 5. If the change is successfully saved, the app will display a confirmation message.

  • Page 39: Factory Reset

    SoundExtreme App Factory Reset If you forget the password, you will need to do a Factory Reset on the Boulder Max Pro so that the password is reset to its default value: 0000. · While the Boulder Max Pro is turned on, press and hold the P3 Preset Button and the Master Volume Button on the Control Panel at the same time for 3 seconds.

  • Page 40: Troubleshooting

    Please contact our Customer Support at support@gracedigital.com or call us at 800.903.9524. Can I replace the battery? The battery in the Boulder Max Pro is replaceable. Please visit www.ecoxgear.com for detailed instructions on how to get a new battery and the proper method for replacing the battery.

  • Page 41: Specifications

    Specifications Dimensions Output Power 100 W (peak) Power Source 12V, 7.0Ah SLA Battery Power Supply Input voltage: 110-230V~50/60Hz USB Output 5V, 2. 1 A 15.5 in / 393 mm Charging Time Approximately 8 hours EcoCast Range 30 ft / 9. 1 m between Casting speaker and Receiving speakers Compatibility Mobile phone/device supporting...

  • Page 42: Important Legal Information

    Read and follow all instructions. Use only as intended. The ECOXGEAR Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP67 waterproofing standards, which means the speaker can be submerged in up to 3 feet of water for 30 minutes without any damage.
  • Page 43 5.) Completely dry and clean your ECOXGEAR prior to attempting to charge the unit. 6.) Return the ECOXGEAR to Grace Digital if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water.
  • Page 44 Boulder Max Pro by ECOXGEAR, a division of Grace Digital Inc., San Diego, California. Designed in California. Made in China. Patents Pending.
