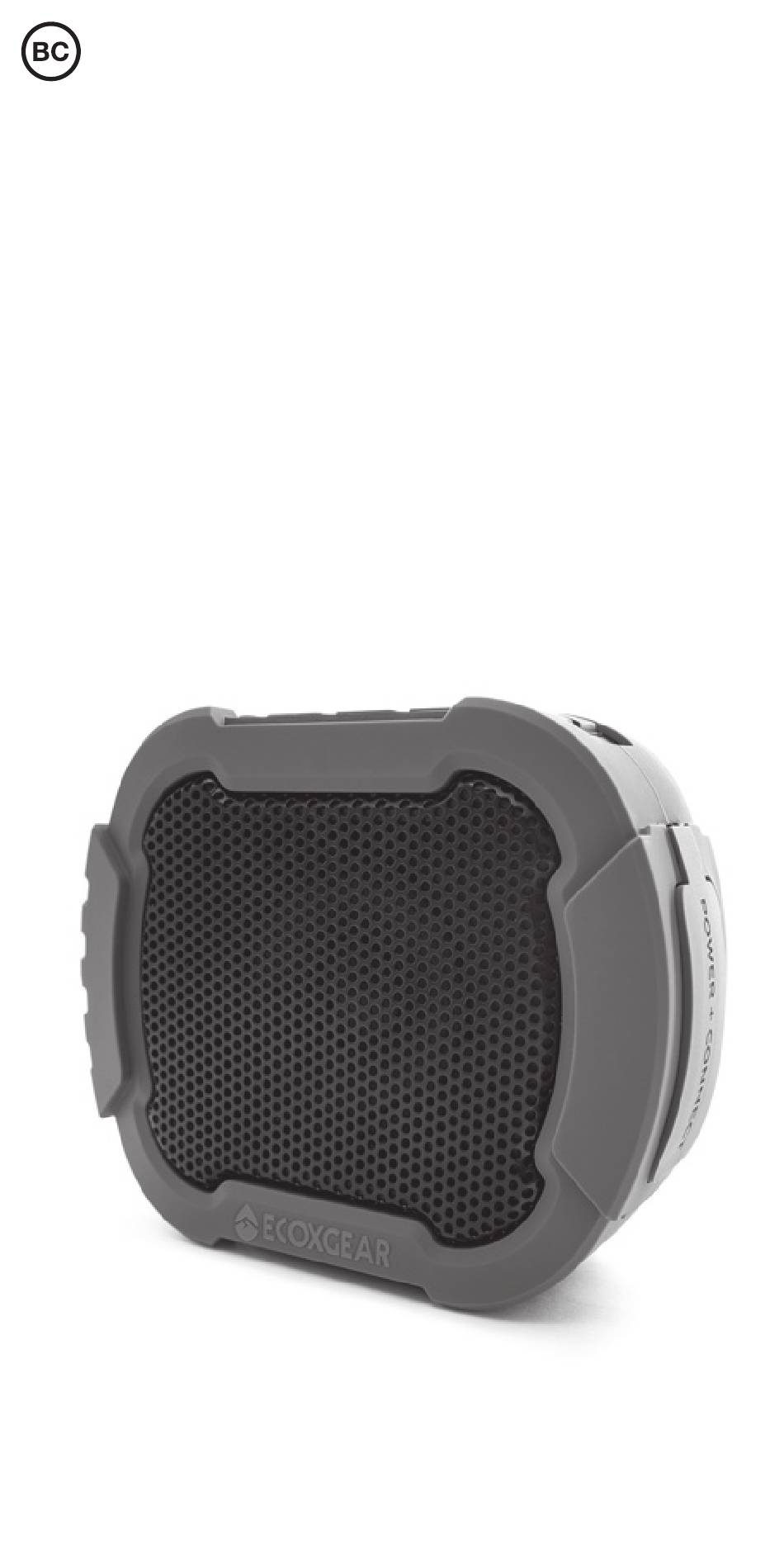

EcoRoam 20+
Models: GDI-EXPRL200...220
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EcoRoam 20+ and is the answer not in the manual?

Questions and answers

Summary of Contents for EcoxGear EcoRoam 20+

  • Page 1 EcoRoam 20+ Models: GDI-EXPRL200...220 User Guide...
  • Page 2: Quick Start

    Quick Start Open Cap on the Side Panel, shown below Turn on the Main Power Switch Press the Standby Button to power on your EcoRoam20+ Search your Bluetooth Connection on your Smart Device Pair & Play...
  • Page 3: Control Buttons

    LED Status Indicators Battery Indicator, Bluetooth, Wireless Pairing Control Buttons Battery Level Indicators...
  • Page 4 Control Buttons & Operations Standby Power Press the Standby Power Button once to power On/Off. IMPORTANT: Standby Power function will NOT operate when the Master Power is set OFF. Master Power Switch under the cap on the Side Panel must be set ON for Standby &...
  • Page 5: Speaker Volume

    Wireless Stereo Pairing Button This functionality is ONLY available with two EcoRoam20+ units. Refer to Wireless Stereo Pairing of Two Speakers for details. Speaker Volume Press to decrease or increase Speaker Volume. NOTE: Some Bluetooth devices may require to be manually set for maximum audio level.
  • Page 6 Play/Pause/ Answer/EcoTalk Press button once to pause & play song tracks and to answer mobile calls (MUST be paired with Bluetooth). Press & hold the button for two seconds to activate the voice assistant on your device (Siri, OK Google, etc.). Once activated, the speakerphone mic on your EcoRoam20+ will hear your voice commands...
  • Page 7: Light Modes

    Light Modes Press button to cycle through five modes: Mode 1: Off Mode 2: Red Light Mode 3: Green Light Mode 4: Music Sync Mode 5: Color Fade Battery Indicator Connect USB to power source. LED on the top panel indicates USB connection charging status.
  • Page 8 Set Up Recommendations 1-2-3 Charge Your EcoRoam20+ Before you power on your EcoRoam20+, connect the USB Micro port to the USB cable and a 5V, 1A power source to fully charge your EcoRoam20+ for best performance. NOTE: Before using your EcoRoam 20+ for the first time, charge the unit until all battery level indicators are green, indicating a full charge.
  • Page 9 Power On, Battery, & LED Status Indicators Once fully charged, press the Standby Power Button the top of your EcoRoam20+. You will see the green LED light & you will hear, “Speaker on. Ready to connect. ” when powering on. IMPORTANT: Make sure that the Main Power Switch, located in the side compartment under the...
  • Page 10: Bluetooth Pairing

    Bluetooth device (Smart Device) and set the device in pairing mode. Available Bluetooth connections shall appear. Select the ECOXGEAR speaker from the list of discovered devices on your Bluetooth device. Wait for a few seconds until the connection is completed.
  • Page 11 When the ECOXGEAR selection is made and the Bluetooth connection is completed, your EcoRoam20+ will announce, “Your phone is connected. ” Once connected, select and play your desired audio. Pairing Mode: If the LED is not flashing or if you wish to place...
  • Page 12 will look to re-establish that connection. If Bluetooth is turned off on your Smart Device, the EcoRoam20+ may not automatically look for the device. RECOMMENDATION: If you are not familiar with Bluetooth pairing for your Smartphone or other Smart Device, refer to the User Guide for your Smartphone to learn how to add and pair a new device (EcoRoam20+ for...
  • Page 13 Wireless Stereo Pairing of Two Speakers First Time Pairing Two Speakers: When you have two EcoRoam 20+ speakers and want to wirelessly pair them for stereo sound, power on the two speakers, making sure neither is connected to a phone. Next, press the Wireless Pairing Button on only one speaker...
  • Page 14 A will announce, "Ready to connect," indicating that it is ready to pair to your phone. Pair Speaker A to your phone by selecting ‘ECOXGEAR’ from the list of discovered Bluetooth devices on your Smartphone. Once connected, Speaker A will announce, “Your phone is connected.
  • Page 15 The speakers will announce, “Speakers paired” and the LED Indicator will turn solid blue on both units. To un-pair two paired speakers, PRESS AND HOLD the Bluetooth Button for 5 seconds on either speaker. NOTES: • Un-pairing the two speakers by pressing the Bluetooth Button will also clear the Bluetooth pairing records on that speaker.
  • Page 16 Master Power Switch & Connections Master Power Switch EcoRoam20+ has a separate Master Power Switch and a Standby Button. The switch MUST be set to the ON position to power your EcoRoam20+. Once the switch is set to ON, use the Standby Button located on the Top Panel to turn the unit On/Off.
  • Page 17 Audio AUX-IN Connect an audio device using the 3.5mm cable connection as an alternative to a Bluetooth connection to your EcoRoam20+. NOTE: Volume level must be controlled from the audio device when connected to the AUX-IN connection. Input Connect the USB cable to the USB micro Input to charge your EcoRoam20+.
  • Page 18 Important: Maintaining Waterproofness Your EcoRoam20+ is only waterproof when the cap is properly closed. In order to properly close the cap, push firmly to be sure the cap fits flat and flush along the edges with the panel. If not properly closed the unit is NOT watertight and may not float.
  • Page 19: Specifications

    Specifications Unit Dimensions 11.4cm 13.9cm 5.8cm Mount Attachment Point...
  • Page 20 Unit Weight 15 ounces Output Power 15W Max Amp, x1 woofer (Ø3”) S/N Ratio 88dB +/- 3dB Power Source 3.7V, 2600mAh Lithium Ion Battery USB Input 5V, 1A Frequency Range 125Hz-18,000Hz Bluetooth Bluetooth® 4.2 Up to 30 m Play Time 15+ hours from full charge...
  • Page 21 Mount Attachment Point ¼” diameter Pairing Speakers Up to 30 ft / 9.1 m between paired speakers Charging Options USB cable to USB outlet, to 5V AC adapter, or to Computer Charging Time Approximately 3 hours Recommended Storage (Battery) Temperature 15°C Operating Temperature -5°C to 40°C...
  • Page 22: What's In The Box

    What’s in the Box EcoRoam 20+ Models: GDI-EXPRL200...220 User Guide EcoRoam20+ User Guide USB Cable...
  • Page 23 Optional Accessories For Charging AC (5V, 1A) USB Wall Outlet Power Adapter For Mounting Suction Cup Mount (¼” mount) Handlebar Mount Adapter (¼“ mount)
  • Page 24: Fcc Statement

    FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 PRODUCT USE AND PROTECTION: Read and follow all instructions. Use only as intended. The ECOXGEAR Bluetooth speaker is intended to be used indoors or outdoors and in land or water environments. The speaker has been tested to IP67 waterproofing standards, which...
  • Page 26 In this situation, please return the unit to ECOXGEAR for a free assessment. If we have found that the unit has carried water, we will repair or replace the unit free of charge.
  • Page 27 Do not attempt to mount the unit except with the approved ECOXGEAR mounts. Doing so could cause damage to the unit allowing water to ingress. A unit with water ingress should not be charged due to potential risk of fire or shock.
  • Page 28 6) Completely dry and clean your EcoRoam20+ prior to attempting to charge the unit. 7) Return the EcoRoam20+ to ECOXGEAR if you suspect water ingress into the unit or if the unit has experienced a severe impact that may have affected the integrity of the unit to take on water.
  • Page 29: Care, Maintenance, & Precautions

    2) Never use your ECOXGEAR if you have dropped it or thrown it against a hard surface which may have destroyed the integrity of the speakers, housings, or gaskets. In the event of a severe impact to your unit please return the unit to ECOXGEAR to review for potential damage.
  • Page 30: Limited Manufacturer's Warranty

    6) AVOID prolonged exposure to ultraviolet radiation (UV sunlight) and strong magnetic fields. 7) Periodically check the rubber seal for premature wear. 8) Periodically clean the rubber with a soft moist cloth and ensure no objects such as dirt, hair, or sand are on the rubber seal ring. Do NOT use any oily solvent or chemicals for cleaning.
  • Page 31 Transfers do not qualify for warranty protection. ECOXGEAR reserves the right to replace any out-of-stock or discontinued product with a comparable product. Discontinued products may not be available for warranty replacement. Any contents are NOT covered by the limited manufacturer’s warranty.
