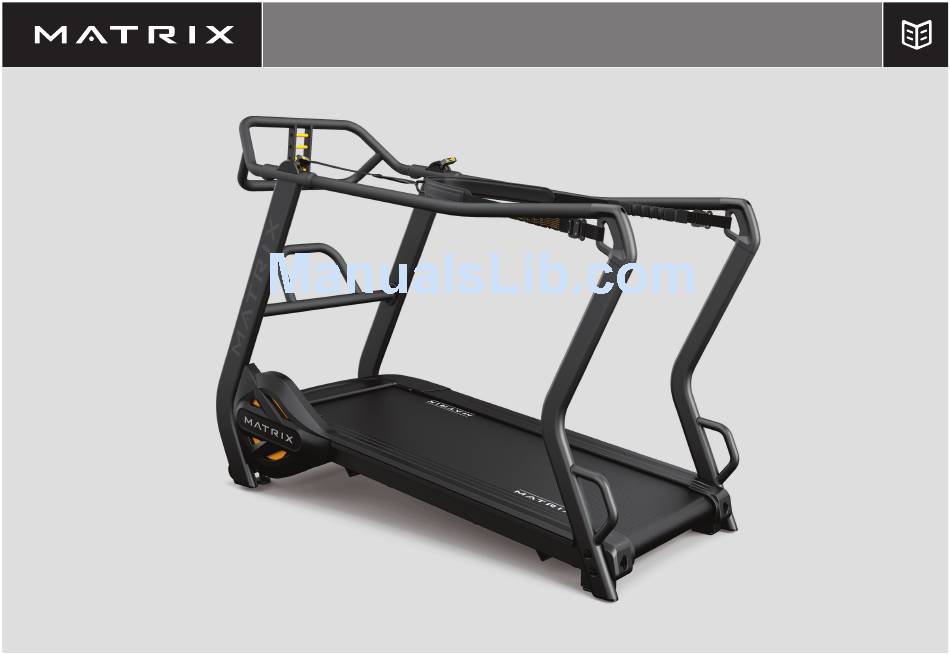

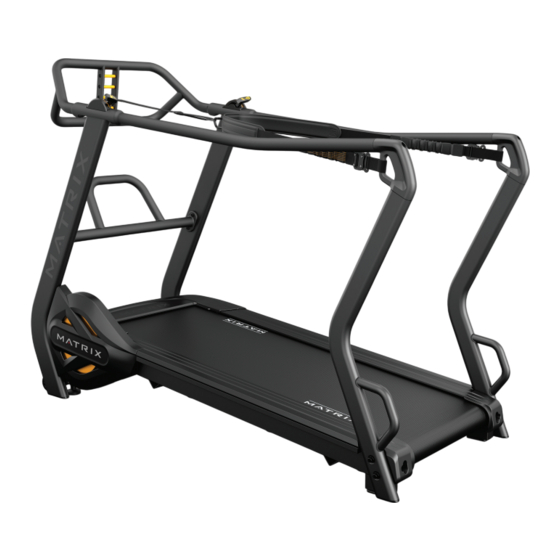

- Page 1 T-DPT / T-DPT-02...
- Page 2 ENGLISH DEUTSCH NEDERALANDS DANSK FRANÇAIS ESPAÑOL ITALIANO ΕΛΛΗΝΙΚΆ POLSKI PORTUGUÊS...
- Page 3 ความช ่ ว ยเหล ื อ อ ื ่ น ๆ โปรดต ิ ด ต ่ อ ไปย ั ง ข ้ อ ม ู ล ต ิ ด ต ่ อ Matrix ท ี ่ ใ ห ้ ไ ว...
- Page 4 NETHERLANDS (BELGIUM, DENMARK, LUXEMBOURG) UNITED ARAB EMIRATES Johnson Health Tech Brasil Johnson Health Tech (HK) Limited Matrix Fitness / Johnson Health Tech. Netherlands Johnson Health Tech. UAE Estrada Municipal, 200 – mód 14 e 15 – gleba 3 Room 1501-1502, Aitken Vanson Centre,...
-
Page 5: Important Precautions
IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS • When using a treadmill, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions. •... -
Page 6: Serial Number Location
F 1 Sled Bar F 1 Handlebar Set F 1 Harness F 1 Hardware Kit S-DRIVE PERFORMANCE TRAINER MODEL NAME: F 1 Bottle of Silicone Lubricant T-DPT-02: * Use the information above when calling for service. F 1 S-Drive Console... - Page 7 Note: There are no screws holding on the motor cover. Bolt Flat Washer Note: MODELS MODELS Do not fully tighten hardware until the end of step 5. Step 2 Torque Value: 78.4 Nm / 57.8 ft-lb T-DPT-02: Remove battery cover and insert 4 D batteries...
- Page 8 Red Hardware Bags (x2) White Hardware Bag Description Description Bolt Bolt Note: Note: Do not fully tighten hardware Do not fully tighten hardware MODELS MODELS until the end of step 5. until the end of step 5. Step 3 Torque Value: Step 4 Torque Value: 78.4 Nm / 57.8 ft-lb 39.2 Nm / 28.9 ft-lb...
- Page 9 Bolt Bolt CABLE (2) on the MAIN FRAME. Flat Washer Note: Bolt B. Repeat on other side. T-DPT Step 5 Torque Value: MODELS Note: C. Completely tighten hardware from 39.2 Nm / 28.9 ft-lb steps 2–5 according to the Torque Step 5 Torque Value: Values specified in each step.
- Page 10 Yellow Hardware Bag Description Screw Bolt (T-DPT-02 only) T-DPT T-DPT Connect cables T-DPT T-DPT...
- Page 11 ASSEMBLY Note: Check that all harness connections are secure before use COMPLETE!
-
Page 12: Before You Begin
BEFORE YOU BEGIN TREADMILL LOCATION Place the treadmill on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate your treadmill in an area with cool temperatures and low humidity. Please leave a clear zone behind the treadmill that is at least the width of the treadmill and at least 79”... - Page 13 LEVELING THE EQUIPMENT It is extremely important that the levelers are correctly adjusted for proper operation. An unbalanced treadmill may cause belt misalignment or other issues. Use of a level is recommended. Once you have placed the treadmill where you intend to use it, raise or lower one or both of the adjustable levelers located on the bottom-front of the frame.
- Page 14 CONSOLE AND ADJUSTABLE SUPPORT HARNESS FUNCTION T-DPT ADJUSTING THE S-DRIVE CONSOLE MOUNT Horizontal Adjustment — Tilt the console up or down as needed. Vertical Adjustment — Rotate the console left or right as needed. SUPPORT HARNESS STRAP HOOK When performing sled pushes, always hang the adjustable harness strap on the strap hook.
- Page 15 T-DPT Manual Interval BACKLIT LCD Displays Speed Time, Distance, Goals Calories, Heart Rate, Pace, Speed, Speed Graph Sprint 8 (Calories and heart rate will display with use of non-coded heart rate strap only) Challenge Profile Options MENU / BACK DISTANCE QUICK KEY...
-
Page 16: Manager Mode
1. QUICK START – Begin running. Console will power up within a few weight) when wearing a HR strap to more accurately calculate calories burned. seconds and displays current user distance, time, and pace. T-DPT 2. MANUAL - Press menu button, select manual and press OPTION enter to confirm. -
Page 17: Product Specifications
Prior to wearing the wireless chest transmitter on your chest, moisten the two rubber * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is electrodes with water. Center the chest strap just below the breast or pectoral muscles, the ADA recommended clearance width for individuals in wheelchairs. -
Page 18: Maintenance Schedule
RUNNING any reason. They contain important information. If unreadable DECK or missing, contact your MATRIX dealer for a replacement. 4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your liability to a minimum. - Page 20 T-DPT / T-DPT-02 Part # 1000384836 © 2017 Johnson Health Tech Rev 1.3 A...
