2. OPERATION

1

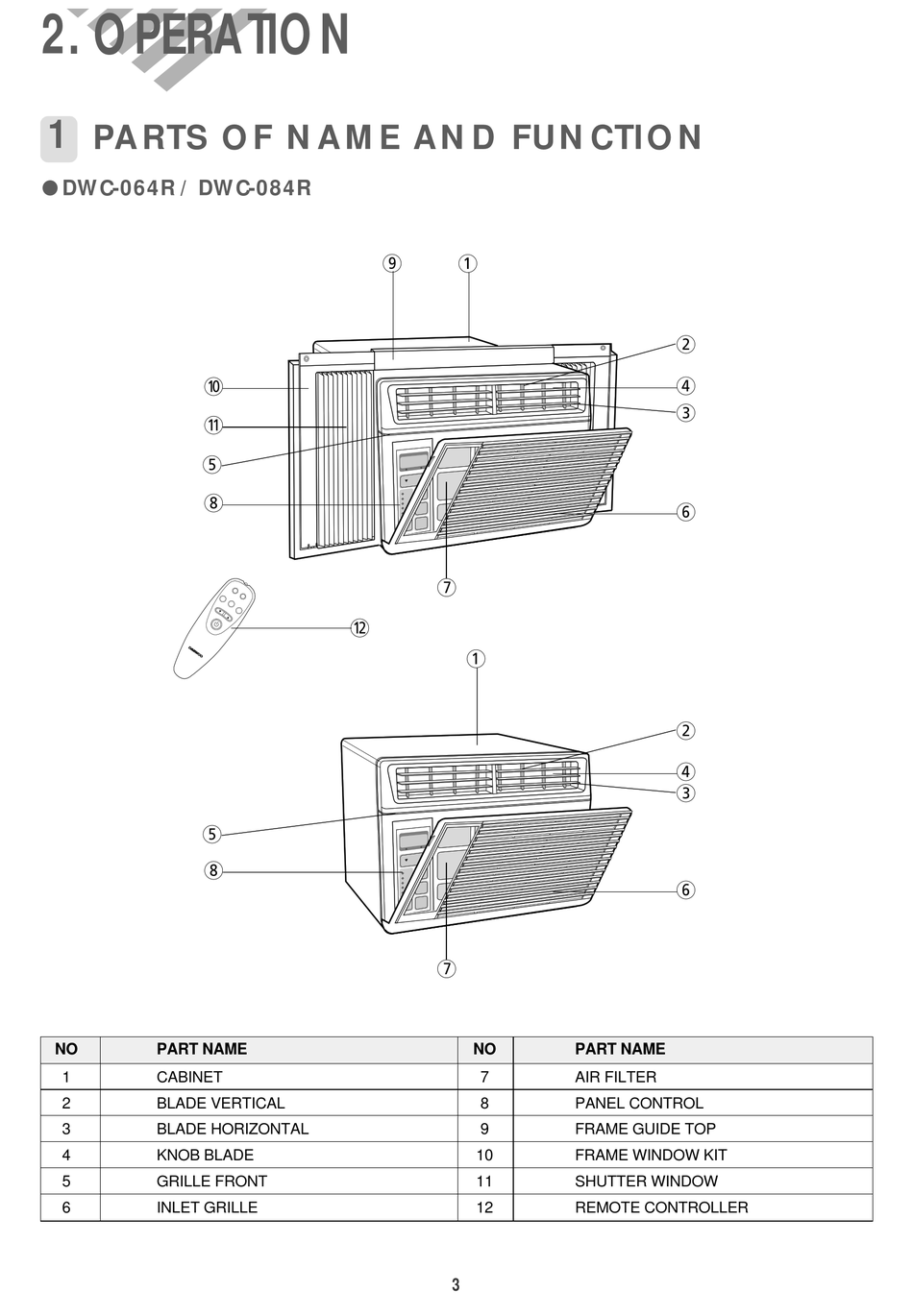

PARTS OF NAME AND FUNCTION
DWC-064R / DWC-084R
0
q
5
8
5
8
NO PART NAME
1 CABINET
2 BLADE VERTICAL
3 BLADE HORIZONTAL
4 KNOB BLADE
5 GRILLE FRONT
6 INLET GRILLE
9 1
7
w
1
7
NO
7
8
9
10
11
12
3
2
4
3
6
2
4
3
6
PART NAME
AIR FILTER
PANEL CONTROL
FRAME GUIDE TOP
FRAME WINDOW KIT
SHUTTER WINDOW
REMOTE CONTROLLER
