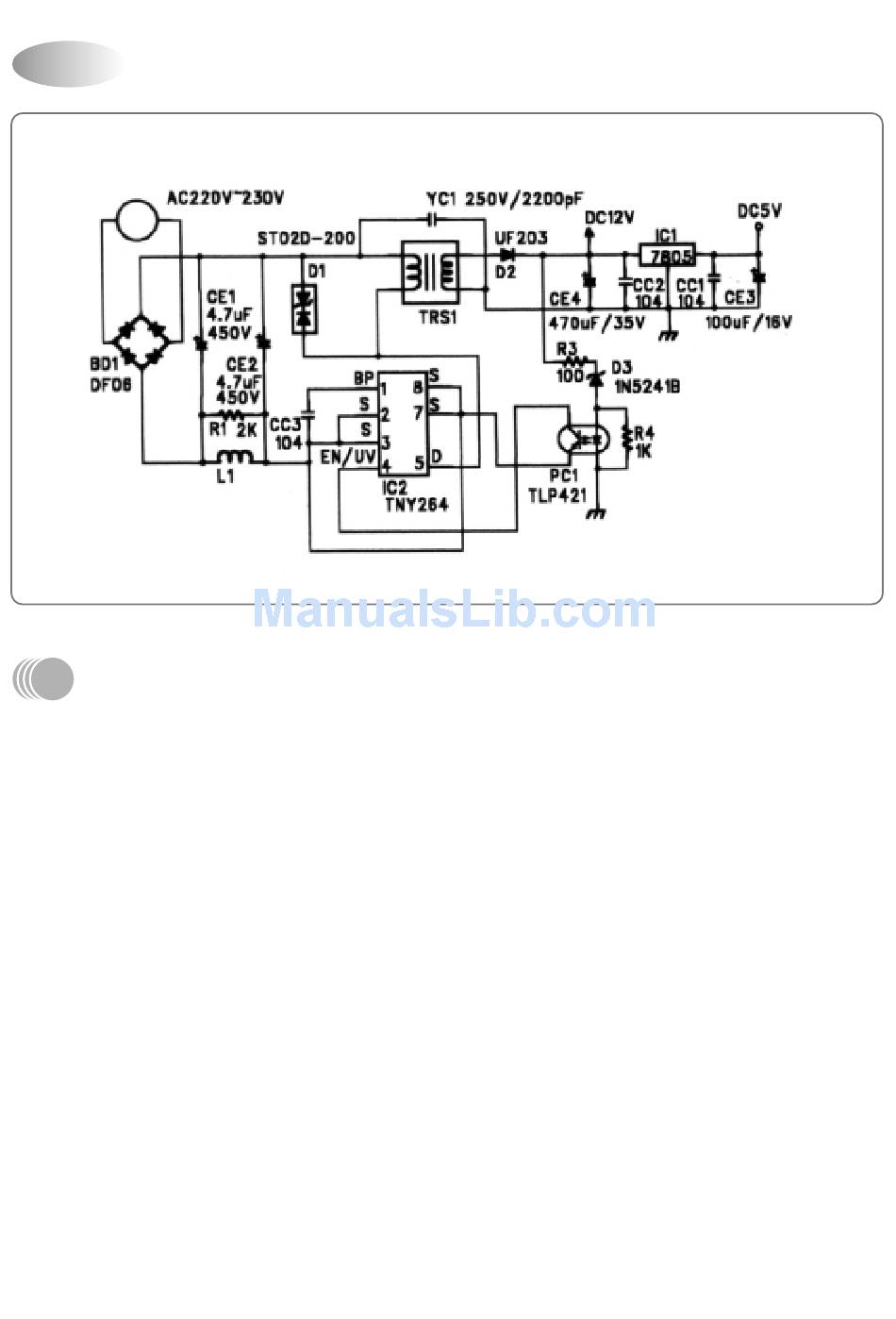

Power Supply(1)
DESCRIPTION
DC Power Supply in circuit needs +12V and +5V. +12V is used for Compressor Driving Relay, Fan Motor
Driving Relay, Buzzer Driving, Swing Motor Driving Relay and LED Display.
DC Power, 12V, is supplying by switching performance of IC2.
And, DC 5V is regulated by IC1.
