Summary of Contents for MSA ALTAIR 2X

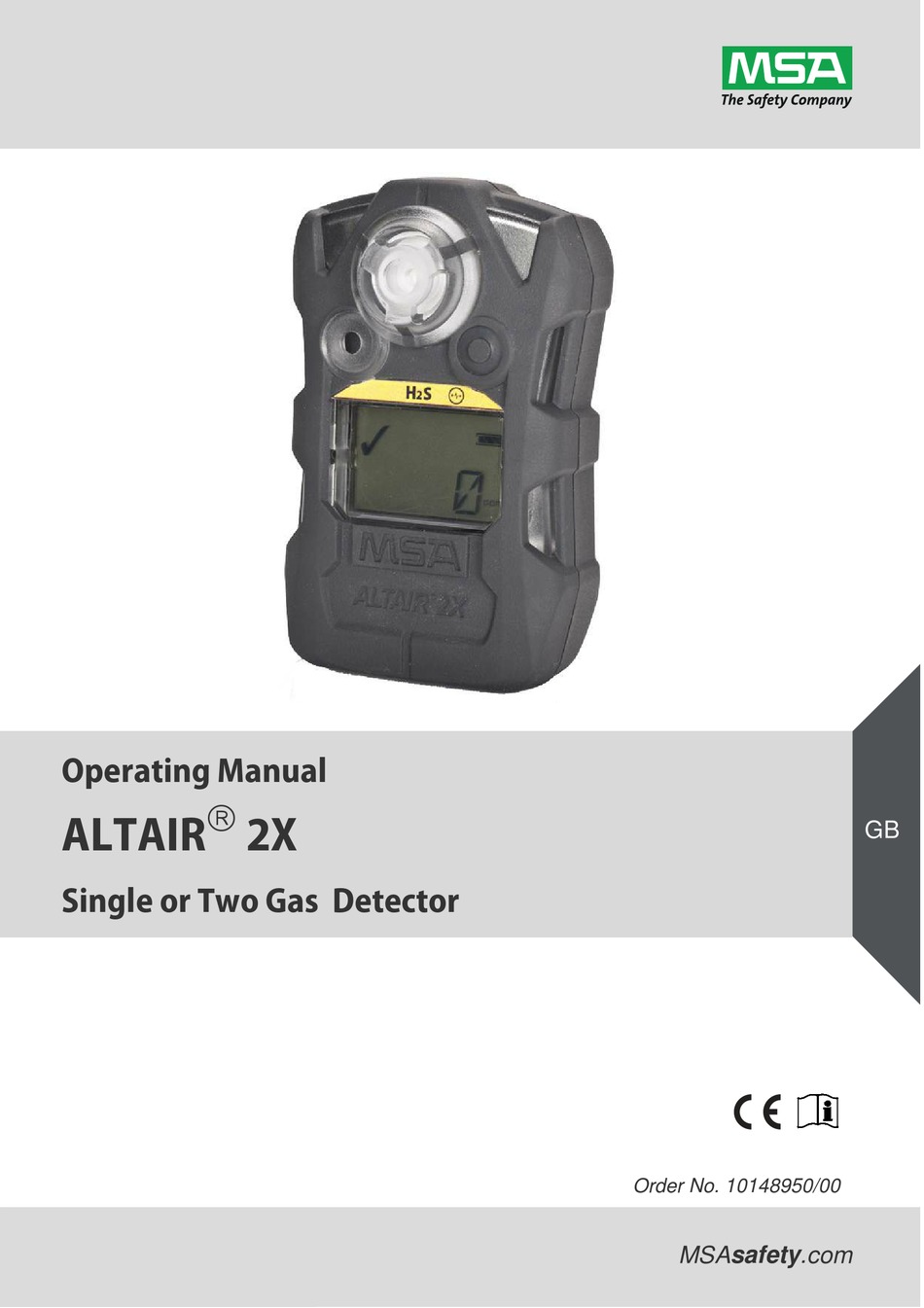

- Page 1 Operating Manual ALTAIR Single or Two Gas Detector Order No. 10148950/00 MSAsafety.com...
- Page 2 © MINE SAFETY APPLIANCES COMPANY 2014 - All Rights Reserved This manual is available on the Internet at: www.msasafety.com Manufactured by MSA NORTH AMERICA 1000 Cranberry Woods Drive, Cranberry Township, PA 16066...
-
Page 3: Declaration Of Conformity
Declaration of Conformity Declaration of Conformity The manufacturer or the European Authorized Representative: MSA AUER GmbH Thiemannstrasse 1 D-12059 Berlin declares that the product ALTAIR 2X based on the EC-Type Examination Certificate : FTZU 13 ATEX 0200 X complies with the ATEX directive 94/9/EC, Annex III. Quality Assurance Notifica- tion complying with Annex IV of the ATEX Directive 94/9/EC has been issued by INERIS, Notified Body number: 0080. -
Page 4: Table Of Contents
Function Checks Before Use ............25 Duration of Use ................29 Monitoring Gas Concentration ............31 Changing Alarm Setpoints ............... 33 Displaying Device Data ..............34 3.10 IR mode ................... 35 3.11 Turning OFF the Device ..............36 3.12 Data Logging ................... 36 ALTAIR 2X... - Page 5 Marking, Certificates and Approvals According to the Directive 94/9/EC (ATEX)........53 Marking, Certificates and Approvals According to IECEx ....54 Ordering Information ................55 Calibration Gas Cylinders ..............55 Replacement Parts and Accessories ..........56 Sensor Replacement Kits ..............57 ALTAIR 2X...
-
Page 6: Safety Regulations
Safety Regulations Safety Regulations Correct Use The ALTAIR 2X gas detector, hereafter referred to as device, is intended for use by trained and qualified personnel. It is designed to be used when performing a hazard assessment to: Assess potential worker exposure to toxic gases and vapours. -
Page 7: Liability Information
Safety Regulations Liability Information MSA accepts no liability in cases where the product has been used inappropri- ately or not as intended. The selection and use of this product must be under the direction of a qualified safety professional who has carefully evaluated the specific hazards of the jobsite where it will be used and who is completely familiar with the product and its limitations. - Page 8 Please protect yourself and others by following them. We encourage our customers to write or call regarding this equipment prior to use or for any additional information relative to use or service. ALTAIR 2X...
-
Page 9: Warranty
Replacement equipment and/or parts will be provided at no cost to Purchaser, F.O.B. Seller's Plant. Failure of Seller to successfully replace any noncon- forming equipment or parts shall not cause the remedy established hereby to fail of its essential purpose. ALTAIR 2X... - Page 10 This exclusion is applicable to claims for breach of warranty, tortious conduct or any other cause of action against seller. ALTAIR 2X...
-
Page 11: Description
Description Description Overview Fig. 1 Device view Alarm LED (red) Button Infrared port Display with backlight Sensor cover Gas type Safe LED (green) Audible alarm transmitter ALTAIR 2X... - Page 12 Hydrogen sulfide/sulfur dioxide (H S/SO The alarm levels for the individual gases are factory-set and and cannot be changed during operation. Changes can only be made through MSA Link soft- ware. Short Term Exposure Limits (STEL) The STEL alarm is calculated over a 15 minute exposure.
- Page 13 12 hour exposure of 100 ppm: (12 hours x 100 ppm) = 150 ppm 8 hours If the device is ON for less than 8 hours (480 minutes), the balance of the minute ppm values is set to zero. ALTAIR 2X...
-
Page 14: On-Screen Indicators
PEAK Symbol – Indicates a PEAK reading or high alarm Minimum – Indicates a minimum value or low alarm Short Term Exposure Limit (STEL) Symbol – Indicates a STEL alarm Time Weighted Average (TWA) Symbol – Indicates a TWA alarm ALTAIR 2X... -
Page 15: Sensor End Of Life Warning
The symbol will be continuously displayed. Sensor End of Life Alarm If a sensor fails two calibrations in a row, a sensor End of Life Alarm condition is present. The symbol will flash continuously. ALTAIR 2X... -
Page 16: Backlight
Settings Any changes of the device settings can only be carried out using the MSA Link™ software. Ensure that the latest version of the MSA Link software is used. The MSA Link application is available free on www.msasafety.com. -
Page 17: First Use
High alarm icon with high alarm setpoint STEL alarm icon with STEL alarm setpoint TWA alarm icon with TWA alarm setpoint Calibration gas settings (2) If the LastCalDate page is enabled, the display will show the last cal date of the installed sensor (DD-MMM-YY). ALTAIR 2X... - Page 18 Depending on individual instrument settings Gas Type Individual Alarm LEDS HORN VIBE indications disabled? Alarm Info Pages (Low, High, STEL, TWA)* * Depending on individual Calibration Gas instrument setup Info Pages* Last Cal Date* DD-MMM-YY Startup continued Fig. 3 Startup ALTAIR 2X...
- Page 19 Failure to follow this warning can result in serious personal injury or death. Startup Sensor Warmup Screen WAIT XCell Pulse Technology? Pulse Check Start Screen PULSE Is FAS Enabled? Pulse Check Fig. 4 Startup, continued ALTAIR 2X...
- Page 20 Exhale into the device. Hold device close to mouth (5 cm/2 inches distance) and blow forcefully onto the sensor opening for 2 seconds. The results of the test are then displayed (PASS or ERR). ALTAIR 2X...
- Page 21 If the safe LED (green) option is enabled, the green LEDs will flash periodi- cally. To clean the sensor inlet before or after a flow test, only use approved cleaner described in section 7. (4) To bypass FAS, do press the button. The device continues the ON sequence. ALTAIR 2X...
- Page 22 Startup Fresh Air Setup Button Press? FAS Passed? PASS Button Press? Cal Due Fig. 5 FAS (Devices without XCell Pulse technology) ALTAIR 2X...
- Page 23 Startup Countdown to finalize Pulse Check Pulse Check pass? PASS Flow Check Button Press? enabled? Countdown to exhale FLOW Flow Check pass? BUMP PASS Button press? Cal Due Fig. 6 Bump test for devices with XCell Pulse technology ALTAIR 2X...
- Page 24 (5) If Calibration Due (CAL DUE) is enabled via MSA Link™ software (default is OFF): If calibration is due, CAL DUE will scroll across the display continuously. Press the button to proceed. A calibration is now necessary. If calibration is not due, CAL, the number of days, and DAYS will scroll across the display once before proceeding.
-
Page 25: Function Checks Before Use
The Confidence indicator must flash every 15 seconds after starting the device. This indicates the device is operating correctly. Verifying Alarms Verify that the audible, visual and vibrating alarms function. During the turn-on sequence, the alarms are briefly activated (function tests). See section 3.2 for details. ALTAIR 2X... - Page 26 Bump test frequency is often stipulated by national or corporate regulations; however, bump testing before each day's use is generally the accepted best safety practice and is therefore MSA's recommendation. This test quickly confirms that the gas sensors are functioning. Perform a full calibration periodically to ensure accuracy and immediately if the device fails the bump test.
- Page 27 0.25 l/min (5) Repeat the bump test if necessary. (6) If the bump test fails, calibrate the device ( Section 3.13). (7) Repeat the bump test after the calibration. ALTAIR 2X...
- Page 28 (2) Press the button again while PULSE? is displayed. (3) Follow the instructions in section 3.4 PageMenu Wait for gas being applied 0 ppm and gas reading reaching threshold Bump passed? PASS Button Press? Measurement Fig. 9 Bump Test for devices without XCell Pulse technology ALTAIR 2X...
-
Page 29: Duration Of Use
When the device goes into Low Battery Warning, the: battery life indicator flashes alarm sounds every 30 seconds alarm LEDs flash every 30 seconds device repeats this warning every 30 seconds and continues to operate until it is turned off or battery shutdown occurs. ALTAIR 2X... - Page 30 The alarm lights and the audible alarm can be silenced by pushing the button. When the device battery is running low, remove it from service and replace the battery. The alarm can be turned off by pressing the button. ALTAIR 2X...
-
Page 31: Monitoring Gas Concentration
The device displays the gas concentration in parts per million (ppm) or mg/m³ on the measuring page. The device remains on this page until another page is selected or the device is turned OFF. There are four alarm setpoints in the device: High Alarm Low Alarm STEL Alarm TWA Alarm ALTAIR 2X... - Page 32 The high alarm is latching and will not reset when gas concentration falls below the HIGH setpoint. To reset the alarm, push the button after the gas level falls below the setpoint. Refer to the device during turn ON for factory-set alarm points. ALTAIR 2X...
-
Page 33: Changing Alarm Setpoints
The TWA alarm is latching and will not reset. The TWA value can be cleared. ( Fig. 10 for details.) Refer to the device during test mode for factory-set alarm setpoints. Changing Alarm Setpoints Alarm setpoints can only be changed using the MSA Link™ Software. ALTAIR 2X... -
Page 34: Displaying Device Data
Time Weighted Average The TWA reading calculated since power-ON displays. When this page is displayed, press the button to clear. CLR is displayed Value is deleted TWA value is automatically reset to zero when the device is turned ON. ALTAIR 2X... -
Page 35: 3.10 Ir Mode
Fig. 10 Displaying device data 3.10 IR mode A button press (more than one second) in measurement mode will activate IR mode for 1 minute. If no IR communications are detected, the device will exit this mode automatically. ALTAIR 2X... -
Page 36: 3.11 Turning Off The Device
(1) Switch on PC and align device to the IR interface of the PC. (2) Press the button (for more than 1 second) on the device to enter IR mode. (3) Start the MSA Link™ Software on the PC and start the connection. ALTAIR 2X... -
Page 37: 3.13 Calibration
MSA recommends a calibration interval of 2 months for devices with XCell Pulse technology and a maximum 6 months for devices with standard XCell sensors. - Page 38 An incorrect calibration can lead to serious personal injury or death. The current gas reading, hour glass and calibration gas cylinder icon are displayed. If calibration is successful PASS is displayed and the device returns to normal operating mode. ALTAIR 2X...
- Page 39 PASS is displayed. Otherwise (ERR), the device must be taken out of use. If the calibration is successful, a is displayed for 24 hours. If the safe LED (green) option is enabled, the green LEDs will flash periodically. ALTAIR 2X...
- Page 40 Page Menu Measurement ZERO ? Button Press? 0 ppm Zero Passed? PASS Button Press Span Calibration Measurement Fig. 11 Zero calibration ALTAIR 2X...
- Page 41 Zero Calibration SPAN? Button Press? 20 ppm Span passed? PASS XCell Pulse Button Press? Technology? Pulse Check after Calibration Fig. 12 Span calibration ALTAIR 2X...
-
Page 42: Using The Device With A Galaxy Gx2 Automated Test System
(1) Press the button (for more than 1 second) on the device to enter IR mode. The device pages begin to display. Place the device into the suitable GALAXY GX2 test stand. For further information see the operating manual for the GALAXY GX2 Automated Test System. ALTAIR 2X... -
Page 43: Maintenance
Replace battery turn ON If the error occurs during the warranty period, please contact the MSA customer service. Other- wise, the device must be put out of operation. Some errors will show an additional error code number which should be noted and be available when contacting MSA. -
Page 44: Replacing The Battery
Be sure to observe proper polarity on the battery, as shown on the battery holder. (4) Ensure the interface and connectors for the display are clean and free of dirt for proper operation. If necessary, the display connectors can be cleaned with a soft, lint free cloth. ALTAIR 2X... -
Page 45: Replacing The Sensor
After replacing the battery or if the device was without power for some time, it is necessary to set time and date again using the MSA Link software. When switching ON the device for the first time and after a battery replacement the device will initialize the battery. -
Page 46: Cleaning
When not in use, store the device in a safe, dry place between 0 °C and 40 °C. After storage, always recheck device calibration before use. Scope of Delivery Pack the device in its original shipping container with suitable padding. If the original container is unavailable, an equivalent container may be substituted. ALTAIR 2X... -
Page 47: Technical Data
Atmospheric 80 to 120 kPa (11.6 to 17.4 PSIA) Pressure Range Humidity range 15 % to 90 % relative humidity, non-condensing 5 % to 95 % relative humidity intermittent Dust and spray IP 67 protection ALTAIR 2X... -
Page 48: Sensor Data
50 ppm 10 ppm 75 ppm 35 ppm 25 ppm Ammonia Nitrogen 2.5 ppm 5.0 ppm 1.0 ppm 47.5 ppm 5.0 ppm 2.5 ppm Dioxide Sulphur 2.0 ppm 5.0 ppm 1.0 ppm 17.5 ppm 5.0 ppm 2.0 ppm Dioxide ALTAIR 2X... - Page 49 +/-3 ppm or 20% of Dioxide reading. whichever is reading, whichever is greater greater Sulphur 0-20.0 ppm 0.1 ppm +/-2 ppm or 10% of +/-3 ppm or 20% of Dioxide reading, whichever is reading, whichever is greater greater ALTAIR 2X...
- Page 50 Chlorine <30 s Fresh Air 0 ppm 10 ppm Ammonia <40 s Fresh Air 0 ppm 25 ppm Nitrogen <15 s Fresh Air 0 ppm 10 ppm Dioxide Sulphur <15 s Fresh Air 0 ppm 10 ppm Dioxide ALTAIR 2X...
-
Page 51: Data Logging Specifications
Data Logging Specifications Session Number of stored events 50 (most recent occurrences) data log Data transmission Via MSA infrared adapter on a PC ® method using MSA Link™ software Event log information Alarm - Alarm Type - Alarm Value -... -
Page 52: Certification
Class II, Groups E, F, G Class III Ambient temperature: -40 °C to +60 °C; T4 Canada Exia Class I, Groups A, B, C, D Class II, Groups E, F, G Class III Ambient temperature: -40 °C to +60 °C; T4 ALTAIR 2X... -
Page 53: Marking, Certificates And Approvals According To The Directive 94/9/Ec (Atex)
According to the Directive 94/9/EC (ATEX) Manufacturer: Mine Safety Appliances Company 1000 Cranberry Woods Drive Cranberry Township, PA 16066 USA Product: ALTAIR 2X EC-Type Examination Certifi- FTZU 13 ATEX 0200 X cate: Type of protection: EN 60079-0: 2012, EN 60079-11: 2012,... -
Page 54: Marking, Certificates And Approvals According To Iecex
Certification Marking, Certificates and Approvals According to IECEx Manufacturer: Mine Safety Appliances Company 1000 Cranberry Woods Drive Cranberry Township, PA 16066 USA Product: ALTAIR 2X IECEx-Type Examination IECEx FTZU 13.0025X Certificate: IEC 60079-0: 2011, Type of protection: IEC 60079-11: 2011... -
Page 55: Ordering Information
, 58 L 808977 Cylinder, 10 ppm SO , 34 L 711070 10079806 Cylinder, 10 ppm SO , 58 L 808978 Cylinder, 25 ppm NH , 34 L 711078 10079807 Cylinder, 25 ppm NH , 58 L 814866 ALTAIR 2X... -
Page 56: Replacement Parts And Accessories
Repair Kit (Suspender clip, clip screw, adhesive strip, 4 case 10154518 case screws, horn/sensor gasket, battery foam) MSA Link Software CD-Rom 10088099 MSA Link IR Dongle with USB connector 10082834 Horn and Sensor Gasket 10152337-SP 10155203-SP Battery (Pack of 8) -
Page 57: Sensor Replacement Kits
10152604 S-LC/CO low power, replacement kit, XCell sensor 10152605 S-LC/SO low power, replacement kit, XCell sensor 10152607 S-PLS replacement kit, XCell sensor 10121227 low power, replacement kit, XCell sensor 10152601 /CO low power, replacement kit, XCell sensor 10152606 ALTAIR 2X... - Page 58 No. 8 Rui En Lane, Xingpu Road 51 Ayer Rajah Crescent 30-16, Nishiwaseda 3-chome CEP 09990-901 Diadema Suzhou Industrial Park Singapore 139948 Shinjuku-ku Sao Paulo- Brazil (Brasil) Jiangsu For further local MSA contacts please go to our web site www.MSAsafety.com. MSAsafety.com...
Need help?
Do you have a question about the ALTAIR 2X and is the answer not in the manual?
Questions and answers

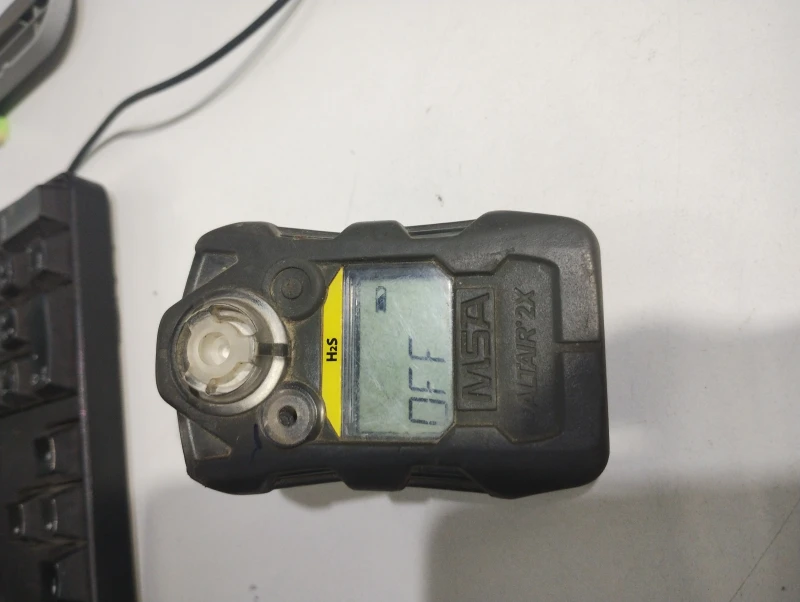

Display always shows "OFF". No other response
