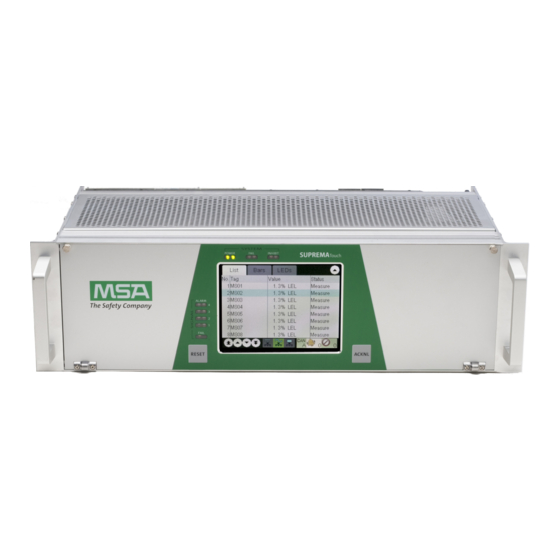

- Page 1 Operating Manual SUPREMA Calibration Software for Fire and Gas Warning Units Order No.: 10154656/01 MSAsafety.com...
- Page 2 MSA Europe GmbH Schlüsselstrasse 12 8645 Rapperswil-Jona Switzerland info.ch@MSAsafety.com www.MSAsafety.com © MSA 2017 All rights reserved...
-
Page 3: Table Of Contents
Information..............SUPREMA Calibration... -
Page 4: Safety Regulations
MSA or authorised persons. Liability Information MSA accepts no liability in cases where the product has been used inappropriately or not as intended. The selection and use of the product are the exclusive responsibility of the individual operator. -
Page 5: Safety And Precautionary Measures
Only applicable for firmware versions lower than 3.02.01: No calibration data from calibrations carried out directly on the SUPREMA are stored in the data- base used by SUPREMA Calibration. This is why no reports are available for calibrations and First calibrations carried out directly on the SUPREMA. -
Page 6: Hardware And System Requirements
The following software has to be installed to use SUPREMA Calibration: • SUPREMA Manager, version 2.4.0.x or higher To use SUPREMA Calibration, a database has to be created with SUPREMA Manager.This data- base must include the dataset for the SUPREMA to be calibrated. SUPREMA Calibration... -
Page 7: Installation
Administration rights are required for installation. Installation Process Insert data carrier. Run the setup file on the data carrier to install both MSA-App and SUPREMA Calibration. Follow the instructions of the installation wizard. Start the SUPREMA App on the PC. -
Page 8: Msa-App
MSA-App MSA-App SUPREMA Calibration and other software programs from MSA run as plug-ins inside the host application MSA-App. When SUPREMA Calibration is installed, MSA-App is part of this installa- tion. The screen of the MSA-App has the following layout: Fig. 1... - Page 9 MSA-App Choose SUPREMA Calibration from the list of plug-ins. The plug-in version is shown. Fig. 2 Choosing a plug-in Activate the chosen plug-in with the Start plug-in button The chosen plug-in is active. Every window with a Close button has to be closed with this button to continue.
- Page 10 The menu has three entries, the first one is specific to the active plug-in and appears after a plug- in has been chosen, in case of SUPREMA Calibration, it is Settings (see chapter 6 "Settings"). The settings and the language for the MSA-App can be changed with Extra.
-
Page 11: Overview
Local SUPREMA dataset Function nodes SUPREMA connection Content area Markings and Symbols The status bar colours are shown using SUPREMA Manager screenshots, for SUPREMA Calibration the same colours are used. Status Bar Colors Fig. 5 Information: blue Fig. 6 Status: green Fig. -
Page 12: Local Suprema Dataset
(see section 7 "Data Management"). SUPREMA Connection To establish a connection between SUPREMA Calibration and SUPREMA, click on Connect . The connection settings set according to section 7 "Data Management" or section 6.1 "General Communication Settings"... -
Page 13: Synchronise
Not applicable for firmware versions lower than 3.02.01: If a user with modification authoriza- tion is logged in and there has not been any communication between the SUPREMA and the SUPREMA Calibration system for more than 5 minutes, password authorization will automatically expire. -
Page 14: Settings
SUPREMA Calibration uses the database file (.sdf) created with SUPREMA Manager. When starting SUPREMA Calibration for the first time, it is necessary to select the location of the data- base used by SUPREMA Manager to read and store data. Before calibrations can be carried out, an existing database file path must be chosen. -
Page 15: Data Management
Data Management Data Management At least one dataset is required for SUPREMA Calibration. As long as no Local SUPREMA dataset has been entered, the button Change is marked red. In this case a new SUPREMA dataset has to be added using SUPREMA Manager. -
Page 16: Synchronise Data
Use SUPREMA Manager to download the complete calibration logbook data. This way, data from calibrations carried out directly on the SUPREMA will be entered into the database used by SUPREMA Calibration. For firmware versions lower than 3.02.01 no calibration logbook data can be synchro- nized. -
Page 17: Only For Firmware Versions Lower Than 3.02.01: Configurations
Move measuring points to or from a group by double-clicking on the respective line or move measuring points using the arrow buttons. Changes to the measuring points of a group are saved with Apply the changes or ignored with Cancel editing. A measuring point can belong to several groups. Finish with Close. SUPREMA Calibration... -
Page 18: Calibration
WARNING! No calibration data from calibrations carried out directly on the SUPREMA are stored in the data- base used by SUPREMA Calibration. Because the calculation of the relative sensitivity is based on the most recent First calibration before the calibration is carried out, incorrect values could result from a First calibration carried out directly on the SUPREMA. - Page 19 No first calibration data available If applicable, choose an option to continue. Start calibration with the Start button. If for the selected measuring point no first calibration is available, Zero point adjustment is not available and a warning is shown. SUPREMA Calibration...
- Page 20 Calibration Next, the calibration procedure is selected and calibration durations can be entered. The following screen shows a Single calibration, the screens differ slightly for the different calibra- tions. Fig. 22 Calibration procedure SUPREMA Calibration...
-
Page 21: Calibration Procedures
Ua zero + 200mV lowest stable signal window Ua zero Taking over Taking over Zero gas value Test gas value Measuring Measuring mode Calibration mode mode Fig. 23 One-man calibration (SUPREMA) SUPREMA Calibration... - Page 22 Calibration One-Man Calibration (SUPREMA Calibration, for firmware versions below 3.02.01) At the sensor Start the calibration with Start calibration. The Progress field shows: • Starting… Apply Zero Gas. Wait at least as long as configured The Progress field shows: under Zero gas time before •...
- Page 23 • Purge gas stopped • Confirm Click on Confirm. Confirm the calibration values with Accept or dismiss the calibration with Reject. Fig. 25 Two-man calibration The times necessary for Calibration Durations are different for one-man or two-man calibration. SUPREMA Calibration...
- Page 24 If more than 8 senors are selected for calibration, a message box warns about the risk of inhibiting sensors for a longer period of time. MSA recommends to avoid using sleep mode or screen savers and to avoid running any other programs and applications while running SUPREMA Calibration.
- Page 25 For each sensor a Start calibration button is displayed to start the calibration for that sensor (except for Bridge current adjustment or when calibrating only one measuring point). If the Cancel button is pressed, already finished calibrations are not affected. Fig. 28 Calibration progress SUPREMA Calibration...
- Page 26 The Progress field shows: • Zero Gas confirmed • Apply test gas • Test Gas applied • Confirm test gas • If Test gas time configured >0: Test gas time x s (counts the configured time down to 0) SUPREMA Calibration...
- Page 27 If Purge gas time configured >0: Purge gas time x s (counts the configured time down to 0) • If Purge gas time configured = 0:Stop purge gas Fig. 34 Stop purge gas Click on Stop if applicable. The Progress field shows: • Purge gas stopped • Confirm Fig. 35 Confirm SUPREMA Calibration...
- Page 28 If the data does not match, the calibration has to be repeated. Status OK (green checkmark) confirms a valid calibration.. Warning shows that the calibration is valid, but with a warning. Error signals an invalid calibration. Calibration is not started yet, is canceled or the values are rejected. SUPREMA Calibration...
- Page 29 Calibration Fig. 37 Calibration results The calibration report for the calibration just finished can now be shown by clicking on Calibration Report. Fig. 38 Calibration report SUPREMA Calibration...
-
Page 30: Troubleshooting
If no first calibration data is stored for measuring points to be calibrated, the following message box appears: Fig. 39 No first calibration data If applicable, choose an option to continue. Select Calibration Procedure Fig. 40 Select calibration procedure SUPREMA Calibration... -
Page 31: Group
The only difference of calibrating measuring points in Group compared to Single is the selection of measuring points to be calibrated: Choose the group of measuring points to be calibrated from the drop-down list. Fig. 41 Group calibration SUPREMA Calibration... -
Page 32: First Calibration With Pre-Adjustment
SUPREMA! WARNING! As soon as a first calibration is started, all existing calibration data for a measuring point is deleted. It is not possible to save the data by interrupting or canceling a first calibration. SUPREMA Calibration... -
Page 33: First Calibration Without Pre-Adjustment
SUPREMA. WARNING! If the cancel button is pressed, only the measuring points where the calibration is not finished yet will be affected. For them the calibration data in the SUPREMA remain unchanged. SUPREMA Calibration... -
Page 34: Bridge Current Adjustment
It is not possible to cancel a running bridge current adjustment. Fig. 43 IBR adjustment Select measuring points for adjustment (see chapter 10.1 "General Calibration Description"). Adjust bridge current if necessary, confirm with Apply. Continue with Continue. Fig. 44 Calibration data will be erased SUPREMA Calibration... - Page 35 Starting... • Preparing bridge current adjustment • Bridge current adjustment running • Accepted • Finished Fig. 45 IBR adjustment The calibration report for the IBR adjustment just finished can now be received by clicking on Cali- bration Report. SUPREMA Calibration...
-
Page 36: Reports
For firmware versions lower than 3.02.01: No calibration data from calibrations carried out directly on the SUPREMA are stored in the data- base used by SUPREMA Calibration. This is why no reports are available for calibrations and First calibrations carried out directly on the SUPREMA. - Page 37 Signal deviation for Ux extrapolated over the complete measuring range. norm. Sensitivity relative to sensitivity measured in first calibration. Relative sensitivity Can be used as an indication for the sensor lifetime. The report can be printed and exported when clicking on the following buttons: SUPREMA Calibration...
-
Page 38: Status Report
11.2 Status Report For this report the current SUPREMA measuring point status is received from the SUPREMA and shown in table form. This report can be used to document the state of the SUPREMA measuring points. Fig. 48 Status report SUPREMA Calibration... -
Page 39: Ordering Information
Ordering Information Ordering Information Description Part No. SUPREMA Calibration Instr. Manual, English 10154656 SUPREMA Touch CD ROM - SUPREMA Calibration 10159747 SUPREMA Manager Instr. Manual, English 10154655 SUPREMA Touch CD ROM - SUPREMA Manager 10121868 SUPREMA Touch CD-ROM - Manuals 10121867 SUPREMA Touch Instr. - Page 40 For local MSA contacts, please visit us at MSAsafety.com Because every life has a purpose...
